Midea 36,000 BTU INDOOR HIGH WALL UNIT DLFSHAH36XAK

Model: DLFSHAH36XAK

Save Part Not Listed?
product name

...
...
1
AIR FILTER MID-12100204001320
...
2
AIR FRESHENING FILTER MID-12100204000685
...
3
AIR OUTLET ASSEMBLY MID-12122000013381
...
4
BEARING BASE MID-12622000000006
...
5
BEARING HOLDER MID-12122000000350
...
6
BRACKET OF REMOTE CONTROLLER MID-12117000002113
...
7
BRUSHLESS DC MOTOR MID-11002015008646
...
8
CHASSIS ASSEMBLY MID-12122000013368
...
9
COPPER NUT MID-15500406000010
...
10
COPPER NUT MID-15500406000003
...
11
COVER OF ELECTRICAL EQUIPMENT MID-12122000013371
...
12
COVER OF ELECTRONIC CONTROL BOX MID-12122000005040
...
13
CROSS FLOW FAN MID-12100102000256
...
14
DETECTION VALVE MID-15500209000002
...
15
DISPLAY BOARD SUBASSEMBLY MID-17122000007008
...
16
DISPLAY BOX SUBASSEMBLY MID-17222000028737
...
17
DRAIN HOSE MID-12100501000032
...
18
ELECTRONIC CONTROL BOX MID-12122000004617
...
19
ELECTRONIC CONTROL BOX SUBASSEMBLY (MID-AND LOW-END) MID-17222000A56748
...
20
EVAPORATOR ASSEMBLY MID-15822000A16161
...
21
FAN MOTOR COVER MID-12122000005475
...
22
FIXED CLAMP OF TEMPERATURE SENSOR MID-12122000024323
...
23
FRONT COVER OF CHASSIS(RIGHT) MID-12122000013359
...
24
HORIZONTAL LOUVER MID-12122000013364
...
25
INSTALLATION PLATE MID-12222000000029
...
26
LOUVER(ABOVE) MID-12122000013367
...
27
LOUVER(BELOW) MID-12122000013358
...
28

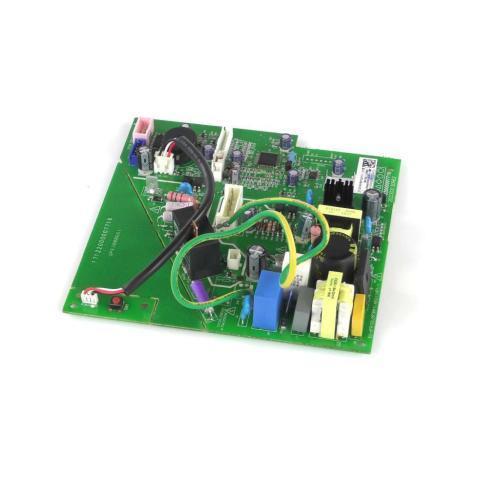

MAIN CONTROL BOARD SUBASSEMBLY MID-17122000021688
...
29
NETWORK MODULE CONTROL BOX MID-17210900000038
...
30
PANEL ASSEMBLY MID-12122000A50979
...
31
PANEL FRAME ASSEMBLY MID-12122000013365
...
32
PIPE CLAMP BOARD MID-12122000000460
...
33
PIPE TEMPERATURE SENSOR MID-11201007003447
...
34
REMOTE CONTROLLER MID-17317000A50574
...
35
ROOM TEMPERATURE SENSOR MID-11201007003425
...
36
SCREW CAP MID-12122000008215
...
37
STEPPER MOTOR MID-11002010000326
...
38
TERMINAL MID-17400401000006
