Midea 24-INCH BUILT-IN FULLY INTEGRATED DISHWASHER MDT24X2APR

Model: MDT24X2APR

Save Part Not Listed?
product name

...
...
1
ACCESSORY BAG MID-12976000009673
...
2
ADJUST FOOT MID-12176000009745
...
3
ADJUST POLE MID-12176000035359
...
4
AIR BREATHER ASSEMBLY TP MID-12176000003911
...
5
AIR BREATHER NUT MID-12176000A42031
...
6
BACK PIPE MID-12676000000126
...
7
BASE TRAY MID-12176000003059
...
8
BASE TRAY COVER MID-12176000003086
...
9
BASKET HANDLE FRONT+COVER(MIDEA LOGO, UPPER RACK) MID-12176000A42011
...
10
BASKET HANDLE FRONT+COVER(NO LOGO,LOWER RACK) MID-12176000A42028
...
11
BASKET HANDLE REAR MID-12176000025577
...
12
BLADE MID-12276000001316
...
13
BOX MID-12176000003834
...
14
BRACKET MID-12176000010421
...
15
BRACKET LEFT MID-12276000021051
...
16
BRACKET RIGHT MID-12276000021050
...
17
BRUSHLESS DC MOTOR MID-11002015001676
...
18
CAM MID-12176000008770
...
19
CONDENSER MID-12176000008632
...
20
CONTROL PANEL MID-12176000034945
...
21
CONTROL PANEL PATCH MID-12176000034158
...
22
CONTROL PANEL SHELL LEFT MID-12276000021053
...
23
CONTROL PANEL SHELL RIGHT MID-12276000021054
...
24
COVER MID-12176000003567
...
25
COVER MID-12176000003561
...
26
CUTLERY ASSEMBLY MID-12176000015683
...
27
CUTLERY BASKET MID-12176000013100
...
28
CYLINDRICAL FILTER MID-12176000003649
...
29
DISPENSER MID-MDK1
...
30
DISPLAY CRICUIT BOARD MID-17176000035463
...
31
DOOR BALANCE PULL MID-12976000000391
...
32

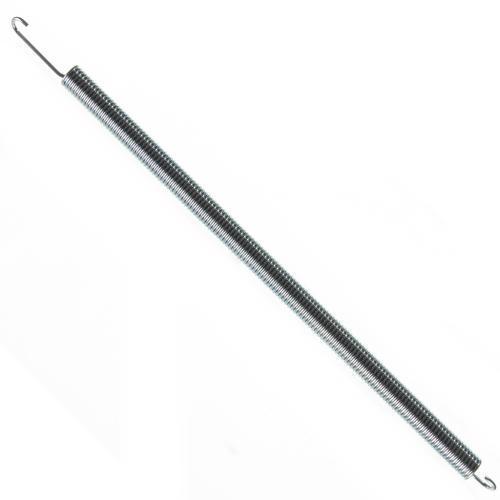

DOOR BALANCE SPRING MID-12976000000202
...
33
DOOR GEMEL ASSEMBLY (LEFT) MID-12276000001753
...
34
DOOR GEMEL ASSEMBLY (RIGHT) MID-12276000001787
...
35
DOOR LOCK HOOK MID-12276000002203
...
36
DOOR SWICTH ASSEMBLY MID-17476000012184
...
37
DRAIN HOSE MID-12676000000955
...
38
DRAIN HOSE MID-12676000000954
...
39
FAN ASSEMBLY MID-12176000002613
...
40
FILTER HANDLE MID-12176000A42035
...
41
FLIP TINE BLOCK MID-12176000A42018
...
42
FLOAT MID-12876000000050
...
43
FLOAT SEAT MID-12176000003496
...
44
GAS INLET PIPE ASSEMBLY MID-12176000003928
...
45
GUIDE PLATE BACKING ASSEMBLY MID-12176000003492
...
46
GUIDE ROLLER SUPPORT ASSEMBLY MID-12176000010393
...
47
HEATING ELEMENTS MID-17476000001425
...
48
HELICAL GEAR MID-12176000008783
...
49
INDICATOR LAMP MID-17476000001113
...
50
INDUCTION PUMP MID-17476000A02374
...
51
INDUCTION PUMP MID-17476000A05315
...
52
INLET BREATHER NUT MID-12176000A42021
...
53
INLET PIPE MID-12676000000113
...
54
INLET PIPE MID-12676000000179
...
55
INLET VALVE MID-17476000001140
...
56
INLET VALVE CONNECTING PIPE MID-12676000000621
...
57
INNER DOOR ASSEMBLY(INNER DOOR+SELING STRIP) MID-12276000020753
...
58
INNER PIPE ASSEMBLY MID-12176000A42012
...
59
INNER TANK PROTECTIVE STRIP(LEFT) MID-12176000002470
...
60
INNER TANK PROTECTIVE STRIP(RIGHT) MID-12176000002450
...
61
INSTALLATION TEMPLATE MID-16176000A64499
...
62
JUNCTION BOX A MID-12276000001798
...
63
JUNCTION BOX B MID-12276000001800
...
64
LEFT RAIL ASSEMBLY MID-12276000001365
...
65
LOWER BASKET ASSEMBLY MID-12976000A00964
...
66
LOWER FRONT CROSS PIECE MID-12176000003865
...
67
LOWER SPRAYER MID-12276000006062
...
68
LOWER SPRAYER CONNECTING SHAFT MID-12176000A42025
...
69
LOWER-FRONT BAFFLE PLATE MID-12276000005420
...
70
MAIN WIRE HARNESS MID-17476000012829
...
71
MASTER BOARD MID-17176000035393
...
72
MICROSWITCH MID-17476000001123
...
73
MICROSWITCH MID-17476000001137
...
74
NON RE-USABLE CLAMP FOR DRAIN HOSE(28.6MM) MID-12976000004608
...
75
NON RE-USABLE CLAMP FOR INLET VALVE AND INLET PIPE(175MM) MID-12976000004605
...
76
NON RE-USABLE CLAMP FOR WASH PUMP IN(46MM) MID-12976000000308
...
77
NON RE-USABLE CLAMP FOR WASH PUMP OUT(39.6MM) MID-12976000004604
...
78
NUT MID-12176000009577
...
79
NUT MID-12176000009535
...
80
OUTER DOOR MID-12276000021052
...
81
OUTLET PIPE MID-12676000000181
...
82
PCB BOX MID-12176000013106
...
83
PCB BOX COVER MID-12176000013107
...
84
PERMANENT MAGNET SYNCHRONOUS PUMP MID-11001011000221
...
85
PLANE FILTER MID-12276000001513
...
86
PRESSURE SWITCH MID-17476000001149
...
87
PRESSURE SWITCH PVC PIPE MID-12676000000628
...
88
PUMP IMPELLER MID-12176000008809
...
89
PUMP SEALING RING MID-12676000000787
...
90
RACK BALL MID-12176000025298
...
91
RACK HANDLE SCREW MID-11303120000027
...
92
RAIL BLOCK(BACK) MID-12176000008428
...
93
RAIL SUPPORT ASSEMBLY MID-12176000010456
...
94
RE-USABLE CLAMP FOR INLET PIPE NEAR SUMP(14.5*1.8MM) MID-12976000000332
...
95
RE-USABLE CLAMP FOR PRESSURE SWITCH PVC PIPE(8.2*1.2MM) MID-12976000000322
...
96
REAR PUMP SHELL MID-12176000002594
...
97
RIGHT RAIL ASSEMBLY MID-12276000001355
...
98
ROLLER MID-12176000008784
...
99
ROUND PIN MID-12976000001074
...
100
SCREW TYPE HOSE CLAMP24~36MM MID-12976000000311
...
101
SEALING RING MID-12676000000838
...
102
SEALING RING MID-12676000000784
...
103
SEALING RING MID-12676000000823
...
104
SEALING RING MID-12676000000745
...
105
SENSOR ASSEMBLY MID-17176000000312
...
106
SENSOR ASSEMBLY MID-17176000000297
...
107
SIDE BOARD SUPPORT BLOCK MID-12176000008578
...
108
SIDE PANEL MID-12276000001019
...
109
SPRAY ARM NUT MID-12176000009511
...
110
SPRAYER SEAT MID-12176000A42026
...
111
STOPPER MID-12176000008429
...
112
SUPPORT BLOCK MID-12176000008444
...
113
SWORD FORK FRAME GUIDER(LEFT) MID-12276000019053
...
114
SWORD FORK FRAME GUIDER(RIGHT) MID-12276000019051
...
115
SYNCHRONOUS MOTOR MID-11002014000026
...
116
TOP SOUND SOUND-PROOF FELT MID-12676000000367
...
117
TUB CONNECTING BLOCK MID-12176000008440
...
118
TUB LEFT SIDE RUBBER GASKET MID-12676000006936
...
119
TUB RIGHT SIDE RUBBER GASKET MID-12676000006937
...
120
TUB SOUND ABSORBING STRIP MID-12676000000365
...
121
TUB SUPPORT MID-12176000008450
...
122
UPPER BASKET ASSEMBLY MID-12976000007933
...
123
UPPER BASKET ASSEMBLY(HANDLE ATTACHED) MID-12976000A00962
...
124
UPPER SPRAYER MID-12176000A42034
...
125
UPPER SPRAYER PIPE MID-12176000A42020
...
126
VORTEX SPRAYER ARM MID-12176000029455
...
127
VORTEX SPRAYER ARM CONNECTOR MID-12176000008696
...
128
VORTEX SPRAYER ARM PIPE MID-12676000000678
...
129
WASHERS MID-12676000000713
...
130
WATER CUP ASSEMBLY MID-12176000015664
...
131
WATER DISPENSER MID-12176000A42030
...
132
WATER DIVERSION VALVE LEVER MID-12176000003489
...
133
WATER DIVERSION VALVE PROTECTIVE SLEEVE MID-12676000001042
...
134
WATERPROOF CASE MID-12676000001011
...
135
WEATHERSTRIP MID-12676000002681
...
136
WORM MID-12176000003607
...
137
ZONE WASH PIPE MID-12176000009480
