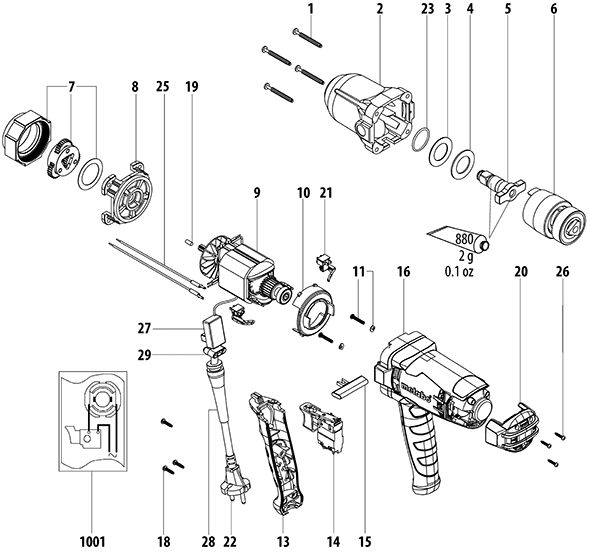

Metabo SSW650 Type 02204421 Impact Driver Wrench

Model: SSW650 Type 02204421

Save Part Not Listed?
product name

Metabo SSW650 Type 02204421

...
...
1
Screw F. Housing MTB-341705170
...
2
Gear Housing MTB-315105440
...
3
Washer MTB-344000320
...
4
Washer MTB-341013310
...
5
Spindle Compl. MTB-316057990
...
6
Hammer Mechanism Compl. MTB-316058000
...
7
Gear-Box Compl. MTB-316058010
...
8
Flange MTB-315105450
...
10
Disc Flange Cover MTB-339153120
...
11
Screw F. Motor MTB-341705190
...
13
Handle Cpl. MTB-316058030
...
14
Switch MTB-343410520
...
15
Switch Slide MTB-343410530
...
16
Housing Compl. MTB-316057900
...
18
Screw MTB-341705200
...
19
Pin MTB-343439980
...
20
Housing Cap MTB-343439990
...
21
Set Brush Compl. MTB-316058070
...
22
Cable With Ul-Csa-Plug MTB-344530760
...
23
O-Ring MTB-143192570
...
24
Rating Plate MTB-338066260
...
25
Strand MTB-344499910
...
26
Screw MTB-341721970
...
27
Electronic Unit MTB-343085720
...
28
Cable Sleeve MTB-344101140
...
29
Stress Relieve MTB-341166100
...
880
Grease Gl 402 MTB-344130650
...
1001
Wiring Diagram MTB-338505890
