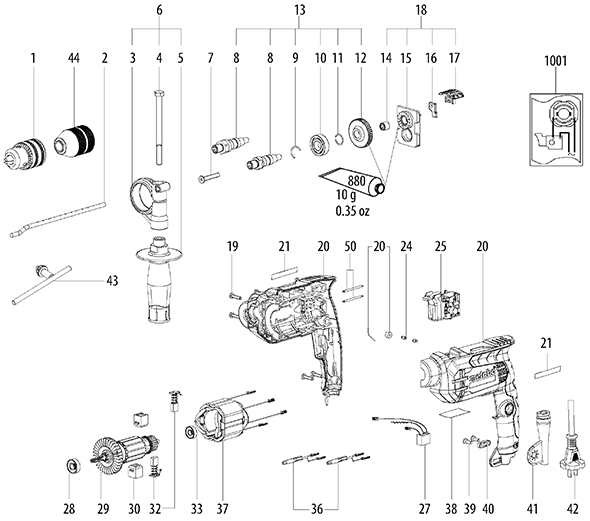

Metabo SBE650 Type 00742420 Impact Drill

Model: SBE650 Type 00742420

Save Part Not Listed?
product name

Metabo SBE650 Type 00742420

...
...
1
Keyed-Chuck MTB-301003600
...
2
Depth Stop MTB-341511630
...
3
Clamping Piece MTB-343359780
...
4
Hexagon Head Screw MTB-141116160
...
6
Support Handle Cpl. MTB-314000840
...
7
Countersunk Screw MTB-141122180
...
8
Spindle MTB-341605950
...
9
Spring MTB-342022800
...
10
Ball Bearing MTB-320051020
...
11
Spring Washer MTB-342023910
...
12
Gear-Box Quick MTB-341163130
...
13
Spindle Compl. MTB-316071690
...
14
Needle Bearing MTB-320051050
...
15
Ratched Wheel MTB-341213840
...
16
Replace Metal Plate MTB-339141520
...
17
Switch Slide MTB-343454920
...
18
Gear Flange Compl. MTB-316071740
...
19
Self-Tap. Fill. H. Screw MTB-141118730
...
20
Motor Housing Compl. MTB-316071700
...
21
Type Label MTB-338133680
...
24
Rubber Pad MTB-344103010
...
25
Switch With Elektronic MTB-316071720
...
27
Capacity MTB-343255310
...
28
Ball Bearing MTB-320051030
...
29
Rotor, 120V MTB-310013460
...
30
Carbon Brush Holder Compl. MTB-316071730
...
32
Carbon Brush, 120V MTB-316071670
...
33
Ball Bearing MTB-320051040
...
36
Part Not Needed MTB-399999990
...
37
Field Coil, 120V MTB-311013530
...
38
Rating Plate MTB-338075770
...
39
Self-Tap. Fill. H. Screw MTB-141118730
...
40
Cable Clamp MTB-343454910
...
41
Cord Sleeve MTB-344103020
...
42
Cable MTB-344533200
...
43
Chuck Key MTB-301100190
...
44
Part Not Needed MTB-399999990
...
50
Internal Wire MTB-344534040
...
880
Grease Tube MTB-344131400
...
1001
Diagram MTB-338510740
