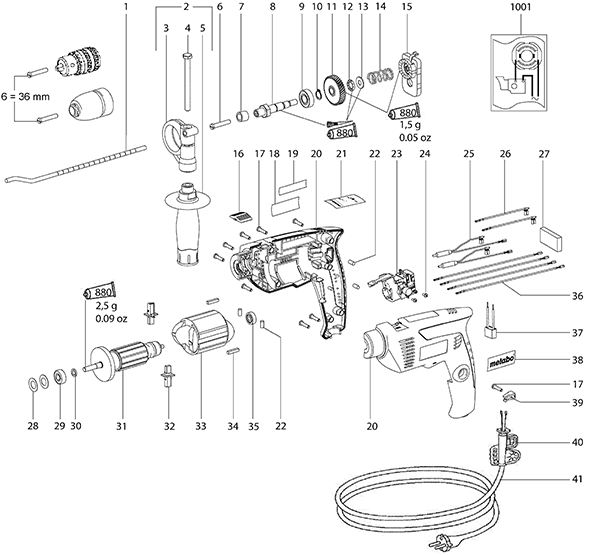

Metabo SBE561 Type 01160420 Impact Drill

Model: SBE561 Type 01160420

Save Part Not Listed?
product name

Metabo SBE561 Type 01160420

...
...
1
Depth Stop MTB-341511630
...
2
Support Handle Cpl. MTB-314000840
...
3
Clamping Piece MTB-343359780
...
4
Hexagon Head Screw MTB-141116160
...
5
Handle MTB-314000550
...
6
Cheese-Head Screw MTB-341701940
...
7
Bit Retaining Bush MTB-631281000
...
8
Spindle MTB-341603980
...
9
Ball Bearing, 12X28X8 MTB-143115640
...
10
Retaining Ring MTB-141180060
...
11
Spur Gear MTB-341054650
...
12
Ball Holder MTB-320050260
...
13
Washer MTB-339005870
...
14
Pressure Spring MTB-342021560
...
15
Gear Flange Cpl. MTB-316025220
...
16
Switch Slide MTB-343370760
...
17
Self-Tap Fill H Screw MTB-141116020
...
18
Rating Plate MTB-338050280
...
19
Warning Label MTB-338115880
...
20
Housing W.Cover Gummed MTB-343393420
...
21
Indication Label Bit Retaining Bush MTB-338121340
...
22
Rubber Plug MTB-344092220
...
23
Electronic Switch MTB-343409560
...
24
Fillister Head Screw MTB-141116970
...
25
Part Not Needed MTB-399999990
...
26
Strand MTB-344493250
...
27
Insert MTB-344103000
...
28
Cup Spring MTB-141150590
...
29
Ball Bearing, 8X22X7 MTB-143115800
...
30
Washer MTB-341055170
...
31
Armature Compl. 120V MTB-310009390
...
32
Brush Holder Cpl. MTB-316033870
...
33
Field Coil W.Field Coil, 120 V MTB-311010920
...
34
Rubber Plug MTB-344093350
...
35
Ball Bearing, 6X19X6 MTB-143115660
...
36
Strand Set MTB-344493140
...
37
Part Not Needed MTB-399999990
...
38
M-Label, 08 52X22 MTB-338122160
...
39
Cable Clip MTB-343362490
...
40
Cable Sleeve MTB-344100590
...
41
Cable With Ul-Csa-Plug MTB-344492750
...
880
Grease Gl 402 MTB-344130650
...
1001
Diagram MTB-338500260
