Metabo SBE1100 Plus Type 00867420 Impact Drill

Model: SBE1100 Plus Type 00867420

Save Part Not Listed?
product name

Popular Parts

Popular Parts

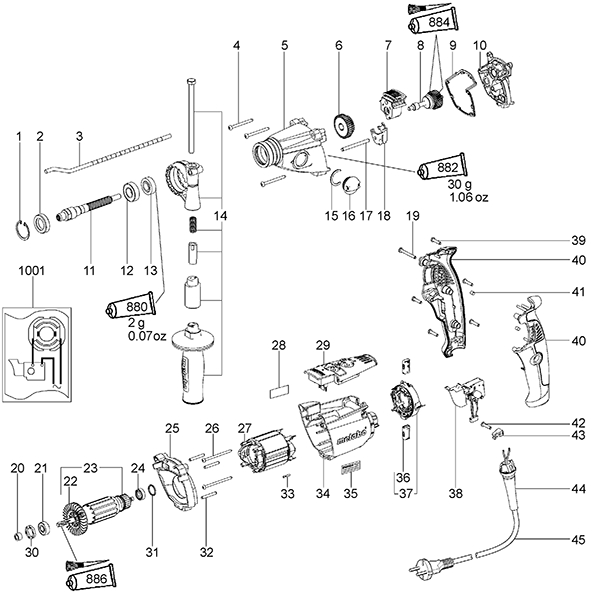

Metabo SBE1100 Plus Type 00867420

...
...
1
Retaining Ring MTB-141181680
...
2
Shaft Sealing Ring MTB-339210920
...
3
Depth Stop MTB-341511630
...
4
Self-Tap. Fill. H. Screw MTB-141123610
...
5
Gear Housing Compl. MTB-316042790
...
6
Sliding Block MTB-340004010
...
7
Switch Housing Compl. MTB-316041940
...
8
Pinion Shaft W.Slip-Clutch MTB-316042810
...
9
Seal MTB-344097930
...
10
Gear Flange Compl. MTB-316042800
...
11
Drill Spindle MTB-341604020
...
12
Ball Bearing, 15X32X9 MTB-143115790
...
13
Slotted Disc MTB-341055650
...
14
Side Support Handle Compl. MTB-314001020
...
15
Ring MTB-141155810
...
16
Control Knob Compl. MTB-316041960
...
17
Guide Bolt MTB-341540010
...
18
Shift Fork MTB-339133070
...
19
Self-Tap. Fill. H. Screw MTB-141116990
...
20
Sealing Ring MTB-343376040
...
21
Ball Bearing, 8X22X7 MTB-143115800
...
22
Fan MTB-330001830
...
23
Armature Compl.,120 V MTB-310009430
...
24
Ball Bearing, 6X 19X 6 MTB-143115810
...
25
Intermediate Flange MTB-343393930
...
26
Self-Tap. Fill. H. Screw MTB-141118260
...
27
Field Coil W.Field Coil, 120V MTB-311010930
...
28
Rating Plate MTB-338054460
...
29
Electronic Unit, 120V 50/60Hz MTB-343084180
...
30
Rubber Buffer MTB-344095920
...
31
O-Ring MTB-143192430
...
32
Cylindrical Pin MTB-341520230
...
33
Temperature Sensor MTB-343081600
...
34
Motor Housing MTB-315013250
...
35
Warning Label 50 X 16 MTB-338121950
...
36
Carbon Brush Set, 120 V MTB-316046980
...
37
Brush Holder Module, 120V MTB-316049170
...
38
Poti Switch MTB-343409250
...
39
Self-Tap Fill H Screw MTB-141116020
...
40
Pistol Grip 2-Part, Gummed MTB-343398530
...
41
Rubber Plug MTB-344097580
...
42
Self-Tap. Fill. H. Screw MTB-141117060
...
43
Cable Clip MTB-343362490
...
44
Cable Sleeve MTB-343394300
...
45
Cable With Ul-Csa-Plug MTB-344494030
...
880
Grease 50Gr 1,8Oz MTB-344130930
...
882
Grease Fg 126 MTB-344130800
...
884
Grease Sf 011 50Gr 1,8Oz MTB-344130560
...
886
Grease 50Gr 1,8Oz MTB-344131030
...
1001
Wiring Diagram, 230 V MTB-338505120
