Metabo SB710 Type 00861420 Impact Drill

Model: SB710 Type 00861420

Save Part Not Listed?
product name

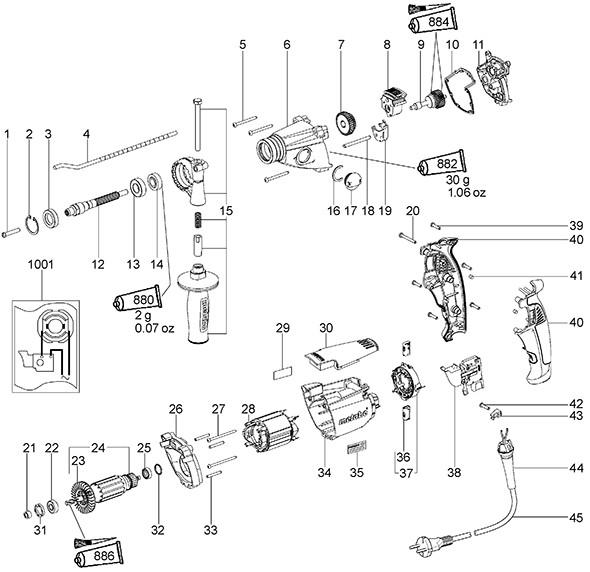

Metabo SB710 Type 00861420

...
...
1
Cheese-Head Screw MTB-341701940
...
2
Retaining Ring MTB-141181680
...
3
Shaft Sealing Ring MTB-339210920
...
4
Depth Stop MTB-341511630
...
5
Self-Tap. Fill. H. Screw MTB-141123610
...
6
Gear Housing Compl. MTB-316042790
...
7
Sliding Block MTB-340004010
...
8
Switch Housing Compl. MTB-316041940
...
9
Pinion Shaft W. Clutch MTB-316045940
...
10
Seal MTB-344097930
...
11
Gear Flange Compl. MTB-316042800
...
12
Drill Spindle MTB-341604020
...
13
Ball Bearing, 15X32X9 MTB-143115790
...
14
Slotted Disc MTB-341055650
...
15
Side Support Handle MTB-314001280
...
16
Ring MTB-141155810
...
17
Control Knob Compl. MTB-316041960
...
18
Guide Bolt MTB-341540010
...
19
Shift Fork MTB-339133070
...
20
Self-Tap. Fill. H. Screw MTB-141116990
...
21
Sealing Ring MTB-343376040
...
22
Ball Bearing, 8X22X7 MTB-143115800
...
23
Fan MTB-330001820
...
24
Armature Compl.,120 V MTB-310009410
...
25
Ball Bearing, 6X 19X 6 MTB-143115810
...
26
Intermediate Flange MTB-343394750
...
27
Self-Tap. Fill. H. Screw MTB-141118260
...
28
Field Coil 120V MTB-311009830
...
29
Rating Plate MTB-338054420
...
30
Cover W.O. Electronic MTB-343394070
...
31
Rubber Buffer MTB-344095920
...
32
O-Ring MTB-143192430
...
33
Cylindrical Pin MTB-341520230
...
34
Motor Housing MTB-315013250
...
35
Warning Label 50 X 16 MTB-338121950
...
37
Brush Holder Module, 230V - V-El. 850W MTB-316051990
...
38
On-Off Switch MTB-343409210
...
39
Self-Tap Fill H Screw MTB-141116020
...
41
Rubber Plug MTB-344097580
...
42
Self-Tap. Fill. H. Screw MTB-141117060
...
43
Cable Clip MTB-343362490
...
44
Cable Sleeve MTB-343394300
...
45
Cable With Ul-Csa-Plug MTB-344494030
...
46
Pistol Grip Compl. MTB-316062740
...
880
Grease 50Gr 1,8Oz MTB-344130930
...
882
Grease Fg 126 MTB-344130800
...
884
Grease Sf 011 50Gr 1,8Oz MTB-344130560
...
886
Grease 50Gr 1,8Oz MTB-344131030
...
1001
Wiring Diagram, 230 V MTB-338505160
