Metabo SB18Li Type 02190000 Impact Drill

Model: SB18Li Type 02190000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

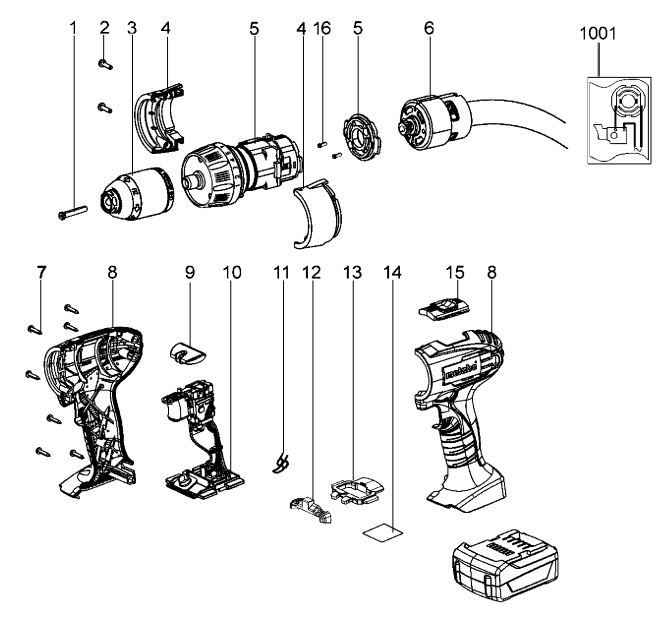

Metabo SB18Li Type 02190000

...
...
1
Cheese-Head Screw MTB-341701940
...
2
Fillister Head Screw MTB-341704610
...
3
Keyless Chuck,1,5-13 MTB-301003150
...
4
Cover Compl. MTB-343001040
...
5
Gear-Box Compl. MTB-316040570
...
6
Dc-Motor,18 V MTB-317003650
...
7
Self-Tap. Fill. H. Screw MTB-141113180
...
8
Housing W.Cover MTB-343395130
...
9
Switch Slide,R/L MTB-343395070
...
10
Electronic Switch 18 V MTB-343408660
...
11
Spring Clip MTB-342021670
...
12
Pressure Plate MTB-343397990
...
13
Switch Slide MTB-343394790
...
14
Rating Plate MTB-338056200
...
15
Switch Slide,H/L MTB-343395120
...
16
Fillister Head Screw MTB-141122220
...
1001
Wiring Diagram MTB-338504870
