Metabo SB18LTX Quick Type 02200000 Impact Drill

Model: SB18LTX Quick Type 02200000

Save Part Not Listed?
product name

Metabo SB18LTX Quick Type 02200000

...
...
7
Housing W.Cover MTB-343432470
...
8
Switch Slide MTB-343394790
...
9
Pressure Plate MTB-343394770
...
10
Spring Clip MTB-342021670
...
11
Switch Slide, R/L MTB-343433250
...
12
Switch Slide Compl. MTB-316051650
...
13
Self-Tap. Fill. H. Screw MTB-141113180
...
14
Gear-Box Compl. MTB-316053420
...
15
Armature Compl.,18 V MTB-310011160
...
17
Rating Plate MTB-338059380
...
22
Indication Label MTB-338129940
...
30
Side Support Handle Compl. MTB-314001030
...
31
Hook MTB-339137270
...
32
Bit-Depot 18 V MTB-343448690
...
42
Switch Complete With Brush Holder MTB-316053840
...
95
Cover Cap MTB-343439680
...
850
Chuck Futuro Plus S1M Quick MTB-627240000
...
1001

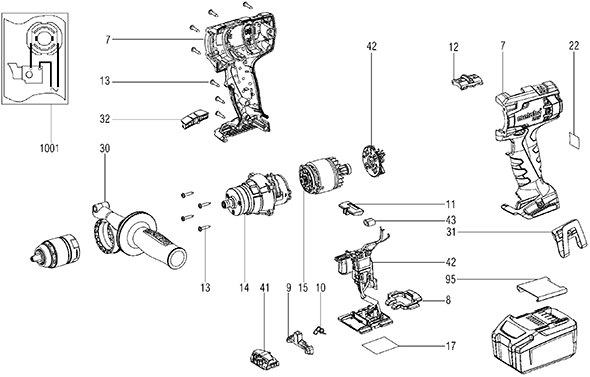

Diagram MTB-338505830
