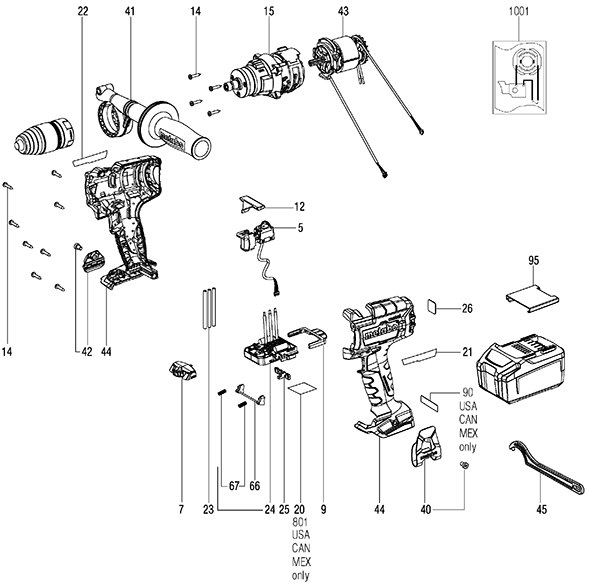

Metabo SB18LTX-3BL QI Metal Type 03182000 Impact Drill

Model: 03182000

Save Part Not Listed?
product name

Metabo 03182000

...
...
5
Poti-Switch Dx13-1004 MTB-343412640
...
7
Selector Wheel Compl. MTB-316070640
...
9
Locking Slide MTB-343447510
...
12
Switch Slide MTB-343456580
...
14
Self-Tap. Fill. H. Screw MTB-141113180
...
15
Gear-Box Compl.,3G Metall Sb Q MTB-316072940
...
20
Rating Plate MTB-338077970
...
21
Type Label Left, Sb 18 Ltx-3 Bl Q MTB-338134560
...
22
Type Label Left, Sb 18 Ltx-3 Q I MTB-338134550
...
23
Insulating Hose MTB-339041310
...
24
Electronic Unit, Bs/Sb 18 Ltx-3 Bl Metal MTB-343091630
...
25
Insert MTB-343447010
...
26
Indication Label, Cas MTB-338129960
...
40
Hook MTB-339137270
...
41
Side Support Handle Compl. MTB-314001560
...
42
Bit-Depot 18 V MTB-343448690
...
43
Motor Compl. MTB-316072960
...
44
Housing W. Cover MTB-316072910
...
45
Hook Wrench MTB-301100990
...
66
Latch Compl. MTB-316066720
...
67
Pressure Spring MTB-342004180
...
90
Indication Label, Warning MTB-338124510
...
95
Cover Cap MTB-343439680
...
801
Rating Plate MTB-338078080
...
850
Futuro Top Quick-Change Chuck R+L, MTB-627197000
...
1001
Wiring Diagram MTB-338506560
