Metabo SB18L Type 02317000 Impact Drill

Model: SB18L Type 02317000

Save Part Not Listed?
product name

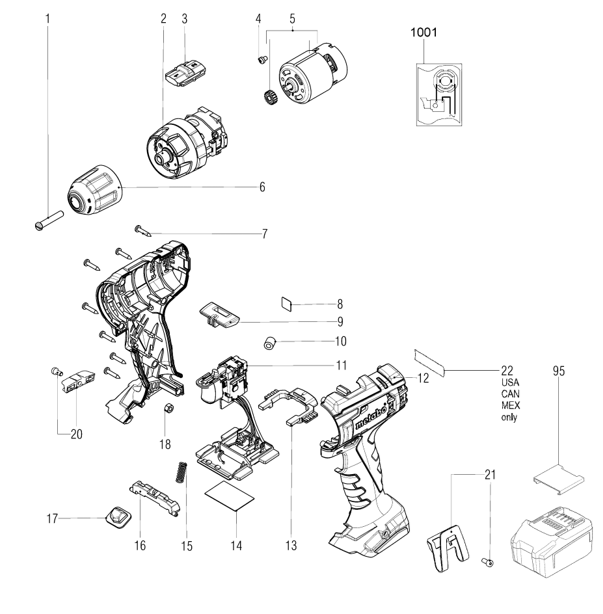

Metabo SB18L Type 02317000

...
...
1
Cap Screw MTB-341705050
...
2
Gear-Box Cpl. MTB-316096330
...
3
Switch Slide,H/L MTB-343444860
...
4
Fillister Head Screw MTB-341705450
...
5
Motor Compl. MTB-316066650
...
7
Self-Tap. Fill. H. Screw MTB-141113180
...
8
Indication Label MTB-338129940
...
9
Switch,R+L MTB-343410580
...
10
Toroidal Ferrite MTB-143160140
...
11
Electronic Switch 18 V MTB-343411560
...
12
Motor Housing MTB-343444850
...
13
Locking Slide MTB-343438580
...
14
Rating Plate 02317000 Sb 18 L MTB-338069210
...
15
Pressure Spring MTB-342003030
...
16
Locking Piece MTB-343430520
...
17
Led Lense MTB-343083380
...
18
Hexagonal Nut MTB-141130090
...
20
Bit-Depot 18 V MTB-343448690
...
21
Hook MTB-339137270
...
22
Part Not Needed MTB-399999990
...
95
Cover Cap MTB-343439680
...
850
Futuro Plus Keyless Chuck H1 MTB-636609000
