Metabo PowerMaxx SBBL Type 01784000 Impact Drill

Model: SBBL Type 01784000

Save Part Not Listed?
product name

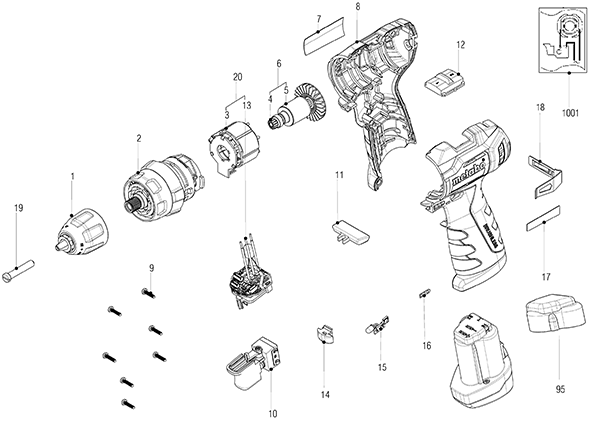

Metabo SBBL Type 01784000

...
...
2
Gear-Box Compl. MTB-316074350
...
3
Stator Compl.,12V MTB-311013510
...
4
Pinion MTB-341072510
...
5
Rotor Compl.,12V MTB-310013860
...
6
Armature Compl. MTB-316072870
...
8
Housing W.Cover MTB-343454890
...
9
Screw, St2,9X13 MTB-341704710
...
10
Poti Switch, 12V MTB-343412710
...
11
Switch Slide (R/L) MTB-343454900
...
12
Switch Slide H-L Compl. MTB-316097270
...
13
Electronic Unit Cpl.,12V MTB-343089140
...
14
Led Lense MTB-343434920
...
15
Led& Fuel Gauge Module, 12V MTB-316071600
...
16
Indication Label, Led MTB-338123700
...
18
Hook MTB-339136400
...
19
Cap Screw MTB-341722830
...
95
Cover Cap MTB-343446880
...
850
Keyless Chuck Futuro Plus H1 MTB-636219000
...
1001
Wiring Diagram MTB-338510800
