Metabo MHEV5BL Type 00769420 Rotary Hammer

Model: MHEV5BL Type 00769420

Save Part Not Listed?
product name

Metabo MHEV5BL Type 00769420

...
...
1
Rubber Cap MTB-344114200
...
2
Spiral Retaining Ring MTB-342024380
...
3
Washer MTB-339008620
...
4
Damper MTB-344114210
...
5
Sliding Sleeve MTB-341213160
...
6
Retaining Ring MTB-339149340
...
7
Supporting Disc MTB-341723200
...
8
Pressure Spring MTB-342024390
...
9
Guide Plate MTB-339149350
...
11
Screw MTB-341571030
...
12
Housing Cap Front MTB-343448410
...
18
Gear Housing In The Front MTB-315107710
...
19
Screw With Flange MTB-341570980
...
20
O-Ring MTB-344114220
...
21
Supporting Disc MTB-341723210
...
22
Damping Ring MTB-344114230
...
24
Support Ring MTB-341213170
...
25
Bit Lock MTB-339149080
...
26
Drill Driving Sleeve Front MTB-341723230
...
28
O-Ring MTB-344113880
...
29
Striker MTB-341213190
...
30
Supporting Disc MTB-341723220
...
31
Damper MTB-344114240
...
32
Supporting Disc MTB-341020410
...
33
Drill Driving Sleeve Behind MTB-341723240
...
34
Striker MTB-341213200
...
35
Bearing Sleeve MTB-341006640
...
36
O-Ring MTB-344113900
...
37
Bit Sleeve MTB-341213220
...
38
Pressure Spring MTB-342024400
...
39
Setting Ring MTB-343447420
...
40
Pressure Spring MTB-342024410
...
41
Coupling Sleeve MTB-341213210
...
42
Shift Fork MTB-341213230
...
44
Con Rod Cpl. MTB-316098040
...
45
Needle Bearing MTB-320054480
...
46
Bolt MTB-341525460
...
47
Piston MTB-343447430
...
48
Armature MTB-310012950
...
49
Hex Head Screw MTB-341723040
...
50
Stator Compl. 110-120V MTB-316098050
...
51
Spacing Washer MTB-341020240
...
52
Washer MTB-341723020
...
53
Ball Bearing MTB-320054490
...
54
Motor Housing MTB-315420270
...
55
Screw MTB-341571000
...
56
Dust Seal MTB-344114250
...
57
Houlder Bolt MTB-341723420
...
58
M5 Sealock Button Bolt MTB-341723430
...
59
Spacer Sleeve MTB-341723260
...
60
Handle Half Pair MTB-343448490
...
61
Rubber Plug C410599 MTB-344114270
...
62
Fork MTB-315420340
...
63
Foam Pad MTB-344114280
...
64
Electronic Unit 120 V MTB-343087510
...
66
Screw With Flange MTB-341570990
...
67
Motor Cap MTB-343449260
...
71
Bellows MTB-344102230
...
72
Switch Trigger MTB-343449270
...
73
Switch MTB-343412140
...
74
Bearing Bolt MTB-341519770
...
75
Tapping Screw (W/Flange) D4X20 (Black) MTB-341723450
...
76
Screw MTB-341723440
...
77
Housing Cap Rear MTB-343448480
...
78
Cable Terminal MTB-343087720
...
79
Cable Clip MTB-343447450
...
80
Cable With Plug MTB-344532080
...
81
Cable Sleeve MTB-344114120
...
87
Gear Housing Rear MTB-315105950
...
90
Eccentric Shaft MTB-341605690
...
91
Adjusting Spring MTB-339101150
...
92
Retaining Ring MTB-342024300
...
93
O-Ring MTB-344114260
...
94
Ball Bearing MTB-320054500
...
95
Shaft Sealing Ring MTB-339013100
...
96
Cap MTB-343448430
...
97
Vibration Damper Compl. MTB-316098080
...
99
O-Ring MTB-344114010
...
100
Felt MTB-344071160
...
101
Valve Compl. MTB-316098090
...
102
Led-Display Unit MTB-343087330
...
103
Seal Lock Hex. Socket Hd. Bolt M4X12 MTB-341723480
...
104
Control Knob Slide MTB-343449450
...
105
Pressure Spring MTB-342024430
...
106
Steel Ball MTB-341166880
...
107
O-Ring MTB-344113940
...
108
Control-Knob Cover MTB-343450170
...
109
Retaining Ring MTB-141180130
...
110
Gear Box Cover MTB-315420280
...
111
Needle Bearing MTB-320054510
...
112
Screw MTB-341571010
...
114
Shift Element MTB-339149370
...
119
Spur Gear MTB-341072170
...
120
Screw MTB-341723470
...
125
Lock Button MTB-343448570
...
126
Speed Button MTB-343448580
...
127
Pressure Spring MTB-342024420
...
128
Push Button Switch MTB-343412150
...
130
Ball Bearing MTB-320054410
...
131
Sealing Washer MTB-341213240
...
135
Rating Plate MTB-338130720
...
140
Rating Plate MTB-338071571
...
145
Indication Label Vtc Electronic MTB-338130750
...
150
Warning Label Serial 40X14 MTB-338121750
...
155
Suppressor 100V-120V MTB-343255190
...
160
Loop Handle Hikoki Part Number C215662A MTB-343449440
...
161
Bolt, M8 MTB-341723460
...
162
Ratched Wheel Hikoki Part Numberc215673 MTB-341072200
...
163
Clamping Piece Hikoki Number C351775A MTB-341072210
...
164
Knurled Nut Hikoki Part Number C215672A MTB-341109150
...
165
Cleaning Cloth MTB-341167130
...
166
Special Grease MTB-631800000
...
885
Special Grease 500G MTB-344131350
...
886
Gear Grease MTB-344131360
...
1001
Diagram MTB-338510520

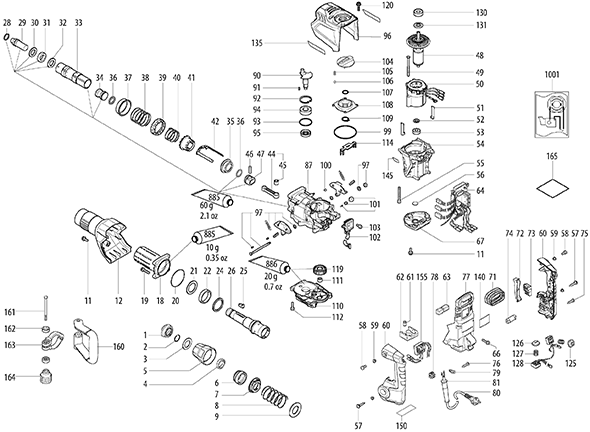

Schematic Image Zoomed
