Metabo MAG832 Type 00832431 Drill

Model: MAG832 Type 00832431

Save Part Not Listed?
product name

Metabo MAG832 Type 00832431

...
...
72
Gland MTB-343300060
...
73
Safety Band MTB-341146380
...
74
Bolt MTB-341514240
...
75
Sperical Knob MTB-143170070
...
76
Fillister Head Screw MTB-141110470
...
78
Countersunk Screw MTB-141120580
...
79
Assembly Ring MTB-344493240
...
81
Stator Housing MTB-315414880
...
82
Grub Screw MTB-141119990
...
83
Bronze Bearing MTB-320050350
...
85
Feed Shaft MTB-340050440
...
90
Serrated Lock Washer MTB-141152270
...
92
Printed Circuit Board MTB-343077060
...
94
Switch MTB-343406750
...
95
Cap Screw MTB-141113840
...
98
Part Not Needed MTB-399999990
...
100
Rating Plate MTB-338027870
...
101
Cheese-Head Screw MTB-141114010
...
102
Washer MTB-141151340
...
103
Magnet Block MTB-341146350
...
104
Metabo Label MTB-338115510
...
105
Guide Strip MTB-339126570
...
106
Pressure Strip MTB-341144880
...
107
Rack MTB-341146370
...
109
Cap Screw MTB-141113900
...
110
Hexagonal Key MTB-344161550
...
111
Cranked Wrench Key MTB-344161520
...
113
Tool Holder MTB-341055590
...
114
Grub Screw MTB-141114920
...
115
Pressure Spring MTB-342002140
...
116
Guide MTB-341053850
...
117
Retaining Ring MTB-141180830
...
118
Ball Bearing, 25X47X12 MTB-143113230
...
119
Washer MTB-339060230
...
120
Spring Ring MTB-141180740
...
122
Tool Holder MTB-315414900
...
123
Cap Screw MTB-141114040
...
124
Cap Screw MTB-141113870
...
126
Cover Plate MTB-343030140
...
127
Cap Screw MTB-141111060
...
128
Serrated Lock Washer MTB-141150410
...
1001

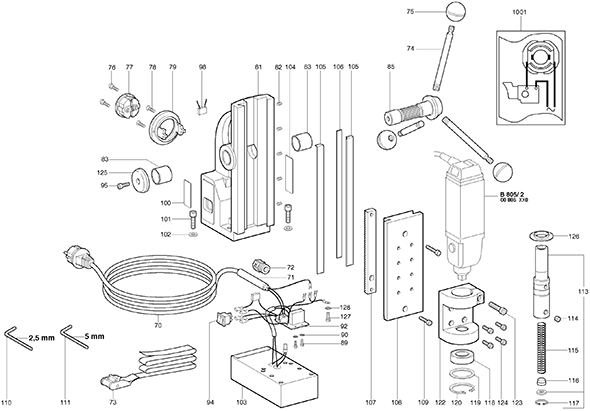

Diagram MTB-338501610
