Metabo MAG50 Type 00636420 Drill

Model: MAG50 Type 00636420

Save Part Not Listed?
product name

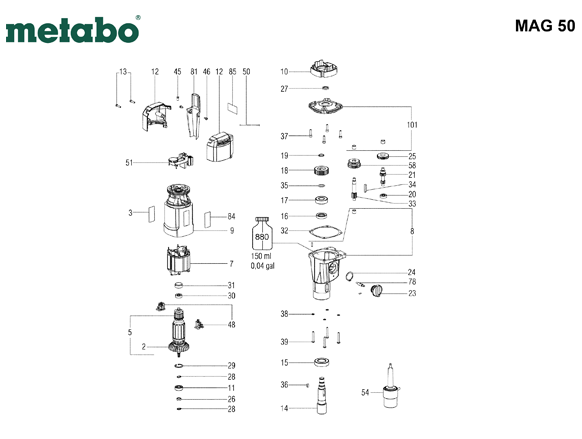

Metabo MAG50 Type 00636420

...
...
2
Fan W. Prot. Grid MTB-316032610
...
5
Armature Compl., 120V MTB-310009710
...
7
Field W.Coil MTB-311011140
...
8
Gear Housing Compl. MTB-316052360
...
9
Motor Housing MTB-315012780
...
10
Baffle MTB-339150970
...
11
Ball Bearing, 10X26X8 MTB-143111120
...
12
Motor Cap 2-Part MTB-343398690
...
13
Self-Tap Fill H Screw MTB-141116020
...
14
Spindle MTB-341604120
...
15
Grooved Ball Bearing MTB-143115150
...
16
Shaft Sealing Ring MTB-143195290
...
17
Ball Bearing, 17X 40X 12 MTB-143115240
...
18
Spur Gear MTB-340004120
...
19
Snap Ring MTB-141180090
...
20
Ball Bearing, 8X22X7 MTB-143115800
...
21
Pinion Shaft MTB-340004130
...
23
Control Knob Compl. MTB-316052800
...
24
Retaining Ring MTB-141181650
...
25
Spur Gear MTB-340012660
...
26
Bush MTB-341005780
...
27
Shaft Sealing Ring MTB-143195170
...
28
Retaining Ring MTB-141180040
...
29
Retaining Ring MTB-141180350
...
30
Ball Bearing, 8X22X7 MTB-143115800
...
31
Rubber Bearing MTB-344096020
...
32
Gasket MTB-339011840
...
33
Pinion Shaft MTB-340004140
...
34
Prallel Key MTB-141154910
...
35
Shim MTB-141156450
...
36
Parallel Key MTB-141131980
...
37
Cap Screw MTB-141113700
...
38
Gasket MTB-339210910
...
39
Self-Tap. Fill. H. Screw MTB-141120560
...
45
Light Transmission MTB-343398570
...
46
Self-Tap. Fill. H. Screw MTB-141116130
...
48
Brush Holder Cp 120V MTB-316032100
...
50
Temperature Sensor MTB-343077490
...
51
Electronic Unit,120V 50/60Hz MTB-343082030
...
54
Industrial Arbors, Mk2 MTB-316046240
...
58
Sliding Block MTB-340004150
...
81
Cabel-Duct MTB-343398700
...
84
M-Label,08 52X22 MTB-338122160
...
85
Indication Lable MTB-338122350
...
101
Gear Cover Compl. MTB-316053940
...
106
Bushing 6-Pole MTB-142110200
...
107
Bushing 1-Pole MTB-142110190
...
108
Cable Harness MTB-316051180
...
880
Oil MTB-344131190

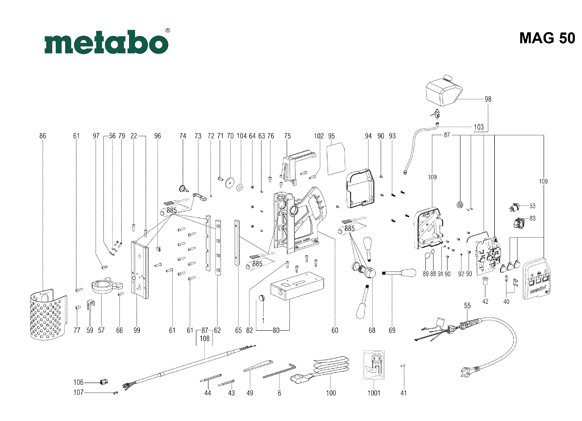

Metabo MAG50 Type 00636420

...
...
1
Electronic Unit MTB-343083660
...
6
Cranked Wrench Key MTB-344163620
...
22
Cap Screw MTB-141113880
...
40
Stress Relieve MTB-341147980
...
41
Fuse MTB-142110180
...
42
Cable Sleeve MTB-344099280
...
43
Pilot Pin Short MTB-344163740
...
44
Pilot Pin 6, 35X102 MTB-344163850
...
49
Drift Key MTB-339030120
...
53
Press Button MTB-343409890
...
55
Cable Compl. MTB-344499480
...
56
Cable Clip MTB-343398970
...
57
Gear Holder MTB-315417510
...
59
Holder MTB-339135780
...
60
Drill Frame MTB-316051550
...
61
Cap Screw MTB-141117050
...
62
Guide Strip MTB-341148240
...
63
Grub Screw MTB-141123910
...
64
Hexagonal Nut MTB-141130090
...
65
Rack MTB-341148220
...
66
Cap Screw MTB-141113850
...
68
Gear-Wheel Shaft MTB-340004290
...
69
Handle Compl. MTB-314001370
...
70
Washer MTB-141156530
...
71
Fillister Head Screw MTB-141113080
...
72
Index Bolt MTB-342001140
...
73
Latch MTB-341148250
...
74
Knob MTB-341148260
...
75
Side Support Handle MTB-314001360
...
76
Cap Screw MTB-141113840
...
77
Cap Screw MTB-141123020
...
78
Shift Bolt MTB-341210300
...
79
Fillister Head Screw MTB-141122790
...
80
Magnet Block MTB-341148490
...
82
Cap Screw MTB-341704970
...
83
Switch MTB-343409860
...
86
Metal Shavings MTB-339135910
...
87
Electronic Compl. MTB-316053630
...
88
O-Ring MTB-143194810
...
89
O-Ring MTB-143192410
...
90
Fillister Head Screw MTB-141119850
...
91
Serrated Lock Washer MTB-141150410
...
92
Fillister Head Screw MTB-141122210
...
93
Self-Tap. Fill. H. Screw MTB-141116800
...
94
Cable Cover MTB-343432310
...
95
Indication Labe MTB-338123760
...
96
Cable Clip MTB-339136140
...
97
Cap Screw MTB-341705040
...
98
Cooling Liquid Tank Compl. MTB-316048530
...
99
Sliding Carriage Compl. MTB-316052040
...
100
Tension Belt MTB-341148140
...
102
Cap Screw MTB-141113870
...
103
Hose Compl. MTB-316050840
...
104
Washer MTB-141152590
...
109
Housing Compl. MTB-316066390
...
885
Grease 50Gr 1, 8Oz MTB-344130990
...
1001
Wiring Diagram MTB-338505620
