Metabo MAG32 Type 00635420 Drill

Model: MAG32 Type 00635420

Save Part Not Listed?
product name

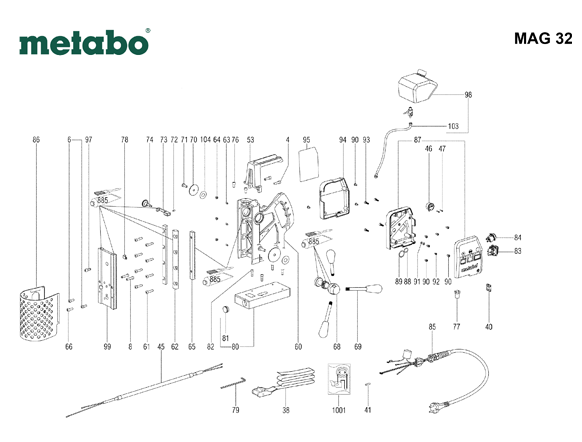

Metabo MAG32 Type 00635420

...
...
4
Cap Screw MTB-141113870
...
6
Cap Screw MTB-141122300
...
7
Field Coil With Field Coil, 230 V MTB-311011160
...
8
Cap Screw MTB-141117050
...
38
Tension Belt MTB-341148140
...
40
Stress Relieve MTB-341147980
...
41
Fuse MTB-142110180
...
45
Cable Harness MTB-316051560
...
46
Cable Gland Turnable MTB-343432320
...
47
Screw MTB-341703450
...
53
Side Support Handle MTB-314001360
...
60
Drill Frame MTB-316051550
...
61
Cap Screw MTB-141117050
...
62
Guide Strip MTB-341148240
...
63
Grub Screw MTB-141123910
...
64
Hexagonal Nut MTB-141130090
...
65
Rack MTB-341148220
...
66
Cap Screw MTB-141113850
...
68
Gear-Wheel Shaft MTB-340004290
...
69
Handle Compl. MTB-314001370
...
70
Washer MTB-141156530
...
71
Fillister Head Screw MTB-141113080
...
72
Index Bolt MTB-342001140
...
73
Latch MTB-341148250
...
74
Knob MTB-341148260
...
76
Cap Screw MTB-141113840
...
77
Cable Sleeve MTB-344099280
...
78
Cable Clip MTB-339136150
...
79
Cranked Wrench Key MTB-344163630
...
80
Magnet Block MTB-341148490
...
81
Electronic Unit MTB-343083660
...
82
Cap Screw MTB-341704970
...
83
Switch MTB-343409860
...
84
Press Button MTB-343409890
...
85
Cable Compl. MTB-344499480
...
86
Metal Shavings MTB-339135910
...
87
Electronic Compl., 120 V MTB-316055560
...
88
O-Ring MTB-143194810
...
89
O-Ring MTB-143192410
...
90
Fillister Head Screw MTB-141119850
...
91
Serrated Lock Washer MTB-141150410
...
92
Fillister Head Screw MTB-141122210
...
93
Self-Tap. Fill. H. Screw MTB-141116800
...
94
Cable Cover MTB-343432310
...
95
Indication Label MTB-338123760
...
97
Cap Screw MTB-341705040
...
98
Cooling Liquid Tank Compl. MTB-316048530
...
99
Sliding Carriage Compl. MTB-316052040
...
103
Hose Compl. MTB-316050840
...
104
Washer MTB-141152590
...
885
Grease 50Gr 1,8Oz MTB-344130990
...
1001
Wiring Diagram MTB-338505630

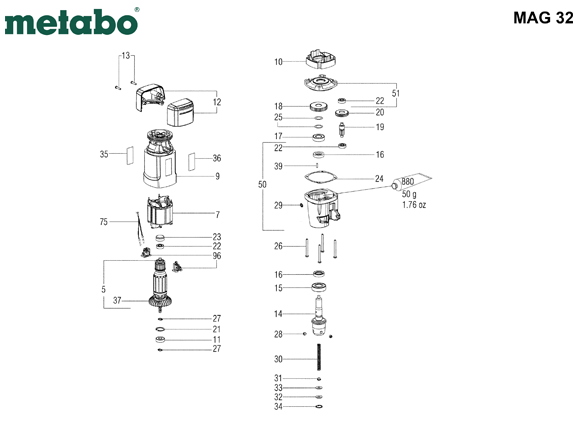

Metabo MAG32 Type 00635420

...
...
5
Armature Compl., 120V MTB-310009700
...
9
Motor Housing MTB-315012780
...
10
Baffle MTB-339150970
...
11
Ball Bearing, 10X26X8 MTB-143111120
...
12
Motor Cap 2-Part MTB-343398680
...
13
Self-Tap Fill H Screw MTB-141116020
...
14
Spindle MTB-341604110
...
15
Ball Bearing, 20X42X12 MTB-143112970
...
16
Shaft Sealing Ring MTB-143195280
...
17
Ball Bearing, 17X35X10 MTB-143111450
...
18
Spindle Wheel MTB-340003370
...
19
Intermediate Gear MTB-340003380
...
20
Intermediate Gear MTB-340012030
...
21
Retaining Ring MTB-141180350
...
22
Ball Bearing, 8X22X7 MTB-143115800
...
23
Rubber Bearing MTB-344096020
...
24
Gasket MTB-339210850
...
25
Washer MTB-141151330
...
26
Self-Tap. Fill. H. Screw MTB-141118810
...
27
Retaining Ring MTB-141180040
...
28
Screw MTB-141115080
...
29
Nipple MTB-341210270
...
30
Pressure Spring MTB-342003900
...
31
Pressure Plate MTB-341059810
...
32
Washer MTB-339007740
...
33
Rubber Packing MTB-344099130
...
34
Retaining Ring MTB-141180830
...
35
Rating Plate MTB-338061080
...
36
M-Label,08 52X22 MTB-338122160
...
37
Fan W. Prot. Grid MTB-316032610
...
39
Cylindrical Pin MTB-141163840
...
50
Gear Housing Compl. MTB-316052350
...
51
Gear Cover Compl. MTB-316046870
...
75
Strand MTB-344494680
...
96
Carbon Brush Compl. Cut-Off MTB-316035910
...
880
Grease 100G MTB-344130920
