Metabo MAG28LTX32 Type 00334000 Drill

Model: MAG28LTX32 Type 00334000

Save Part Not Listed?
product name

Metabo MAG28LTX32 Type 00334000

...
...
1
Armature Compl. MTB-310010240
...
2
Self-Tap. Fill. H. Screw MTB-141119370
...
3
Brush Cover MTB-343398600
...
4
Self-Tapp. Fill. H. Screw MTB-141119900
...
5
Circlip MTB-342022150
...
7
Bush MTB-341005780
...
8
Gear-Box Compl. MTB-316048310
...
9
Gear Cover Compl. MTB-316048960
...
11
Guide Strip MTB-341148240
...
12
Rack MTB-341148220
...
13
Latch MTB-341148250
...
14
Handle Compl. MTB-314001270
...
15
Washer MTB-141156530
...
16
Fillister Head Screw MTB-141113080
...
17
Gear Holder MTB-315417510
...
18
Holder MTB-341148230
...
19
Cooling Liquid Tank Compl. MTB-316048530
...
21
Motor Housing Compl. MTB-316048290
...
22
Rating Plate MTB-338056330
...
23
Indication Labe MTB-338123200
...
24
Locking Lever Compl. MTB-341161290
...
26
Carbon Brush Set MTB-316060540
...
27
Retaining Ring MTB-141180040
...
28
O-Ring MTB-143195370
...
29
Industrial Arbors,Mk2 MTB-316046240
...
30
Cap Screw MTB-141117050
...
31
Cap Screw MTB-141113850
...
32
Sliding Carriage MTB-315417520
...
33
Hexagon Head Screw MTB-141110280
...
36
Knob MTB-341148260
...
37
Hexagonal Nut MTB-141130090
...
38
Grub Screw MTB-141123910
...
39
Stator Housing Compl. MTB-316049640
...
40
Cooling Liquid Tank With Cover MTB-316049420
...
41
Hex Nut MTB-141132010
...
43
Holder MTB-343430380
...
44
Fillister Head Screw MTB-141119860
...
45
Index Bolt MTB-342001140
...
46
Gear-Wheel Shaft MTB-340004190
...
48
Magnet Block MTB-316048520
...
49
Drift Key MTB-339030120
...
50
Cranked Wrench Key MTB-344163620
...
51
Tension Belt MTB-341148140
...
52
Bearing Bushing MTB-341006020
...
53
Ball Bearing, 10X26X8 MTB-143111120
...
54
Retaining Ring MTB-141180350
...
60
Washer MTB-141152590
...
81
Hose Compl. MTB-316049430
...
880
Grease 50Gr 1,8Oz MTB-344130930
...
885
Oil MTB-344131190

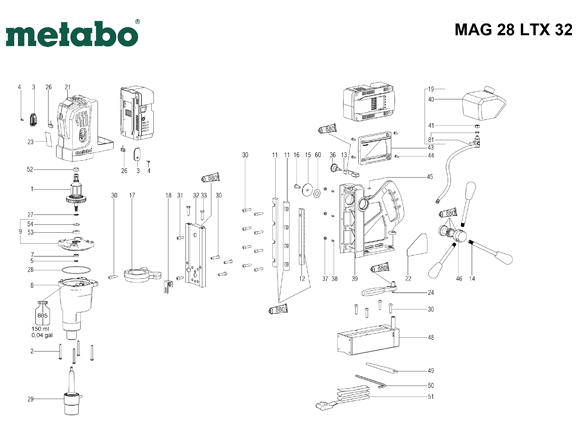

Schematic Image Zoomed
