Metabo KHED-26 Type 01109420 Rotary Hammer

Model: KHED 26 Type 01109420

Save Part Not Listed?
product name

Metabo KHED 26 Type 01109420

...
...
1
Rubber Cap MTB-344099390
...
2
Circlip MTB-342022340
...
3
Adjusting Ring MTB-343432920
...
4
Washer MTB-339007650
...
5
Pressure Spring MTB-342003890
...
7
Gear Housing Compl. MTB-316063710
...
8
Self-Tap. Fill. H. Screw MTB-141123610
...
9
Supporting Disc MTB-341013270
...
10
Circlip MTB-141181290
...
11
Cup Spring MTB-342070340
...
12
Friction Washer MTB-339004870
...
13
Spur Gear MTB-340004090
...
14
Friction Slice MTB-339006380
...
15
Coupling Sleeve MTB-341059230
...
16
Drill Driving Sleeve Compl. MTB-316053030
...
17
Piston MTB-341210610
...
18
O-Ring MTB-143194790
...
19
Damping Ring MTB-341210600
...
20
O-Ring MTB-143194640
...
21
O-Ring MTB-143193920
...
22
Catching Sleeve MTB-341059310
...
23
Circlip MTB-141181840
...
24
Sealing Ring MTB-344093140
...
25
Striker Compl. MTB-316048010
...
26
Exciter Sleeve Compl. MTB-341210800
...
27
Sealing Ring MTB-342022350
...
28
Gear Flange Compl. MTB-316053470
...
29
Felt Sea MTB-344070670
...
30
Rubber Buffer MTB-344095920
...
31
Fill. Head Screw (Din 7985) MTB-141119440
...
34
Ball MTB-143115330
...
35
Depth Stop MTB-341511630
...
36
Support Handle Cpl. MTB-314000840
...
37
Control Knob Compl. MTB-316052990
...
38
Seal MTB-343398340
...
39
Ball Bearing, 8X 22X 7 MTB-143115890
...
40
Armature, 120V MTB-310012280
...
41
Washer MTB-141153400
...
42
Thrust Washer MTB-143115300
...
43
Axial Needle Bearing MTB-143115310
...
44
Cup Spring MTB-141154920
...
45
Pinion Shaft Compl. MTB-316054920
...
46
Shift Element Compl. MTB-316045610
...
47
Sealing Washer MTB-343398310
...
48
Ball Bearing, 6X19X6 MTB-143115660
...
49
O-Ring MTB-143195230
...
50
Flange MTB-343398300
...
51
Self-Tap. Fill. H. Screw MTB-341722860
...
52
Field Coil 110 V MTB-311012680
...
53
Motor Housing MTB-343398290
...
54
Warning Label 50 X 16 MTB-338121950
...
55
Rating Plate, 01109420 Khe D-26Tx 2.5 MTB-338067340
...
56
Carbon Brush Set, 230 V MTB-316046950
...
57
Brush Holder Module, 230V - V-El. 850W MTB-316049160
...
58
Electronic Switch Without Dial, 120V A.C. MTB-343411680
...
59
Self-Tap Fill H Screw MTB-141116020
...
60
Cable Clip MTB-343362490
...
61
Self-Tap. Fill. H. Screw MTB-141116990
...
62
Handle MTB-343439320
...
63
Cable Sleeve MTB-343394300
...
64
Cable With Plug MTB-344490900
...
65
Self-Tap. Fill. H. Screw MTB-141124740
...
66
Safety Clutch Cpl. MTB-316045700
...
67
Intermediate Shaft MTB-341605210
...
68
Heat Shrink Tube MTB-341212110
...
69
Strand Compl. MTB-316095040
...
70
Fence MTB-339137480
...
71
Flat Spring MTB-342051080
...
72
Maintenance Kit MTB-316054900
...
73
Strand Compl. MTB-316095880

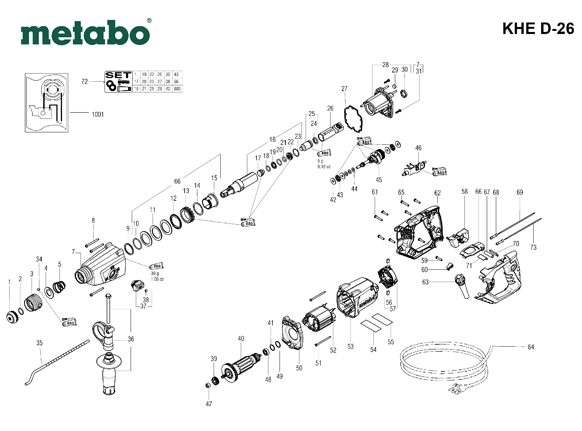

Schematic Image Zoomed
