Metabo KGS18LTXBL305 Type 14305000 Crosscut Saw

Model: KGS18LTXBL305 Type 14305000

Save Part Not Listed?
product name

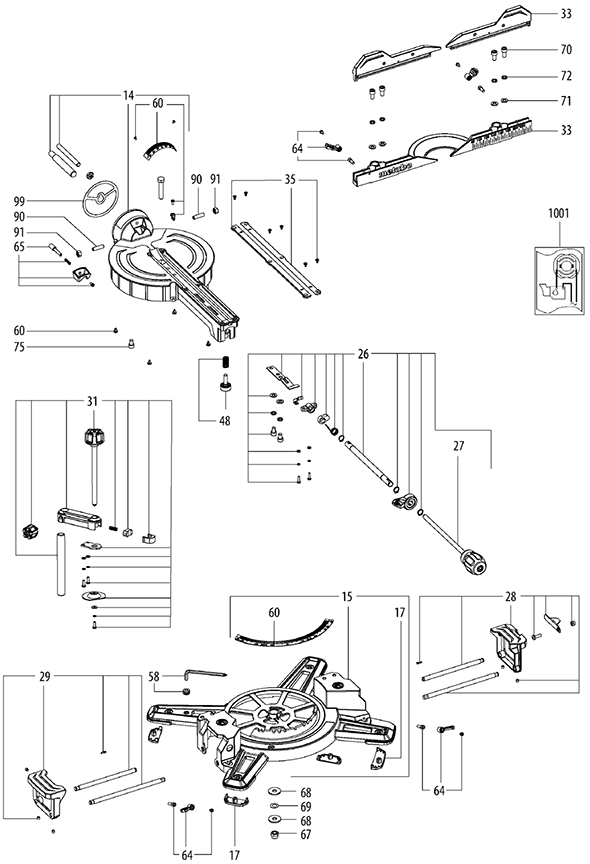

Metabo KGS18LTXBL305 Type 14305000

...
...
14
Working Table MTB-316073920
...
15
Base Cpl. MTB-316073890
...
17
Foot Compl. MTB-316075860
...
26
Detent Cpl. MTB-316075420
...
27
Handle Compl. MTB-316073970
...
28
Table Side Extension Right MTB-315421120
...
29
Table Side Extension Left MTB-315421100
...
31
Workpiece Holder Compl. MTB-316075690
...
33
Fence MTB-331050920
...
35
Table Insert MTB-343457340
...
58
Tool Holder Col. MTB-316075510
...
60
Scale Set Compl. MTB-316075910
...
64
Bevel Clamping Comp. MTB-316075520
...
65
Clamping Cap MTB-343457560
...
67
Hex Nut MTB-141132030
...
68
Washer MTB-141150050
...
69
Lock Washer MTB-141150390
...
70
Cap Screw MTB-141113890
...
71
Washer MTB-141150130
...
72
Lock Washer MTB-141155240
...
75
Cap Screw MTB-141113840
...
90
Hex. Socket Set Screw, Flat Pt MTB-141124460
...
91
Hexagonal Nut MTB-141131010
...
99
Antifriction Gaskets MTB-339149960
...
1001
Wiring Diagram MTB-338511160

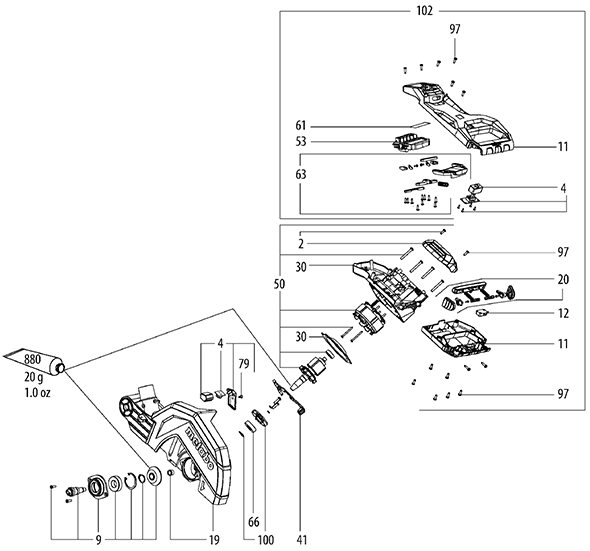

Metabo KGS18LTXBL305 Type 14305000

...
...
2
Motor End Cap MTB-343460260
...
4
Led Compl. MTB-316078730
...
9
Gearbox Compl.(Ssd Brushed Asia Version) MTB-316075850
...
11
Carry Handle Comp. MTB-316076870
...
12
Switch MTB-343413080
...
19
Wheel Guard Compl. MTB-339205020
...
20
Switch Trigger Compl. MTB-316075410
...
30
Motor Housing Compl. MTB-316078740
...
41
Spindle Lock Comp. MTB-316075880
...
50
Motor Compl. MTB-316078750
...
53
Electronic Unit, Kgs 18 Ltx Bl 305 MTB-343090170
...
61
Rating Plate MTB-338080980
...
63
Clamp Kit Cpl. MTB-316078680
...
66
Ball Bearing, 17X35X10 MTB-143111450
...
79
Countersunk Screw MTB-141112180
...
97
Self-Tap. Fill. H. Screw MTB-141118730
...
100
Bearing Cover Compl. MTB-316078410
...
102
Handle With Control Board Cpl. MTB-316079630
...
880
Grease 50Gr 1,8Oz MTB-344130970

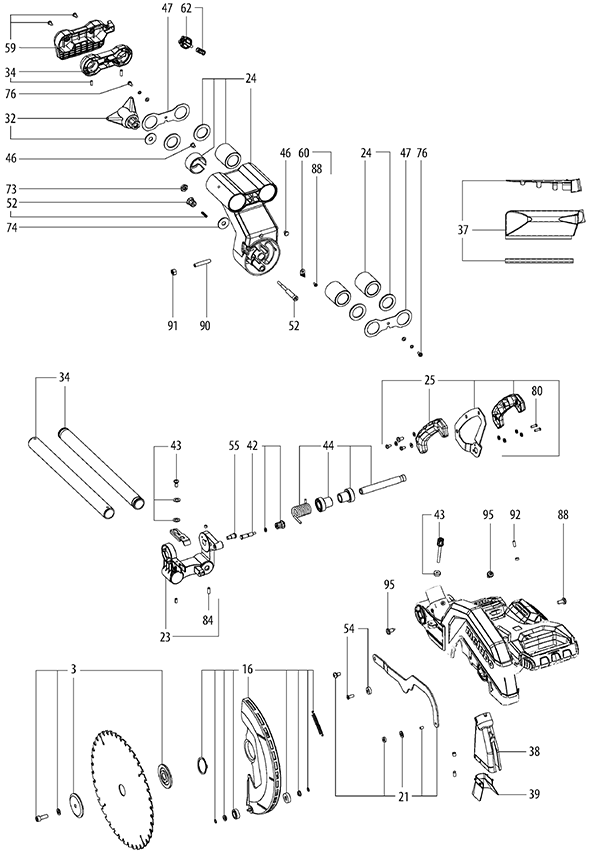

Metabo KGS18LTXBL305 Type 14305000

...
...
3
Flange Compl. MTB-316060640
...
16
Moving Guard Comp. MTB-316078400
...
21
Turning Lever Compl. MTB-316074100
...
23
Bracket Compl. MTB-315421150
...
24
Pivot Compl. MTB-315421170
...
25
Handle Compl. MTB-316060950
...
32
Clamping Lever MTB-343457630
...
34
Rear Pivot MTB-315421180
...
37
Dust Etraction Kit Compl. MTB-316075450
...
38
Cover Dust Collector MTB-343457600
...
39
Extraction Funnel MTB-343436280
...
42
Saw Head Lock Comp. MTB-316075470
...
43
Guide Compl. MTB-316075640
...
44
Tipping Axis Compl. MTB-316075890
...
46
Plug In Buffer MTB-344113030
...
47
Cover MTB-339139100
...
52
End Stop Cpl. MTB-316075680
...
54
Bearing Compl. MTB-316061540
...
55
Stop Screw MTB-341722210
...
59
Handle MTB-341113040
...
60
Scale Set Compl. MTB-316075910
...
62
Star Grip Screw MTB-341113050
...
73
Hexagonal Lock Nut MTB-141130890
...
74
Washer MTB-141156200
...
76
Fillister Head Screw MTB-141110590
...
80
Fillister Head Screw MTB-141116780
...
84
Hex. Socket Set Screw, Flat Pt M 6X8 Ver MTB-141124510
...
88
Fillister Head Screw MTB-141110540
...
90
Hex. Socket Set Screw, Flat Pt MTB-141124460
...
91
Hexagonal Nut MTB-141131010
...
92
Grub Screw MTB-141123410
...
95
Cross Rec'D Pan Head Tap.Screw St 4,2X9 MTB-141124470
