Metabo KFM16-15F Type 01753420 Beveling Tool

Model: KFM16-15F Type 01753420

Save Part Not Listed?
product name

Popular Parts

Popular Parts

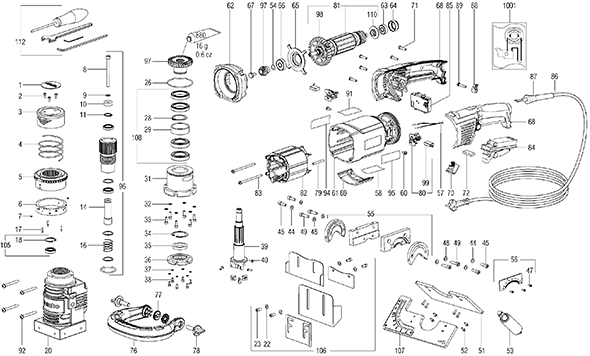

Metabo KFM16-15F Type 01753420

...
...
1
Type Label MTB-338129280
...
2
Cap Screw MTB-141121980
...
3
Cap MTB-341211790
...
4
Pressure Spring MTB-342004110
...
5
Adjusting Ring MTB-341211800
...
6
Scale MTB-341211810
...
7
Grub Screw MTB-141124550
...
8
Screw M6X70 MTB-341705380
...
9
Spring Washer MTB-141150280
...
10
Spacer Sleeve MTB-341211820
...
11
Snap Ring MTB-141180090
...
14
Bit Sleeve MTB-341211840
...
16
Pressure Spring MTB-342004120
...
17
Pin MTB-341520350
...
18
Retaining Ring MTB-141181010
...
20
Gear Housing MTB-315105590
...
22
Serrated Lock Washer MTB-6304084039
...
23
Cap Screw MTB-141113670
...
26
O-Ring MTB-143195470
...
28
Retaining Ring For Shafts 30X1,5 MTB-6400009927
...
29
Spacer Sleeve MTB-341211860
...
31
Housing MTB-341211870
...
32
Serrated Lock Washer MTB-141150410
...
33
Cap Screw MTB-141113590
...
34
Retaining Ring MTB-141180390
...
35
Felt Ring MTB-143192050
...
36
Flange MTB-341211880
...
37
Serrated Lock Washer MTB-141152270
...
38
Cap Screw MTB-141121980
...
39
Spindle MTB-341605080
...
40
Screw, M4X10 Tx15 MTB-341705330
...
44
Serrated Lock Washer MTB-6304084039
...
45
Cap Screw MTB-141113690
...
47
Srew MTB-341722580
...
48
Spring Washer MTB-141150270
...
49
Cap Screw MTB-141113710
...
51
Guide Rail MTB-341162310
...
52
Cap Screw MTB-141121980
...
53
Roller Compl. MTB-316063400
...
54
Washer MTB-339006790
...
55
Housing Compl. MTB-316094220
...
56
Angle Compl. MTB-316094240
...
57
Strand MTB-344494680
...
58
Warning Label 52X22 MTB-338122090
...
60
Self-Tap. Fill. H. Screw MTB-141116130
...
61
Motor Housing MTB-315012780
...
62
Flange MTB-343399840
...
63
Ball Bearing, 8X22X7 MTB-143115700
...
64
Rubber Bearing MTB-344096020
...
65
Bearing Cover MTB-339137520
...
66
Ball Bearing, 9X26X8 MTB-143114990
...
67
Fastening Screw MTB-341704640
...
68
Handle (Upper+Under Part) MTB-343376670
...
69
Cover MTB-343376650
...
70
Locking Lever MTB-343376680
...
71
Self-Tap Fill H Screw MTB-141116020
...
72
Sperrglied MTB-339136920
...
76
Loop Handle Compl. MTB-343399690
...
77
Slotted Disc MTB-341071240
...
78
Thumbscrew Compl. MTB-341112850
...
79
Insulating Hose MTB-339040970
...
80
Brush Holder Cp 120V MTB-316032100
...
81
Armature Compl.,120V MTB-310010320
...
82
Field W.Coil MTB-311011770
...
83
Self-Tap. Fill. H. Screw MTB-141123340
...
84
Switch MTB-343410670
...
85
Electronic Unit, 120V/50-60Hz MTB-343083820
...
86
Cable With Plug MTB-344490920
...
87
Cable Sleeve MTB-344100970
...
88
Cable Clip MTB-343362490
...
89
Self-Tap. Fill. H. Screw MTB-141117060
...
91
Indication Label Warning MTB-338127220
...
92
Fillister Head Screw MTB-141118800
...
94
Rating Plate MTB-338066450
...
95
M-Label, 08 52X22 MTB-338122160
...
96
Threaded Ring Inside Compl. MTB-316094180
...
97
Bevel Gear MTB-316094200
...
98
Fan W. Prot. Grid MTB-316032610
...
99
Brush Set 120V MTB-316034690
...
105
Ball Bearing Compl. MTB-316094930
...
106
Protection Plate Compl. MTB-316094950
...
107
Guide Rail Compl. MTB-316094960
...
108
Ball Bearing Compl. MTB-316094940
...
110
Sealing Washer MTB-343376620
...
112
Screwdriver Set MTB-316064340
...
880
Grease 50Gr 1,8Oz MTB-344130970
...
1001
Wiring Diagram MTB-338506060
Schematic Image Zoomed
