Metabo BS18LTXBL Quick Type 02197000 Cordless Drill Driver

Model: BS18LTXBL Quick Type 02197000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Metabo BS18LTXBL Quick Type 02197000

...
...
1
Motor, 18V MTB-317004200
...
2
Fillister Head Screw MTB-141122220
...
3
Poti Switch MTB-343410550
...
4
Electronic MTB-343083150
...
5
Selector Wheel Compl. MTB-343083630
...
6
Press Button Compl. MTB-343083210
...
7
Insulating Hose MTB-339040970
...
8
Housing W.Cover MTB-343432480
...
9
Locking Slide MTB-343433300
...
10
Locking Piece MTB-343430520
...
11
Pressure Spring MTB-342003030
...
12
Switch Slide, R/L MTB-343433260
...
13
Switch Slide Compl. MTB-316051650
...
14
Self-Tap. Fill. H. Screw MTB-141113180
...
15
Gear-Box Compl.,Quick MTB-316051390
...
16
Flange, Bldc MTB-315202750
...
17
Rating Plate MTB-338059400
...
18
Indication Label MTB-338123980
...
20
Type Label, Bs 18Ltx Bl Quick MTB-338124470
...
22
Indication Label MTB-338129940
...
50
Side Support Handle Compl. MTB-314001030
...
51
Bit-Depot 18V MTB-343448690
...
52
Hook MTB-339137270
...
99
Indication Label,Warning MTB-338124510
...

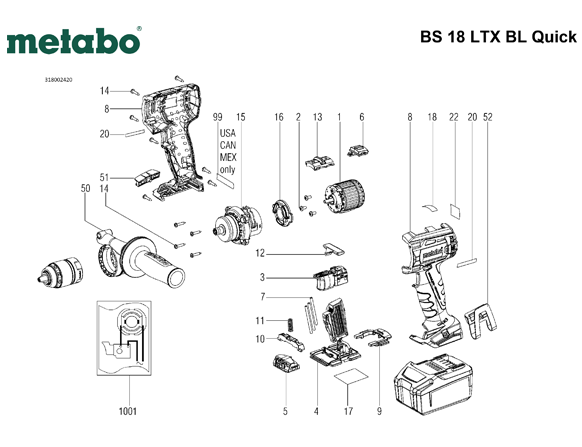

1001
Diagram MTB-338505820
