product name

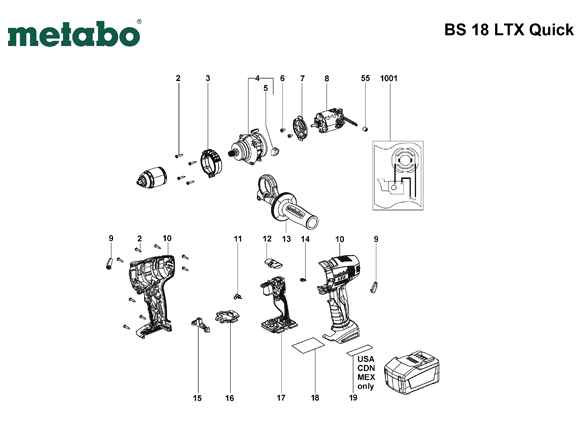

Metabo BS18LTX Quick Type 02109000 Cordless Drill Driver

Model: BS18LTX Quick Type 02109000

Save Part Not Listed?
product name

Metabo BS18LTX Quick Type 02109000

...
...
2
Self-Tap. Fill. H. Screw MTB-141113180
...
3
Screwdriber-Bit Depot MTB-343396590
...
4
Gear-Box Compl. MTB-316049780
...
5
Electronic Unit, 6-20V MTB-343081780
...
6
Fillister Head Screw MTB-141119850
...
7
Motor Flange MTB-343393960
...
8
Dc-Motor, 18V MTB-317003690
...
9
Shift Element MTB-343394150
...
10
Housing W.Cover MTB-343394810
...
11
Spring Clip MTB-342021670
...
12
Switch Slide MTB-343394800
...
13
Side Support Handle Compl. MTB-314001140
...
14
Flat Spring MTB-342050860
...
15
Pressure Plate MTB-343394770
...
16
Switch Slide MTB-343394790
...
17
Electronic Switch 18 V Impuls MTB-343408680
...
18
Rating Plate MTB-338054370
...
19
Part Not Needed MTB-399999990
...
55
Ferrite Bead MTB-143160070
...
1001
Wiring Diagram MTB-338504870
