Metabo BS18LTX Impuls Type 02145000 Cordless Drill Driver

Model: BS18LTX Impuls Type 02145000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

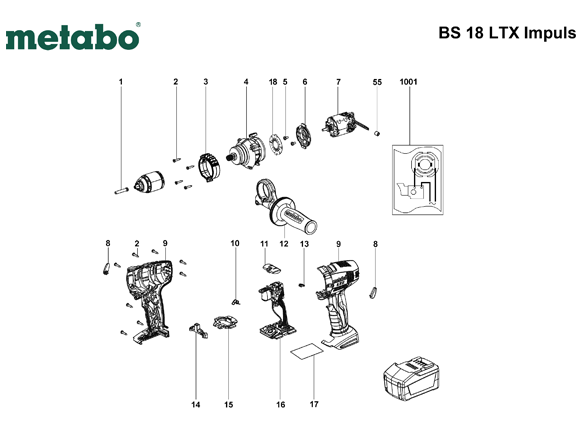

Metabo BS18LTX Impuls Type 02145000

...
...
1
Cheese-Head Screw MTB-341701940
...
2
Self-Tap. Fill. H. Screw MTB-141113180
...
3
Screwdriber-Bit Depot MTB-343396590
...
4
Gear-Box Compl. MTB-316043190
...
5
Fillister Head Screw MTB-141119850
...
6
Motor Flange MTB-343393960
...
7
Dc-Motor,18 V MTB-317003690
...
8
Shift Element MTB-343394150
...
9
Housing W.Cover MTB-343394810
...
10
Spring Clip MTB-342021670
...
11
Switch Slide MTB-343394800
...
12
Side Support Handle Compl. MTB-314001140
...
13
Flat Spring MTB-342050860
...
14
Pressure Plate MTB-343394770
...
15
Switch Slide MTB-343394790
...
16
Electronic Switch 18 V Impuls MTB-343408680
...
17
Rating Plate MTB-338051750
...
18
Cup Spring, K MTB-141156390
...
55
Ferrite Bead MTB-143160070
...
1001
Wiring Diagram MTB-338504870
