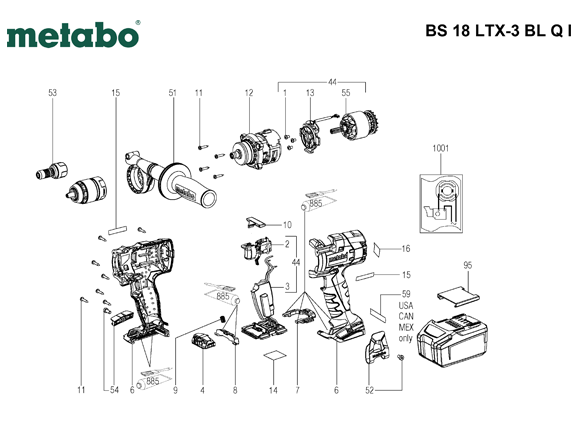

Metabo BS18LTX-3BLQI Type 02355000 Cordless Drill Driver

Model: BS18LTX-3BLQI Type 02355000

Save Part Not Listed?
product name

Metabo BS18LTX-3BLQI Type 02355000

...
...
1
Fillister Head Screw MTB-141122220
...
2
Poti-Switch Dx13-1001 MTB-343412620
...
3
Electronic Unit Compl. MTB-343085740
...
4
Selector Wheel Compl. MTB-343083610
...
6
Housing W.Cover MTB-343438360
...
7
Locking Slide MTB-343438580
...
8
Locking Piece MTB-343430520
...
9
Pressure Spring MTB-342004070
...
10
Switch Slide, R/L MTB-343433260
...
11
Self-Tap. Fill. H. Screw MTB-141113180
...
12
Gear-Box Compl.,Bs Quick MTB-316062150
...
13
Flange With Elektronic MTB-316065130
...
14
Rating Plate MTB-338066610
...
15
Type Label,Sb 18 Ltx Bl I MTB-338127590
...
16
Indication Label MTB-338129940
...
44
Motor Compl. With Electronic MTB-316066970
...
51
Side Support Handle Compl. MTB-314001020
...
52
Hook MTB-339137270
...
53
Bit Holding Sleeves MTB-316047360
...
54
Bit-Depot 18 V MTB-343448690
...
55
Motor Compl. MTB-316063770
...
95
Cover Cap MTB-343439680
...
885
Contact Grease MTB-136010950
...
1001
Diagram MTB-338506100

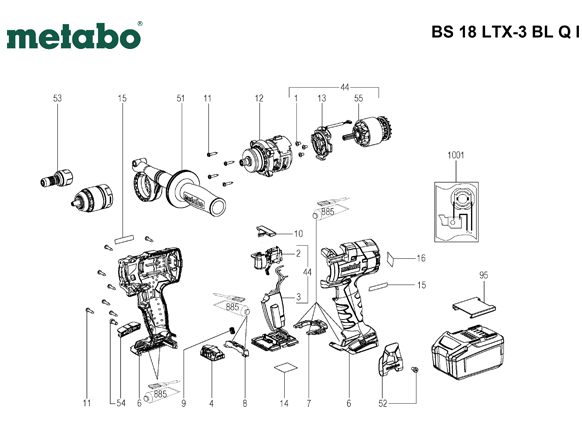

Metabo BS18LTX-3BLQI Type 02355000

...
...
