Metabo BS18LTBLQ Type 02334000 Cordless Drill Driver

Model: BS18LTBLQ Type 02334000

Save Part Not Listed?
product name

Metabo BS18LTBLQ Type 02334000

...
...
1
Fillister Head Screw MTB-141122220
...
2
Poti-Switch Dx13-1001 MTB-343412620
...
3
Switch And Electronic MTB-316065410
...
4
Housing W.Cover MTB-343437920
...
5
Self-Tap. Fill. H. Screw MTB-141113180
...
6
Switch Slide, R/L MTB-343437930
...
7
Switch Slide Compl.,H/L MTB-316062300
...
8
Locking Slide MTB-343438580
...
9
Locking Piece MTB-343430520
...
10
Pressure Spring MTB-342004070
...
11
Gear-Box Compl. MTB-316062200
...
12
Rating Plate MTB-338066300
...
13
Indication Label MTB-338129940
...
14
Type Label, Bs 18 Lt Bl Q MTB-338127510
...
17
Gear Flange MTB-315202990
...
20
Hook MTB-339137270
...
21
Bit-Depot 18 V MTB-343448690
...
23
Bit Holding Sleeves MTB-316047360
...
25
Motor W.Pinion MTB-316063650
...
26
Motor Compl. With Electronic MTB-316066940
...
95
Cover Cap MTB-343439680
...
850
Chuck Futuro Plus S1M Quick MTB-627240000
...
1001

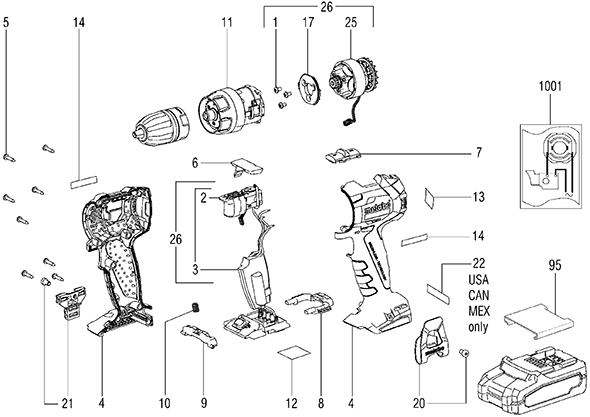

Diagram MTB-338506080
