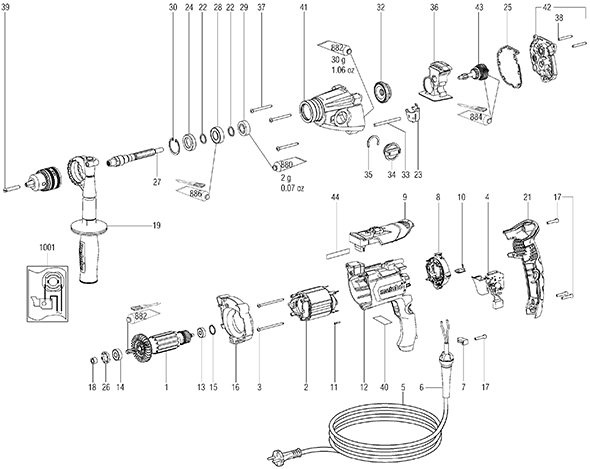

Metabo BEV1300-2 Type 00574420 Drill

Model: BEV1300-2 Type 00574420

Save Part Not Listed?
product name

Metabo BEV1300-2 Type 00574420

...
...
1
Armature Compl.,120 V MTB-310012120
...
2
Field Coil W.Field Coil, 120V MTB-311010930
...
3
Self-Tap. Fill. H. Screw MTB-141118260
...
4
Poti Switch MTB-343410950
...
5
Cable With Ul-Csa-Plug MTB-344494030
...
6
Cable Sleeve MTB-343394300
...
7
Cable Clip MTB-343362490
...
8
Brush Holder Module, 230V MTB-316051960
...
9
Electronic Unit, 120V 50/60Hz MTB-343084850
...
10
Brush Contact MTB-339129390
...
11
Temperature Sensor MTB-343081600
...
12
Motor Housing MTB-315013700
...
13
Ball Bearing, 6X19X6 MTB-143115690
...
14
Ball Bearing, 8X22X7 MTB-143114880
...
15
O-Ring MTB-143192430
...
16
Intermediate Flange MTB-343438150
...
17
Self-Tap. Fill. H. Screw MTB-141117060
...
18
Sealing Ring MTB-343376040
...
19
Side Support Handle Compl. MTB-314001020
...
21
Handle Cover MTB-343438030
...
22
Ring MTB-339006750
...
23
Shift Fork MTB-339133070
...
24
Shaft Sealing Ring MTB-339210920
...
25
Seal MTB-344101830
...
26
Rubber Buffer MTB-344095920
...
27
Spindle MTB-341604920
...
28
Ball Bearing, 15X32X9 MTB-143115790
...
29
Slotted Disc MTB-341055650
...
30
Retaining Ring MTB-141181680
...
32
Sliding Block MTB-340004410
...
33
Guide Bolt MTB-341540230
...
34
Control Knob Compl. MTB-316062600
...
35
Ring MTB-141155810
...
36
Dummy Plug MTB-343439940
...
37
Self-Tap. Fill. H. Screw MTB-141118840
...
38
Cylindrical Pin MTB-341520230
...
39
Cheese-Head Screw MTB-341701940
...
40
Rating Plate MTB-338067980
...
41
Gear Housing Compl. MTB-316064620
...
42
Gear Flange Cpl. MTB-316064590
...
43
Pinion Shaft W. Clutch MTB-316064560
...
44
Warning Label 50 X 16 MTB-338121950
...
880
Grease 50Gr 1,8Oz MTB-344130930
...
882
Grease Fg 126 MTB-344130800
...
884
Grease Sf 011 50Gr 1,8Oz MTB-344130560
...
886
Grease 50Gr 1,8Oz MTB-344131030
...
1001
Wiring Diagram 230V / 120V MTB-338506120
