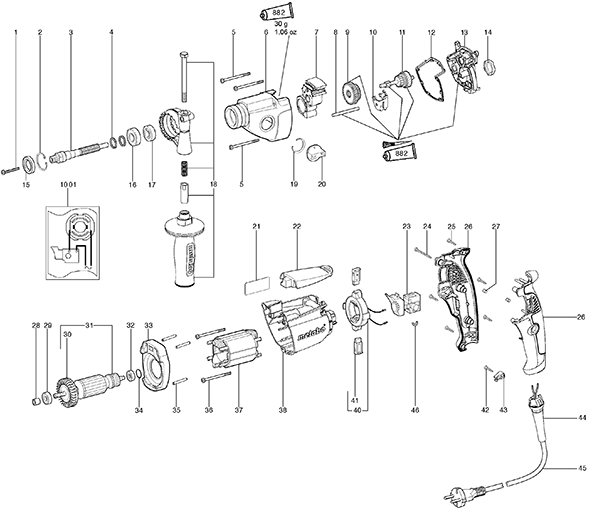

Metabo BE751IK Type 21048000 Drill

Model: BE751IK Type 21048000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Metabo BE751IK Type 21048000

...
...
1
Cheese-Head Screw MTB-341701940
...
2
Retaining Ring MTB-141181680
...
3
Drill Spindle MTB-341604020
...
4
Ring MTB-339006750
...
5
Self-Tap. Fill. H. Screw MTB-141123610
...
6
Gear Housing Cpl. MTB-316047530
...
7
Cover MTB-343397180
...
8
Guide Bolt MTB-341540010
...
9
Sliding Block MTB-340004010
...
10
Shift Fork MTB-339133070
...
11
Pinion Shaft W.Slip-Clutch MTB-316042820
...
12
Seal MTB-344097930
...
13
Gear Flange Compl. MTB-316042800
...
14
Rubber Buffer MTB-344095920
...
15
Shaft Sealing Ring MTB-339210920
...
16
Ball Bearing, 15X32X9 MTB-143115790
...
17
Slotted Disc MTB-341055650
...
18
Side Support Handle Compl. MTB-314001030
...
19
Ring MTB-141155810
...
20
Control Knob Compl. MTB-316041960
...
21
Rating Plate MTB-338068310
...
22
Cover W.O. Electronic MTB-343394070
...
23
Electronic Switch With Dial MTB-343409220
...
24
Self-Tap. Fill. H. Screw MTB-141116990
...
25
Self-Tap Fill H Screw MTB-141116020
...
26
Pistol Grip 2-Part, Gummed MTB-343398530
...
27
Rubber Plug MTB-344097580
...
28
Sealing Ring MTB-343376040
...
29
Ball Bearing, 8X22X7 MTB-143115800
...
30
Fan MTB-330001820
...
31
Armature Compl., 230 V MTB-310009220
...
32
Ball Bearing, 6X 19X 6 MTB-143115810
...
33
Intermediate Flange MTB-343394750
...
34
O-Ring MTB-143192430
...
35
Cylindrical Pin MTB-341520230
...
36
Self-Tap. Fill. H. Screw MTB-141118260
...
37
Field Coil W.Field Coil, 230 V MTB-311010790
...
38
Motor Housing MTB-315013250
...
40
Brush Holder Module, 230V - V-El. 850W MTB-316051990
...
41
Carbon Brush Set, 230 V MTB-316046950
...
42
Self-Tap. Fill. H. Screw MTB-141117060
...
43
Cable Clip MTB-343362490
...
44
Cable Sleeve MTB-343394300
...
45
Cable With Plug MTB-344493180
...
46
Slotted Ring MTB-339041040
...
882
Grease Fg 126 MTB-344130800
...
1001
Wiring Diagram, 230 V MTB-338505150
