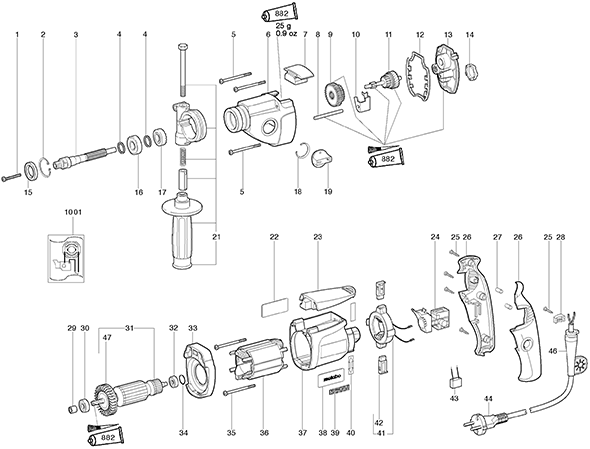

Metabo BE710 Type 00830420 Drill

Model: BE710 Type 00830420

Save
 Part Not Listed?Part Not Listed?
product name

Metabo BE710 Type 00830420

...
...
1
Cheese-Head Screw MTB-341701940
...
2
Retaining Ring MTB-141181680
...
3
Drill Spindle MTB-341603640
...
4
Ring MTB-339006750
...
5
Self-Tap. Fill. H. Screw MTB-141122490
...
6
Gear Housing Cpl. MTB-316035300
...
7
Cover With Seal MTB-343378830
...
8
Guide Bolt MTB-341540010
...
9
Sliding Block MTB-340004010
...
10
Shift Fork MTB-339129270
...
11
Intermediate Gear MTB-316030370
...
12
Seal MTB-344095910
...
13
Gear Flange Cpl. MTB-316031000
...
14
Rubber Buffer MTB-344095920
...
15
Shaft Sealing Ring MTB-339210830
...
16
Ball Bearing, 15X32X9 MTB-143110220
...
17
Slotted Disc MTB-341055650
...
18
Ring MTB-141155810
...
19
Control Knob Cpl. MTB-316029530
...
21
Supporting Handle Cpl. MTB-314000630
...
22
Rating Plate MTB-338043900
...
23
Cover W.O. Electronic MTB-343374280
...
24
Electronic Switch 120V MTB-343406930
...
25
Self-Tap. Fill. H. Screw MTB-141117060
...
26
Pistol Grip 2 Piece MTB-343393020
...
27
Rubber Plug MTB-344092220
...
28
Cable Clip MTB-343362490
...
29
Sealing Ring MTB-343376040
...
30
Ball Bearing, 8X22X7 MTB-143115800
...
31
Armature Cpl. 120V MTB-310007870
...
32
Ball Bearing, 6X19X6 MTB-143115660
...
33
Intermediate Flange MTB-343374270
...
34
O-Ring MTB-143192430
...
35
Self-Tap. Fill. H. Screw MTB-141118260
...
36
Field Coil 120V MTB-311009830
...
37
Motor Housing MTB-315012650
...
38
M-Label, 08 52X22 MTB-338122160
...
39
Warning Label MTB-338115880
...
40
Indication Label MTB-338115410
...
41
Brush Holder Module MTB-316028100
...
42
Brush Set 230V/120V MTB-316034550
...
43
Part Not Needed MTB-399999990
...
44
Cable With Ul-Csa-Plug MTB-344494030
...
46
Cable Sleeve MTB-344101160
...
47
Fan W. Prot. Grid MTB-316035730
...
882
Grease 50Gr 1, 8Oz MTB-344130970
...
1001
Diagram MTB-338502440
...
...
...
