product name

Metabo BE622SR+L Type 00626421 Drill

Model: BE622SR+L Type 00626421

Save
 Part Not Listed?Part Not Listed?

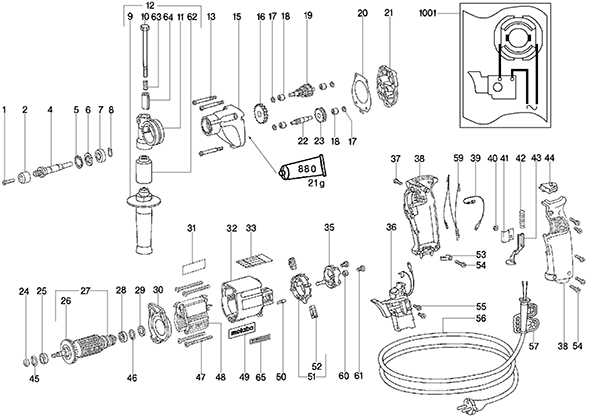

product name

Metabo BE622SR+L Type 00626421

...
...
1
Cheese-Head Screw MTB-341701940
...
2
Bit Retaining Bush MTB-631281000
...
4
Spindle MTB-341602990
...
5
Retaining Ring MTB-141181560
...
6
Cover Plate MTB-343362170
...
7
Ball Bearing, 12X28X8 MTB-143111440
...
8
Retaining Ring MTB-141180060
...
9
Handle MTB-314000550
...
10
Hexagon Head Screw MTB-141121470
...
11
Clamping Piece MTB-343359780
...
12
Side Support Handle, Extra Long Type MTB-631074000
...
13
Tight-Fit Screw Plast. 45 MTB-341702180
...
15
Gear Housing Cpl. MTB-316024070
...
16
Spur Gear MTB-340011640
...
17
Butting Washer MTB-339001290
...
18
Needle Sleeve MTB-143111430
...
19
Intermediate Gear MTB-316022930
...
20
Gasket MTB-339210270
...
21
Gear Flange Cpl. MTB-316022940
...
22
Pinion Shaft MTB-340011630
...
23
Spur Gear MTB-340011620
...
24
Sealing Ring MTB-343356500
...
25
Ball Bearing, 8X22X7 MTB-143114880
...
26
Fan Cpl. MTB-330001060
...
27
Armature Cpl. 115 V MTB-310006220
...
28
Ball Bearing, 6X19X6 MTB-143115660
...
29
Washer MTB-141153400
...
30
Intermediate Flange MTB-343361780
...
31
Rating Plate MTB-338027700
...
32
Motor Housing MTB-315012320
...
33
Indication Label MTB-338113460
...
35
Pressure Plate Cpl. MTB-316021020
...
36
Electronic Unit 120 V MTB-343072460
...
37
Screw MTB-341702050
...
38
Pistol Grip MTB-343362350
...
39
Strand Cpl. Awg18Sw MTB-344490150
...
40
Circlip MTB-141181760
...
41
Cover MTB-339111020
...
42
Pressure Spring MTB-342001210
...
43
Locking Catch MTB-343362460
...
44
Cover MTB-343361770
...
45
O-Ring MTB-143192570
...
46
O-Ring MTB-143192430
...
47
Self-Tap. Fill. H. Screw MTB-141118260
...
48
Field Coil 115 V MTB-311008880
...
49
M-Label, 56X25 MTB-338122370
...
50
Index Bolt MTB-342001140
...
51
Setting Ring Compl., R+L MTB-316025770
...
52
Brush With Holder MTB-316033740
...
53
Cable Clip MTB-343362490
...
54
Self-Tap Fill H Screw MTB-141116020
...
55
Fillister Head Screw MTB-141116970
...
56
Cable With Ul-Csa-Plug MTB-344492750
...
57
Cable Sleeve MTB-344100590
...
59
Part Not Needed MTB-399999990
...
60
Insulating Disc MTB-341052920
...
61
Self-Tap. Fill. H. Screw MTB-141116840
...
62
Extension MTB-343370240
...
63
Pressure Spring MTB-342007800
...
64
Locking Bushing MTB-343364910
...
65
Warning Label MTB-338115880
...
880
Grease Sgf 079 MTB-344130270
...
1001
Diagram MTB-338500130
...
...
...
