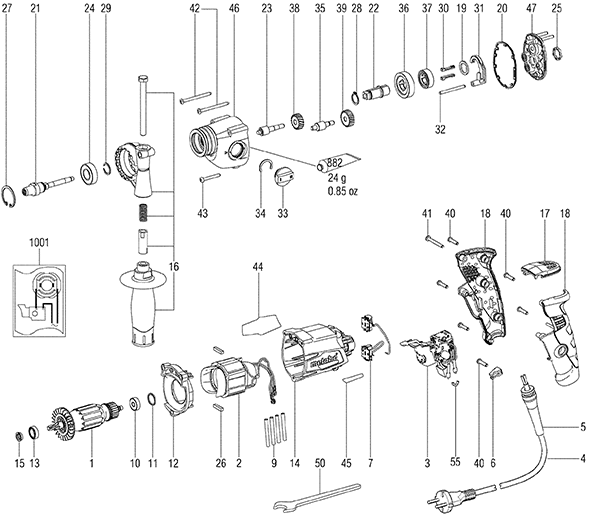

Metabo BE600 13-2IK Type 21035000 Drill

Model: BE600 13-2IK Type 21035000

Save Part Not Listed?
product name

Metabo BE600 13-2IK Type 21035000

...
...
1
Armature Compl., 230V MTB-310011100
...
2
Feldpaket Vollst, 230V MTB-311012120
...
3
Electronic Switch With Dial, 230 V MTB-343410370
...
4
Cable With Plug MTB-344493180
...
5
Cable Sleeve MTB-344101140
...
6
Cable Clip MTB-343362490
...
7
Brush Holder Compl., 230 V MTB-316054740
...
9
Insulating Hose MTB-339040970
...
10
Ball Bearing, 6X 19X 6 MTB-143115810
...
11
O-Ring MTB-143192430
...
12
Intermediate Flange MTB-343434360
...
13
Ball Bearing, 10X19X5 MTB-143115570
...
14
Motor Housing MTB-315013610
...
15
Sealing Ring MTB-343434430
...
16
Side Support Handle MTB-314001280
...
17
Insert MTB-343434600
...
18
Housing W.Cover MTB-343434340
...
19
Washer MTB-339007750
...
20
Seal MTB-344099610
...
21
Spindle MTB-341604600
...
22
Hollow Shaft MTB-341210750
...
23
Pinion Shaft MTB-340012920
...
24
Ball Bearing, 15X32X9 MTB-143115790
...
25
Rubber Buffer MTB-344099600
...
26
Rubber Plug MTB-344093350
...
27
Retaining Ring MTB-141181680
...
28
Snap Ring MTB-141180090
...
29
Circlip MTB-141156010
...
30
Slinding Wedge MTB-341071380
...
31
Shift Fork MTB-343434240
...
32
Guide Bolt MTB-341540200
...
33
Control Knob Compl. MTB-316054780
...
34
Ring MTB-141156670
...
35
Pinion Shaft MTB-340012930
...
36
Gear Wheel MTB-340012980
...
37
Gear Wheel MTB-340012970
...
38
Gear Wheel MTB-340012900
...
39
Gear Wheel MTB-341071410
...
40
Self-Tap Fill H Screw MTB-141116020
...
41
Self-Tap. Fill. H. Screw MTB-141116990
...
42
Self-Tap. Fill. H. Screw MTB-141122480
...
43
Self-Tap. Fill. H. Screw MTB-141116980
...
44
Rating Plate MTB-338065270
...
45
Type Label, Features W 22-180 MTB-338125790
...
46
Gear Housing Compl. MTB-316056970
...
47
Gear Flange Compl. MTB-316057020
...
50
Open-End Spanner MTB-344164080
...
55
Slotted Ring MTB-339041040
...
882
Grease Fg 126 MTB-344130800
...
1001
Wiring Diagram, 230V MTB-338505900
