Metabo BE561 Type 01162420 Drill

Model: BE561 Type 01162420

Save Part Not Listed?
product name

Metabo BE561 Type 01162420

...
...
1
Cheese-Head Screw MTB-341701940
...
2
Bit Retaining Bush MTB-631281000
...
3
Spindle MTB-341603980
...
4
Ball Bearing, 12X28X8 MTB-143115640
...
5
Retaining Ring MTB-141180060
...
6
Spur Gear MTB-341054650
...
7
Ball Holder MTB-320050260
...
8
Washer MTB-339005870
...
9
Pressure Plate MTB-341055040
...
10
Gear Flange Cpl. MTB-316026010
...
11
Dummy Slide MTB-343371960
...
12
Self-Tap Fill H Screw MTB-141116020
...
13
Rating Plate MTB-338050320
...
14
Warning Label MTB-338115880
...
15
Housing W.Cover Gummed MTB-343393420
...
16
Indication Label Bit Retaining Bush MTB-338121340
...
17
Rubber Plug MTB-344092220
...
18
Electronic Switch MTB-343409560
...
19
Fillister Head Screw MTB-141116970
...
20
Part Not Needed MTB-399999990
...
21
Strand MTB-344493250
...
22
Insert MTB-344103000
...
23
Cup Spring MTB-141150590
...
24
Ball Bearing, 8X22X7 MTB-143115800
...
25
Washer MTB-341055170
...
26
Armature Compl. 120V MTB-310009390
...
27
Brush Holder Cpl. MTB-316033870
...
28
Field Coil W.Field Coil, 120 V MTB-311010920
...
29
Rubber Plug MTB-344093350
...
30
Ball Bearing, 6X19X6 MTB-143115660
...
31
Strand Set MTB-344493140
...
32
Part Not Needed MTB-399999990
...
33
M-Label, 08 52X22 MTB-338122160
...
34
Cable Clip MTB-343362490
...
35
Cable Sleeve MTB-344100590
...
36
Cable With Ul-Csa-Plug MTB-344492750
...
880
Grease Gl 402 MTB-344130650
...
1001

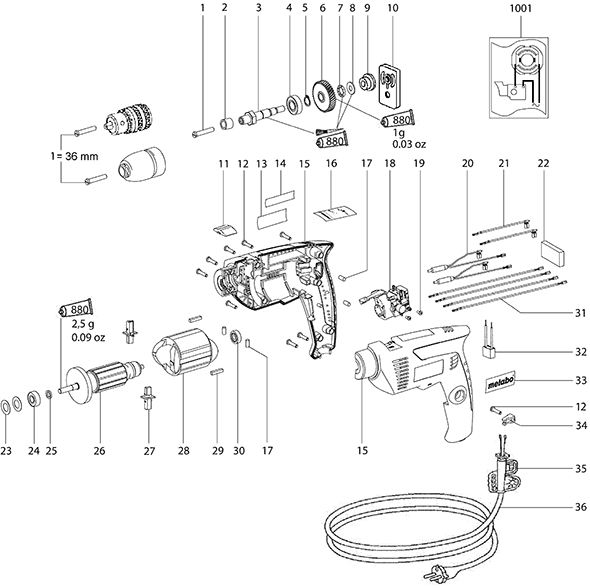

Diagram MTB-338500260
