Metabo BE1020 Type 00831420 Drill

Model: BE1020 Type 00831420

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Metabo BE1020 Type 00831420

...
...
1
Cheese-Head Screw MTB-341701940
...
2
Retaining Ring MTB-141181680
...
3
Drill Spindle MTB-341603640
...
4
Ring MTB-339006750
...
5
Self-Tap. Fill. H. Screw MTB-141122490
...
6
Gear Housing Cpl. MTB-316035300
...
7
Cover With Seal MTB-343378830
...
8
Guide Bolt MTB-341540010
...
9
Sliding Block MTB-340004010
...
10
Shift Fork MTB-339129270
...
11
Intermediate Gear MTB-316030380
...
12
Seal MTB-344095910
...
13
Gear Flange Cpl. MTB-316031000
...
14
Rubber Buffer MTB-344095920
...
15
Shaft Sealing Ring MTB-339210830
...
16
Ball Bearing, 15X32X9 MTB-143110220
...
17
Slotted Disc MTB-341055650
...
18
Ring MTB-141155810
...
19
Control Knob Cpl. MTB-316029530
...
21
Support Handle Cpl. MTB-314000790
...
22
Rating Plate MTB-338043910
...
23
Vtc Electronic Signal MTB-343077520
...
24
Poti Switch 230V MTB-343406880
...
25
Self-Tap. Fill. H. Screw MTB-141117060
...
26
Pistol Grip 2 Piece MTB-343393020
...
27
Supporting Piece MTB-343378650
...
28
Cable Clip MTB-343362490
...
29
Sealing Ring MTB-343376040
...
30
Ball Bearing, 8X22X7 MTB-143115800
...
31
Armature Cpl. 120V MTB-310007850
...
32
Ball Bearing, 6X19X6 MTB-143115660
...
33
Intermediate Flange MTB-343374270
...
34
Temperature Sensor MTB-343078020
...
35
O-Ring MTB-143192430
...
36
Self-Tap. Fill. H. Screw MTB-141118260
...
37
Field Coil 120V MTB-311009840
...
38
Motor Housing MTB-315012650
...
39
M-Label, 08 52X22 MTB-338122160
...
40
Warning Label MTB-338115880
...
41
Indication Label MTB-338115410
...
42
Brush Contact MTB-339129390
...
43
Brush Holder Module 120V MTB-316030030
...
44
Carbon Brush Set MTB-316034970
...
45
Cable With Ul-Csa-Plug MTB-344494030
...
47
Cable Sleeve MTB-344101160
...
48
Fan W. Prot. Grid MTB-316035740
...
882
Grease 50Gr 1,8Oz MTB-344130970
...
1001

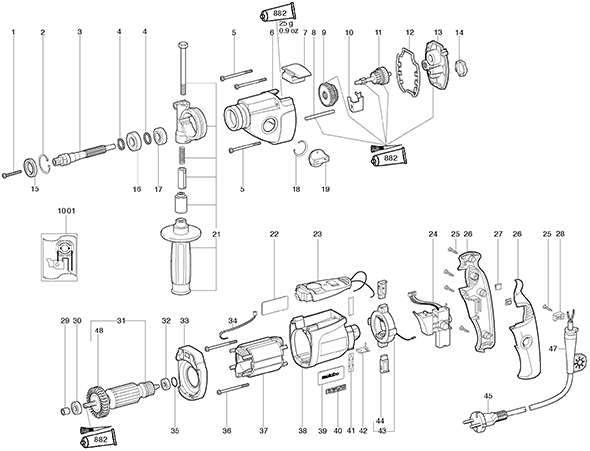

Diagram MTB-338502250
