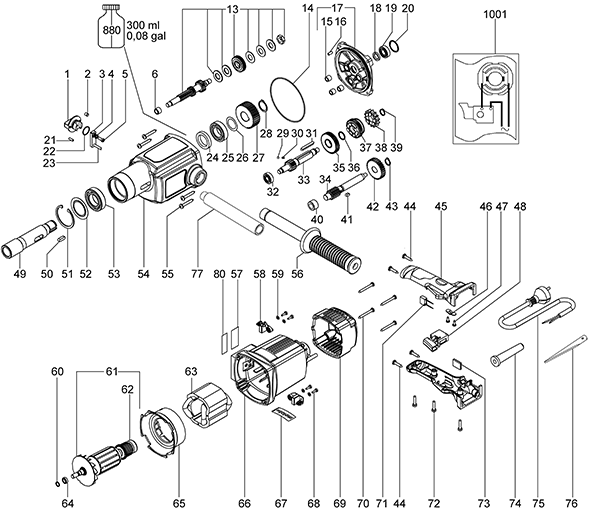

Metabo B32_3 Type 00323420 Drill

Model: B32_3 Type 00323420

Save Part Not Listed?
product name

Metabo B32_3 Type 00323420

...
...
1
Control Knob MTB-341058850
...
2
Index Bolt MTB-342003540
...
3
Switch Lever Cpl. MTB-316043210
...
4
Circlip MTB-141156430
...
5
Cap Screw MTB-141113680
...
6
Needle Sleeve MTB-143115130
...
13
Clutch Cpl. MTB-316043200
...
14
O-Ring MTB-143195190
...
15
Needle Sleeve MTB-143115120
...
16
Cylindrical Pin MTB-141164000
...
17
Gear Flange Compl. MTB-316043220
...
18
Shaft Sealing Ring MTB-143195170
...
19
Ball Bearing, 12X28X8 MTB-143114800
...
20
Retaining Ring MTB-141164010
...
21
Cylindrical Pin MTB-141163980
...
22
O-Ring MTB-143195180
...
23
Cylindrical Pin MTB-141164020
...
24
Shaft Seal MTB-143192880
...
25
Grooved Ball Bearing MTB-143115150
...
26
Shim MTB-141156410
...
27
Spindle Wheel MTB-340003880
...
28
Sicherungsring MTB-141181080
...
29
Ball MTB-143120080
...
30
Pressure Spring MTB-342003530
...
31
Parallel Key MTB-141140190
...
32
Grooved Ball Bearing MTB-143115140
...
33
Pinion Shaft MTB-340003960
...
34
Pinion Shaft MTB-340003970
...
35
Gear Wheel MTB-340003920
...
36
Circlip MTB-141164080
...
37
Sliding Block MTB-340003950
...
38
Gear Wheel MTB-340003930
...
39
Retaining Ring MTB-141180080
...
40
Needle Bearing MTB-143115110
...
41
Fitting Spring MTB-141140080
...
42
Intermediate Gear MTB-340003940
...
43
Snap Ring MTB-141180090
...
44
Fillister Head Screw W.Fillister Head Sr MTB-141123630
...
45
Handle Half Pair MTB-343394850
...
46
Clamp MTB-339160750
...
47
Self-Tap. Fill. H. Screw MTB-341701460
...
48
Switch MTB-343408880
...
49
Spindle MTB-341604060
...
50
Passfeder MTB-141140140
...
51
Circlip MTB-141180870
...
52
Washer MTB-339007170
...
53
Ball Bearing, 30X 55X 13 MTB-143112270
...
54
Gear Housing MTB-315104780
...
55
Fillister Head Screw MTB-141123640
...
56
Side Support Handle MTB-314001120
...
57
Rating Plate MTB-338051930
...
58
Carbon Brush Set, 120V MTB-343012450
...
59
Lock Washer MTB-141156400
...
60
Circlip MTB-342022150
...
61
Armature Cpl. 120V MTB-310009540
...
62
Bearing Cap MTB-343394830
...
63
Field Coil Assembly W.Field Coil, 120V MTB-311011050
...
64
Bush MTB-341005780
...
65
Baffle MTB-339151120
...
66
Motor Housing MTB-315013280
...
67
M-Label, 08 52X22 MTB-338122160
...
68
Fill. Head Screw MTB-141120070
...
69
Motor Cap MTB-343394840
...
70
Self-Tap. Fill. H. Screw MTB-141119370
...
71
Interference Suppr. Cond. MTB-343254520
...
72
Self-Tap. Fill. H. Screw MTB-141119380
...
73
Cover Plate MTB-343395400
...
74
Cable Sleeve MTB-344098420
...
75
Cable With Plug MTB-344490920
...
76
Drift Key Mk 3 MTB-642396000
...
77
Part Not Needed MTD-399999990
...
80
Warning Label MTB-338115880
...
880
Oil MTB-344131190
...
1001
Wiring Diagram, 230V MTB-338504790
