McCulloch MT780 41BD780G977 Gas String Trimmer

Model: MT780 41BD780G977 41BD780G977 MT780

Save Part Not Listed?
product name

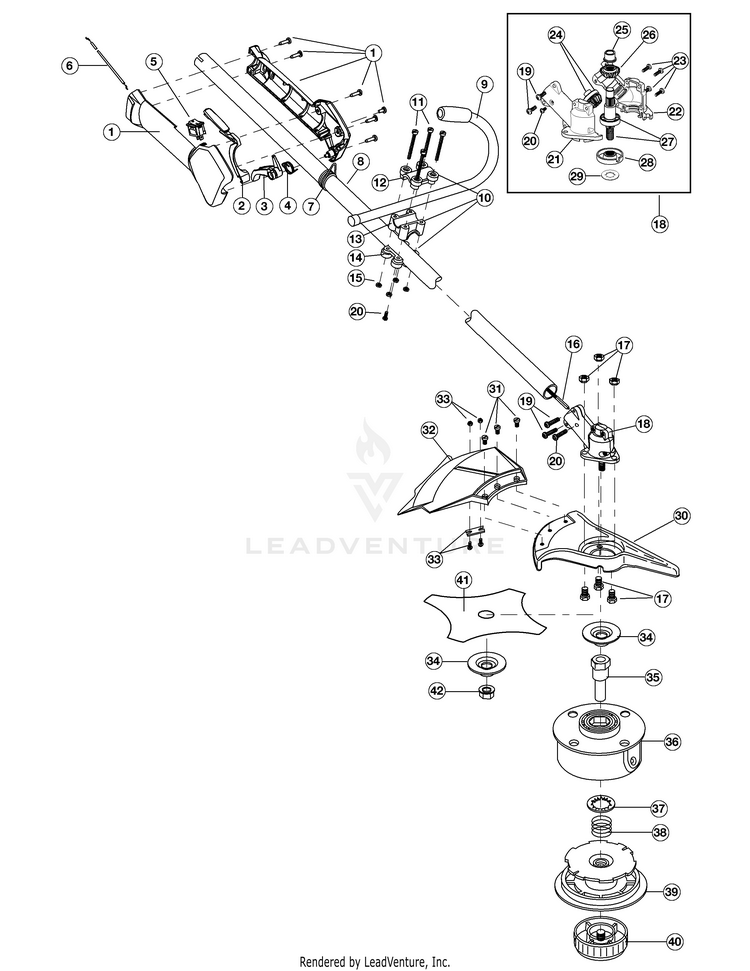

Boom and Trimmer

...
...
1
THROTTLE HOUSING AS MTD-791-182801
...
2
THROTTLE LOCKOUT LEVEL MTD-791-182802
...
3
THROTTLE TRIGGERBC:MTD MTD-753-06754
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Switch Assembly (includes 6) MTD-791-182405
...
6
ACL Throttle Cable MTD-746-04085A
...
7
SHOULDER STRAP CLAMP MTD-4301A
...
7
Harness Clip MTD-791-610327
...
8
DRIVE SHAFT HOUSING ASSEMBLY MTD-791-147486
...
9
J-Handle Assembly MTD-791-181099
...
10
Handle Bracket Assembly (includes 13-15 & 20) MTD-791-683295
...
11
Screw MTD-791-181811
...
12
Upper Handle Clamp MTD-791-181812
...
13
Middle Handle Clamp MTD-791-181813
...
14
Lower Handle Clamp MTD-791-181814
...
15
Nut MTD-791-181815
...
16
Flexible Drive Shaft MTD-791-181817
...
17
Shield Mount Screw Assembly MTD-791-182200
...
18
2 piece Gearbox Assembly (includes 19-29) MTD-791-182193
...
19
SCREW #10-24X11/16 T-25 MTD-791-182195
...
20
Anti-Rotation Screw MTD-791-145569
...
21
LEFT HOUSING MTD-791-182191
...
22
RIGHT HOUSING MTD-791-182192
...
23
SCREW #10-24X11/16 T-25 MTD-791-182195
...
24
Pinion Gear Assembly MTD-791-182194
...
25
BUSHING-OUTPUT SHA MTD-791-182199
...
26
GEAR-OUTPUT SHAFT MTD-791-182198
...
27
SHAFT-ASSEMBLY-OUTPUT MTD-791-182197
...
28
Blade Driver MTD-791-182196
...
29
Palnut MTD-753-04348
...
30
Blade Shield/Shield Mount MTD-791-147492
...
31
Shield Mounting Screw MTD-791-683304
...
32
GUARD AND BLADE ASSEMBLY MTD-791-683299
...
33
Blade Assembly MTD-791-682061
...
34
Retaining Washer MTD-791-147490
...
35
Spool Shaft MTD-791-612483
...
36
SPOOL ASM-OUTER 3000 NLAUD MTD-791-683301
...
37
RETAINER MTD-1772
...
38
Spring MTD-791-610636B
...
39
Inner Reel MTD-791-147495
...
40
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B
...
41
4-Tooth Blade MTD-791-145873B
...
42
Nut MTD-712-04105
...
xx
Blade Retaining Kit (includes 34 & 42) (not shown) MTD-791-180014
...
xx
Locking Rod Tool (not shown) MTD-791-613226
...
xx
Shoulder Strap Assembly MTD-791-682075B
...
xx
Reel & Line Assembly optional accessory MTD-953-1156
...
xx
Reel and Line Assembly optional accessory MTD-791-147345
...
xx
Bump Head Assembly (includes 35-40) optional accessory MTD-791-147498

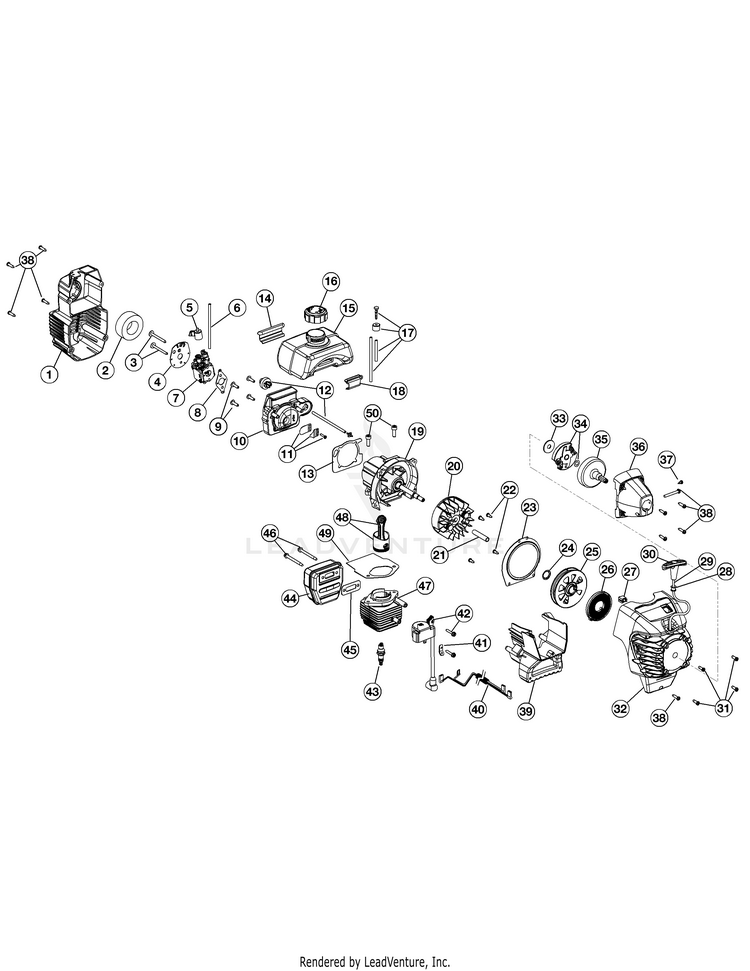

Engine

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
5
CHOKE LEVER MTD-753-04227
...
6
Fuel Return Line MTD-791-181086
...
7
Carburetor Assembly MTD-753-04338
...
8
CARBURETOR GASKET MTD-791P610675
...
9
SCREW, 10-24X.75 T-2 MTD-791-181860
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Primer and Hose Assembly MTD-791-683974B
...
13
Carburetor Mount Gasket MTD-753-1208
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
FUEL TANK ASSEMBLY MTD-791-182767
...
16
Fuel Cap Assembly MTD-791-182612
...
17
Fuel Line Assembly MTD-753-04233
...
18
PAD, FRONT MOUNTING MTD-791-145308
...
19
CRANKCASE ASSEMBLY-SERVICE MTD-753-04401
...
20
Flywheel Assembly MTD-753-05240
...
21
Spacer MTD-791-181525
...
22
Screw, 10-9 x .50 MTD-1755
...
23
RETAINER ASSEMBLY-PULLE MTD-753-04705
...
24
Pulley Retainer MTD-753-04288
...
25
START ASSEMBLY:S/A:PUL MTD-753-04823
...
26
Recoil Spring MTD-753-04286
...
27
RET:EYELET:S/A MTD-753-04824
...
28
Rope Guide MTD-791-611061
...
29
Rope MTD-791-613103
...
30
Pull Handle MTD-631-04164B
...
31
SCREW:10-32X.5 MTD-1964
...
32
HOUSING ASSEMBLY:START:MCC MTD-753-04905
...
33
Washer MTD-9162-1
...
34
Starter Clutch Assembly MTD-753-05860
...
35
Clutch Drum Assembly MTD-791-153592
...
36
ASM-CLUTCH COVER NLAUD MTD-753-04889
...
37
Anti-Rotation Screw MTD-791-182519
...
38
Cover Screw MTD-791-181345
...
39
EXT-SHROUD W/HOLE MTD-753-04702
...
40
WIRE:LEAD:RED/BK MTD-753-05025
...
41
TAB, GROUND MTD-791-611063
...
42
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
43
Spark Plug MTD-791-610311B
...
44
MUFFLER ASM CAT NLAUD MTD-753-05169
...
45
Exhaust Gasket MTD-753-04619
...
46
Muffler Mounting Bolts MTD-710-04188A
...
47
Cylinder Assembly (includes 48 & 49) MTD-753-04814
...
48
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
49
Cylinder Gasket MTD-753-04182
...
50
SCREW-SET MTD-753-04361
...
xx
Piston Ring Set (items not shown) MTD-753-1209
...
xx
SCREEN-SPA MTD-753-04689
...
xx
SHORT BLOCK (items not shown) MTD-753-04812
...
xx
Clutch Springs (Qty. 2) (items not shown) MTD-791-181599
