McCulloch MT725 41BD725C977 Gas String Trimmer

Model: MT725 41BD725C977 41BD725C977 MT725

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
5
CHOKE LEVER MTD-753-04227
...
6
Fuel Return Line MTD-791-181086
...
7
Carburetor Assembly MTD-753-04338
...
8
CARBURETOR GASKET MTD-791P610675
...
9
SCREW, 10-24X.75 T-2 MTD-791-181860
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Primer and Hose Assembly MTD-791-683974B
...
13
Carburetor Mount Gasket MTD-753-1208
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
FUEL TANK ASSEMBLY MTD-791-182767
...
16
Fuel Cap MTD-791-182612
...
17
Fuel Line Assembly MTD-753-04233
...
18
PAD, FRONT MOUNTING MTD-791-145308
...
19
CRANKCASE ASSEMBLY-SERVICE MTD-753-04401
...
20
Flywheel Assembly MTD-753-05240
...
21
Spacer MTD-791-181525
...
22
Screw, 10-9 x .50 MTD-1755
...
23
RET ASSEMBLY:SPG ASSIST MTD-753-04928
...
24
Pulley Retainer MTD-753-04288
...
25
START ASSEMBLY:S/A:PUL MTD-753-04823
...
26
Recoil Spring MTD-753-04286
...
27
RET:EYELET:S/A MTD-753-04824
...
28
Rope Guide MTD-791-611061
...
29
Rope MTD-791-613103
...
30
Pull Handle MTD-631-04164B
...
31
Switch MTD-791-182673
...
32
SCREW:10-32X.5 MTD-1964
...
33
HOUSING ASSEMBLY:START:MCC MTD-753-04905
...
34
Washer MTD-9162-1
...
35
Starter Clutch Assembly MTD-753-05860
...
36
Clutch Drum Assembly MTD-791-153592
...
37
ASM-CLUTCH COVER NLAUD MTD-753-04889
...
38
Anti-Rotation Screw MTD-791-182519
...
39
Cover Screw MTD-791-181345
...
40
EXT-SHROUD W/HOLE MTD-753-04702
...
41
WIRE:LEAD:RED/BK MTD-794-00028
...
42
TAB, GROUND MTD-791-611063
...
43
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASM CAT NLAUD MTD-753-05169
...
46
Exhaust Gasket MTD-753-04619
...
47
Muffler Mounting Bolts MTD-710-04188A
...
48
Cylinder Assembly (includes 49 & 51) MTD-753-04814
...
49
Cylinder Gasket MTD-753-04182
...
50
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
51
Cylinder Bolt MTD-791-182723
...
xx
Piston Ring Set (Items not shown) MTD-753-1209
...
xx
SHORT BLOCK MTD-753-04812
...
xx
Clutch Springs (Qty. 2) (Items not shown) MTD-791-181599

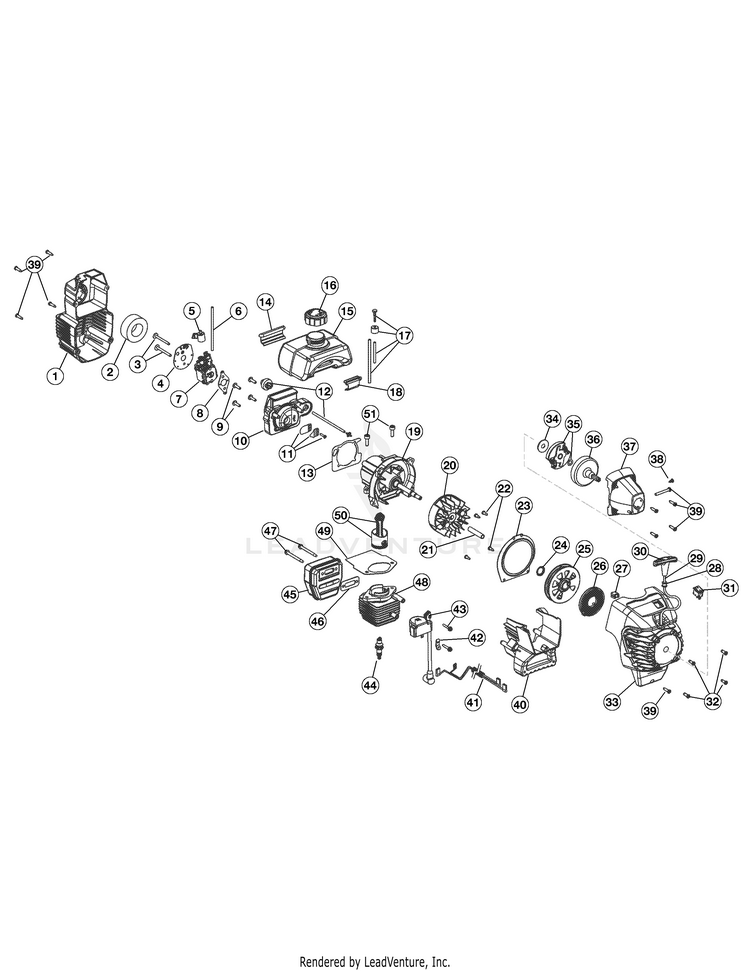

Schematic Image Zoomed
