McCulloch MT725 41AD725G977 Gas String Trimmer

Model: MT725 41AD725G977 41AD725G977 MT725

Save Part Not Listed?
product name

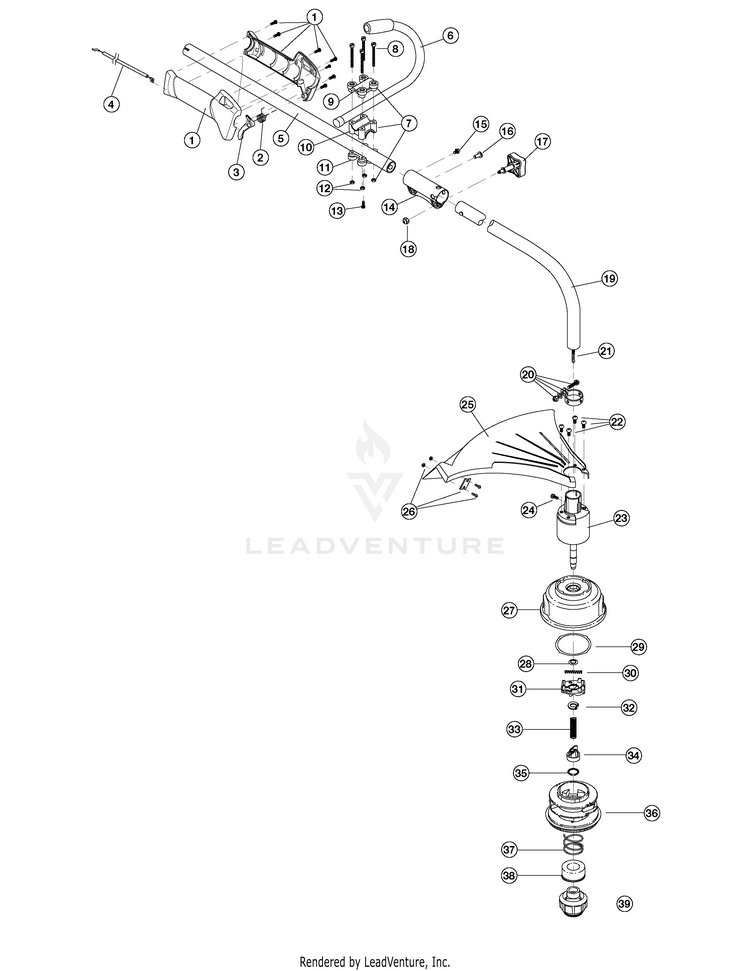

Boom and Trimmer

...
...
1
THROT GRIP ASSEMBLY:WLOOP MTD-753-04294
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable MTD-753-04405
...
5
Upper Drive Shaft Housing MTD-753-04344
...
6
ASSEMBLY, J-HANDLE (BLACK) MTD-791-180687
...
7
Handle Bracket Assembly (includes 8-13) MTD-791-683295
...
8
Screw MTD-791-181811
...
9
Upper Handle Clamp MTD-791-181812
...
10
Middle Handle Clamp MTD-791-181813
...
11
Lower Handle Clamp MTD-791-181814
...
12
Nut MTD-791-181815
...
13
Anti-Rotation Screw MTD-791-145569
...
14
Split Boom Coupler (Incl Ref No. 10-13) MTD-753-1190
...
15
Screw MTD-791-182057
...
16
Bolt MTD-791-181617
...
17
ADJUSTMENT KNO MTD-791-181618B
...
18
Adjustment Knob Nut MTD-712-04018A
...
19
Lower Drive Shaft Housing MTD-753-1218
...
20
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
21
Lower Flexible Drive Shaft MTD-791-181852
...
22
SCREW, #10-24X.50 M MTD-791-181858
...
23
BUSHING HO MTD-791-181857
...
24
Anti-Rotation Screw MTD-791-145569
...
25
SHIELD ASSEMBLY WITH BLADE MTD-791-181659
...
26
BLADE ASSEMBLY MTD-791-181823
...
27
Outer Spool Assembly (includes 28) MTD-791-181457
...
28
Retainer MTD-791-181458
...
29
Thrust Washer MTD-791-181561
...
30
SPRING, SPEED SPOOL S MTD-791-181459
...
31
Slider MTD-753-04257
...
32
E-Clip MTD-791-181532
...
33
SPRING, PLUNGER MTD-791-181531
...
34
PLUNGER, SPEED SPO MTD-791-181462
...
35
C-CLIP MTD-791-181463
...
36
Reel and Line Assembly MTD-791-181460B
...
37
Large Spring MTD-791-181465B
...
38
SEAL, SPEED SPOOL MTD-791-181467
...
39
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
xx
Reel and Line Assembly NOT SHOWN Optional Accessories MTD-791-181460B
...
xx
Shoulder Strap Assembly NOT SHOWN Optional Accessories MTD-791-682075B

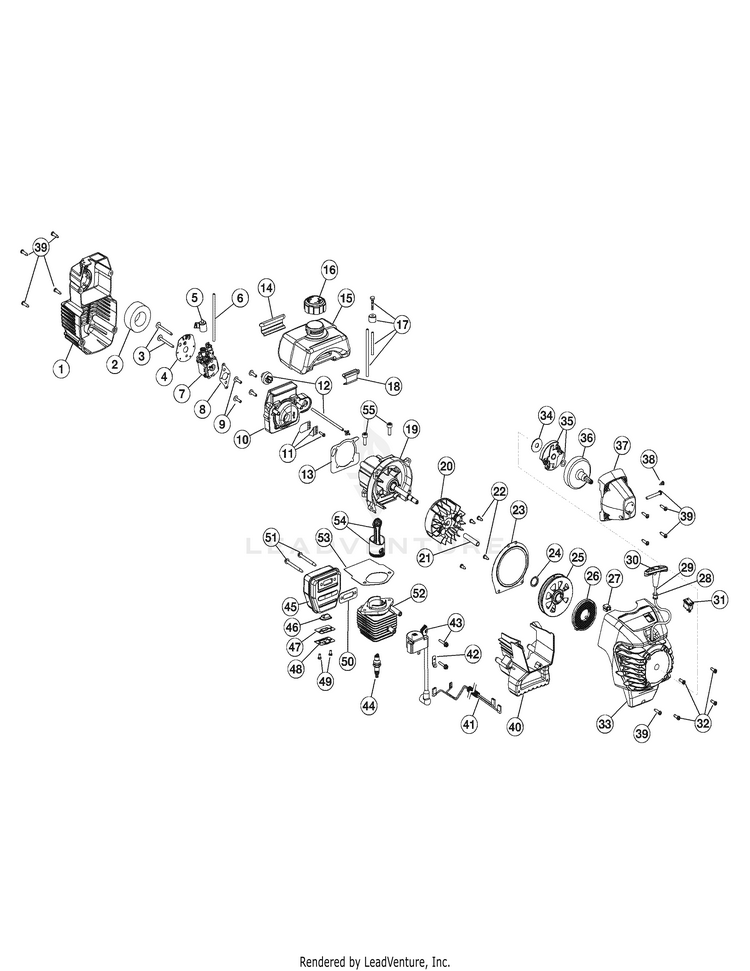

Engine

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
5
CHOKE LEVER MTD-753-04227
...
6
Fuel Return Line MTD-791-181086
...
7
Carburetor Assembly MTD-753-04338
...
8
CARBURETOR GASKET MTD-791P610675
...
9
SCREW, 10-24X.75 T-2 MTD-791-181860
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Primer and Hose Assembly MTD-791-683974B
...
13
Carburetor Mount Gasket MTD-753-1208
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
TANK ASSEMBLY:B MTD-753-04311
...
16
Fuel Cap Assembly MTD-791-182612
...
17
Fuel Line Assembly MTD-753-04233
...
18
PAD, FRONT MOUNTING MTD-791-145308
...
19
CRANKCASE ASSEMBLY MTD-753-04470
...
20
Flywheel Assembly MTD-753-05240
...
21
SPACER MTD-791-181065
...
22
Screw, 10-9 x .50 MTD-1755
...
23
RETAINER ASSEMBLY-PULLE MTD-753-04705
...
24
Pulley Retainer MTD-753-04288
...
25
START ASSEMBLY:S/A:PUL MTD-753-04823
...
26
Recoil Spring MTD-753-04286
...
27
RET:EYELET:S/A MTD-753-04824
...
28
Rope Guide MTD-791-611061
...
29
Rope MTD-791-613103
...
30
Pull Handle MTD-631-04164B
...
31
Switch MTD-791-182673
...
32
SCREW:10-32X.5 MTD-1964
...
33
HOUSING ASSEMBLY:START:MCC MTD-753-04905
...
34
Washer MTD-9162-1
...
35
Starter Clutch Assembly MTD-753-05860
...
36
Clutch Drum Assembly MTD-791-153592
...
37
ASM-CLUTCH COVER NLAUD MTD-753-04889
...
38
Anti-Rotation Screw MTD-791-182519
...
39
Cover Screw MTD-791-181345
...
40
EXT-SHROUD W/HOLE MTD-753-04702
...
41
WIRE:LEAD:RED/BK MTD-794-00028
...
42
TAB, GROUND MTD-791-611063
...
43
IGNITION MODULE ASSEMBLY MTD-753-04337
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASM CAT NLAUD MTD-753-05169
...
46
SCREEN-SPA MTD-753-04689
...
47
SEAL MTD-753-04690
...
48
HOOD MTD-753-04691
...
49
MUFFLER ASSEMBLY MTD-753-04315
...
50
Exhaust Gasket MTD-753-04619
...
51
Muffler Mounting Bolts MTD-710-04188A
...
52
Cylinder Assembly (includes 53 & 54) MTD-753-04814
...
53
Cylinder Gasket MTD-753-04182
...
54
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
55
SCREW-SET MTD-753-04361
...
xx
Piston Ring Set NOT SHOWN MTD-753-1209
...
xx
SHORTBLOCK:31CC:CLU:45 MTD-753-04822
...
xx
Clutch Springs (Qty. 2) NOT SHOWN MTD-791-181599
