McCulloch MT700 41AD700G977 Gas String Trimmer

Model: MT700 41AD700G977 41AD700G977 MT700

Save Part Not Listed?
product name

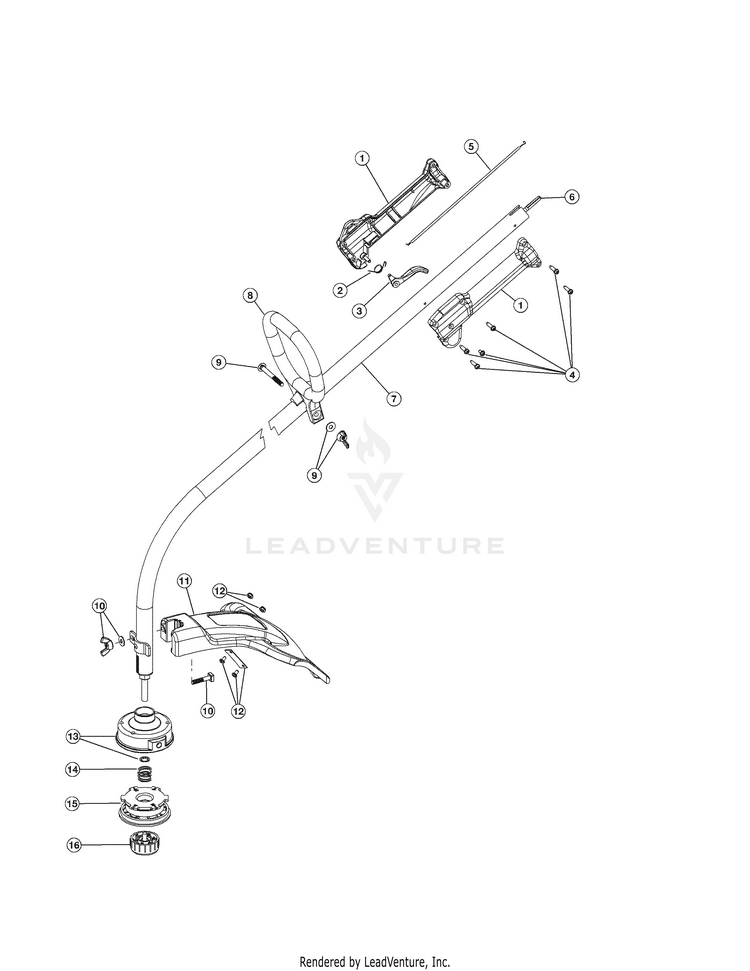

Boom & Trimmer Parts

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
SCREW-SET MTD-753-04361
...
5
Throttle Cable MTD-753-04901
...
6
Flexible Drive Shaft MTD-753-04280
...
7
BOOM & FLX SHF:OPP MTD-753-04827
...
8
D-HANDLE AND HARDWARE MTD-791-153064
...
9
D-Handle Hardware MTD-791-181587
...
10
Guard Mounting Hardware MTD-753-04282
...
11
Guard MTD-753-04283
...
12
Blade Assembly MTD-791-180553
...
13
OUTER REEL W/RETAINING RING MTD-753-04284
...
14
Spring MTD-791-610317B
...
15
Inner Reel MTD-753-1155
...
16
Bump Knob MTD-791-153066B
...
xx
Inner Reel and Line (NOT SHOWN) Optional Accessories MTD-791-153577B
...
xx
Shoulder Strap Assembly MTD-791-682075B

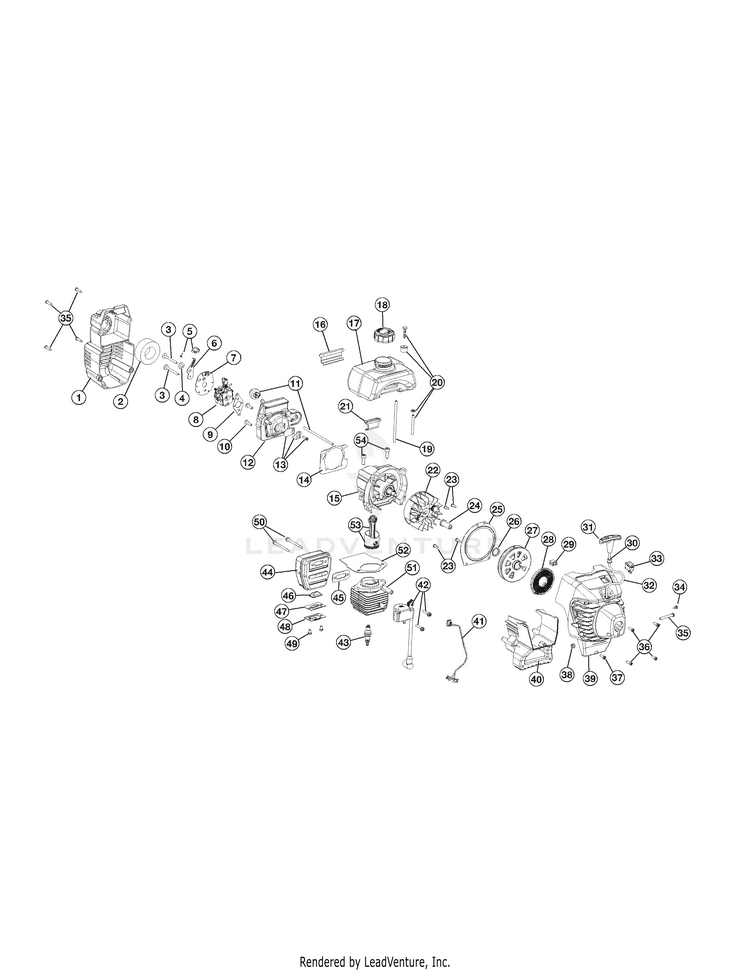

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 34) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
8
Carburetor Assembly (includes 9 & 20) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE SVC ASSEMBLY:45. MTD-753-04321
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
FUEL TANK ASSEMBLY MTD-791-181152
...
18
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-791-182271
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
Flywheel Assembly MTD-753-05240
...
23
Screw MTD-743-1202
...
24
NUT, SQUARE DRIVE MTD-791-610303
...
25
RETAINER ASSEMBLY-PULLE MTD-753-04705
...
26
Pulley Retainer MTD-753-04288
...
27
START ASSEMBLY:S/A:PUL MTD-753-04823
...
28
Recoil Spring MTD-753-04286
...
29
RET:EYELET:S/A MTD-753-04824
...
30
Pull Handle MTD-631-04164B
...
31
Rope Guide MTD-791-611061
...
32
Rope MTD-791-613103
...
33
SWITCH:POS ON/OFF:WEAD MTD-753-04241
...
34
Anti-Rotation Screw MTD-791-182519
...
35
SCREW MTD-9689A
...
36
SCREW:10-32X.5 MTD-1964
...
37
Cover Screw MTD-791-181345
...
38
HEX NUT MTD-712-0161
...
39
STARTER HOUSING AS MTD-753-04825
...
40
EXT-SHROUD W/HOLE MTD-753-04702
...
41
WIRE:LEAD:RED/BK MTD-794-00028
...
42
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
43
Spark Plug MTD-791-610311B
...
44
MUFFLER ASM CAT NLAUD MTD-753-05169
...
45
Exhaust Gasket MTD-753-04619
...
46
SCREEN-SPA MTD-753-04689
...
47
SEAL MTD-753-04690
...
48
HOOD MTD-753-04691
...
49
MUFFLER ASSEMBLY MTD-753-04315
...
50
Muffler Mounting Bolts MTD-710-04188A
...
51
Cylinder Assembly (includes 52 & 53) MTD-753-04814
...
52
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
53
Cylinder Gasket MTD-753-04182
...
54
Cylinder Bolt MTD-791-182723
...
xx
Piston Ring (NOT SHOWN) MTD-753-1209
...
xx
SHORTBLOCK:31CC:N/C:-9 MTD-753-04826
