McCulloch MT3327A4 41AD7A4Q077 (2004) Gas String Trimmer

Model: 41AD7A4Q077 MT3327A4 (2004)

Back To Assemblies

Save Part Not Listed?
product name

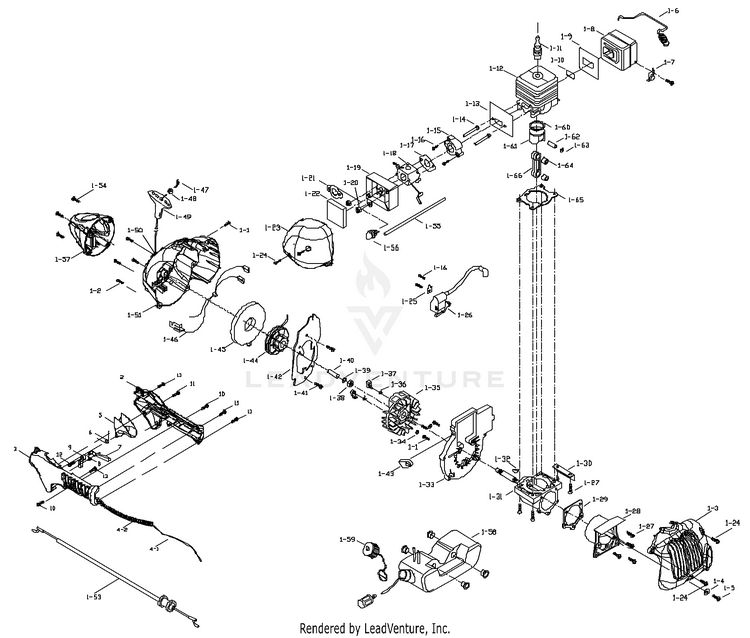

Engine Assembly

...
...
1-1
SCREW MTD-MC-9SJKB-1024-0.63
...
1-2
WASHER, PLASTIC MTD-MC-9SGKBY1024-0.625
...
1-3
COVER MTD-MC-9038-332601
...
1-4
WASHER MTD-MC-9WFB-5.64-12
...
1-5
SCREW MTD-MC-9SJKB-1014-1.375
...
1-6
SPRING-MUFFLER MTD-MC-9024-330301
...
1-7
COVER MTD-MC-9104-330301
...
1-8
KIT-MUFFLER MTD-MC-9200-330301
...
1-9
MUFFLER GASKET MTD-MC-9014-330304
...
1-10
GASKET MTD-MC-9014-330303
...
1-11
SPARK PLUG MTD-MC-9295-320001
...
1-12
CYLINDER MTD-MC-9292-330301
...
1-13
GASKET-MANIFOLD MTD-MC-9014-330301
...
1-14
SCREW 10/24-2 MTD-710-04556
...
1-15
MANIFOLD-CARB MTD-MC-9014-330302
...
1-16
SCREW MTD-MC-9SGKBC1024-0.88
...
1-17
CARBURETOR GASKET MTD-MC-9014-320004
...
1-18
CARBURETOR ASS'Y MTD-MC-9287-330301
...
1-19
AIR BOX MTD-MC-9081-330301
...
1-20
NUT MTD-MC-9NHZ-1024
...
1-21
GASKET-TAB MTD-MC-9014-330101
...
1-22
FILTER, AIR MTD-MC-9252-320001
...
1-23
COVER, AIR CLEANER MTD-MC-9017-332603
...
1-24
SCREW MTD-MC-9SGKBY1014-0.625
...
1-25
TERMINAL TAB MTD-MC-9041-330301
...
1-26
COIL-IGNIT MTD-MC-9288-310001
...
1-27
SCREW MTD-MC-9SDKZJ1024-0.688
...
1-28
CRANKSHAFT PLUG MTD-MC-9070-320001
...
1-29
GASKET MTD-MC-9014-320002
...
1-30
SHIELD-MUF MTD-MC-9017-330309
...
1-31
SHIELD, MUFFLER MTD-MC-9228-330302
...
1-32
KEY MTD-MC-9221-310001
...
1-33
ENGINE SHROUD MTD-MC-9017-320002
...
1-34
RING MTD-MC-9131-320003
...
1-35
FLYWHEEL MTD-MC-9169-320001
...
1-36
HINGE MTD-MC-9024-320001
...
1-37
HINGE MTD-MC-9072-320001
...
1-38
NUT MTD-MC-9NAZ-7-16
...
1-39
WASHER-SHA MTD-MC-9WFB-0.37
...
1-40
KIT, SPACER, CLUTCH MTD-MC-9124-330301
...
1-41
SCREW MTD-MC-9SGKBY816-0.46
...
1-42
RETAINER-P MTD-MC-9187-332601
...
1-43
GROMMET MTD-MC-9012-330301
...
1-44
DRUM ROPE ASSEMBLY MTD-MC-9299-330301
...
1-45
PACKAGE, SPRING ASS'Y MTD-MC-9228-310111
...
1-46
SWITCH-WIRE ASSEMBLY MTD-MC-9010-330301
...
1-47
ROPE-START MTD-MC-9194-320001
...
1-48
WASHER-NYL MTD-MC-9014-320006
...
1-49
HANDLE-STARTER MTD-MC-9068-320002
...
1-50
ROPE GUIDE MTD-MC-9059-330301
...
1-51
HOUSING 116C YELLOW MTD-MC-9017-3326XX
...
1-53
THROTTLE CABLE MTD-MC-9010-332601
...
1-54
SCREW 10/14-1 MTD-710-04286
...
1-55
HOSE MTD-MC-9129-320002
...
1-56
PRIMER MTD-MC-9142-310002
...
1-57
HOUSING, CLUTCH MTD-MC-9017-332602
...
1-58
FUEL TANK ASSEMBLY MTD-MC-9228-330309
...
1-59
FUEL CAP T MTD-MC-9228-320006
...
1-60
RING-PISTO MTD-MC-9189-320001
...
1-61
PISTON MTD-MC-9290-320001
...
1-62
PIN MTD-MC-9115-320001
...
1-63
RING MTD-MC-9131-320002
...
1-64
BEARING MTD-MC-9NB-F6491001
...
1-65
CYLINDER HEAD GASKET MTD-MC-9014-320001
...
1-66
ROD MTD-MC-9175-320001
...
2
HANDLE-HOUSING MTD-MC-9068-332604
...
3
HOUSING-HANDLE MTD-MC-9068-332603
...
4-1
THROTTLE CABLE MTD-MC-9010-332602
...
4-2
HOSE MTD-MC-9059-332602
...
5
TRIGGER MTD-MC-9028-332601
...
6
SPRING MTD-MC-9024-332601
...
7
SHAFT-LIBE MTD-MC-9176-332601
...
8
SPRING MTD-MC-9024-332602
...
9
LIBERATE CHUNK MTD-MC-9072-332601
...
10
SCREW MTD-MC-6SDAB-05-08
...
11
SCREW MTD-MC-6SLABB03-12
...
12
SCREW MTD-MC-6SLABB3.5-10
...
13
SCREW MTD-MC-6SLABB03-08
