product name

McCulloch MT3303A2 41AD3A2X077 (2004) Gas String Trimmer

Model: 41AD3A2X077 MT3303A2 (2004)

Save Part Not Listed?
product name

Gas Trimmer 32cc

...
...
1
ENG ASS'Y MTD-NA
...
1-1
SCREW 10/24-0.63 MTD-710-04287
...
1-2
WASHER-PLA MTD-MC-322210-00
...
1-3
COVER MTD-MC-224235-60
...
1-4
WASHER MTD-MC-093469-00
...
1-5
SCREW 10/14-1.375 MTD-710-04293
...
1-6
SPRING-MUF MTD-MC-224044-00
...
1-7
SCREEN-SPA MTD-MC-224040-00
...
1-8
KIT-MUFFLER MTD-MC-9200-330301
...
1-9
MUFFLER GASKET MTD-MC-9014-330304
...
1-10
GASKET MTD-MC-9014-330303
...
1-11
SPARK PLU MTD-MC-92879-00
...
1-12
KIT, CYLINDER/GASKET MTD-MC-224006-00
...
1-13
GASKET-MANIFOLD MTD-MC-9014-330301
...
1-14
SCREW 10/24-2 MTD-710-04556
...
1-15
MANIFOLD-CARB MTD-MC-9014-330302
...
1-16
SCREW 10/24-.688 MTD-710-04536
...
1-17
CARBURETOR GASKET MTD-MC-9014-320004
...
1-18
CARB-W/CHOKE MTD-MC-323602-03
...
1-19
AIR BOX MTD-MC-9081-330301
...
1-20
NUT MTD-MC-111058-00
...
1-21
GASKET MTD-NA
...
1-22
FILTER, AIR MTD-MC-224239-00
...
1-23
COVER, AIR CLEANER MTD-MC-224236-60
...
1-24
SCREW MTD-MC-111055-00
...
1-25
TERMINAL TAB MTD-MC-300321-00
...
1-26
COIL-IGNITION MTD-725-04320
...
1-27
SCREW 10/24-.688 MTD-710-04536
...
1-28
PLUG, C'CASE MTD-MC-224024-01
...
1-29
GASKET MTD-MC-9014-320002
...
1-30
SHIELD-MUF MTD-MC-322030-00
...
1-31
C'CASE ASS'Y MTD-MC-301821-00
...
1-32
KEY, FLYWHEEL MTD-MC-102164-00
...
1-33
SHROUD-ENG MTD-MC-322396-00
...
1-34
RING MTD-MC-111086-00
...
1-35
FLYWHEEL MTD-MC-301353-01
...
1-36
MC-550001- MTD-MC-322835-00
...
1-37
PAWL-KIT MTD-MC-550001-00
...
1-38
HEX NUT MTD-MC-322847-00
...
1-39
WASHER-SHA MTD-MC-322844-00
...
1-40
SPACER MTD-MC-322842-00
...
1-41
SCREW MTD-NA
...
1-42
PLATE-BAFF MTD-MC-224927-00
...
1-43
GROMMET MTD-MC-9012-330301
...
1-44
DRUM/ ROPE ASS'Y MTD-NA
...
1-45
PACKAGE, SPRING ASS'Y MTD-MC-222797-00
...
1-46
SWITCH-WIR MTD-MC-301134-00
...
1-47
ROPE-START MTD-MC-323131-00
...
1-48
WASHER-NYL MTD-MC-218941-00
...
1-49
HANDLE, STARTER MTD-MC-212792-00
...
1-50
GUIDE, ROPE MTD-MC-223385-00
...
1-51
HOUSING-STARTE MTD-MC-224240-61
...
1-52
WIRE ASSEMBLY-S MTD-MC-301133-00
...
1-53
THROTTLE CABLE ASS'Y MTD-MC-300372-01
...
1-54
SCREW MTD-MC-111054-00
...
1-55
KIT ASS'Y, CLUTCH MTD-MC-302260-00
...
1-56
DRUM ASSEMBLY MTD-MC-302106-00
...
1-57
HOUSING, CLUTCH MTD-MC-224249-01
...
1-58
SCREW 10/14-1 MTD-710-04286
...
1-59
SCREW MTD-NA
...
1-60
SCREW MTD-710-04540
...
1-61
SCREW 8/16-.375 MTD-710-04539
...
1-62
FLAT WASHER MTD-MC-105497-00
...
1-63
CONTACT SWITCH MTD-MC-9051-331301
...
1-64
SCREW MTD-MC-111061-00
...
1-65
COVER ASS'Y, SWITCH MTD-MC-224243-00
...
1-66
BUTTON-STOP SWITCH MTD-MC-224245-00
...
1-67
TRIGGER-TH MTD-MC-300361-00
...
1-68
SCREW MTD-MC-111077-00
...
1-69
TERMINAL TAB MTD-MC-322275-00
...
1-70
TRIGGER HOUSING MTD-MC-224811-00
...
1-71
GRIP MTD-MC-322140-00
...
1-72
SLEEVE-PRO MTD-MC-322234-00
...
1-73
HOSE, FUEL MTD-MC-225162-00
...
1-74
FUEL CAP MTD-MC-223508-00
...
1-75
RING, PISTON MTD-MC-224217-00
...
1-76
KIT, PISTON MTD-MC-325157-00
...
1-77
PIN, C,SHAFT PISTON MTD-MC-300482-00
...
1-78
RING, RETAINING MTD-MC-215876-00
...
1-79
BEARING MTD-MC-091117-00
...
1-80
CYLINDER HEAD GASKET MTD-MC-9014-320001
...
1-81
ROD, CONNECTING MTD-MC-224226-00
...
1-82
ISOLATOR-F MTD-MC-322105-00
...
1-83
PRIMER MTD-MC-224242-01
...
2
HARNESS MTD-MC-9149-330301
...
3
PLUG MTD-MC-217566-00
...
4
HANDLE ASS'Y MTD-NA
...
4-1
PLUG MTD-MC-218328-00
...
4-2
GRIP MTD-MC-322139-00
...
4-3
PLUG MTD-NA
...
4-4
CENTERPIECE MTD-NA
...
4-5
CLAMP MTD-NA
...
4-6
SCREW MTD-NA
...
5
HOUSING ASS'Y, OUTER MTD-NA
...
6
HOUSING ASS'Y, FRONT MTD-NA
...
7
GEAR HOUSING A MTD-MC-323396-00
...
8
SLEEVE-SPLINE MTD-MC-322009-01
...
9
COLLAR MTD-MC-9131-330304
...
10
KIT-STRING HEAD MTD-MC-9228-330319
...
11
SHIELD ASSEMBLY MTD-MC-301393-00
...
11-1
SHIELD MTD-MC-224145-00
...
11-2
SCREW 10/24-0.5 MTD-710-04549
...
11-3
CUTTER MTD-MC-224497-00
...
11-4
HEX LOCK NUT MTD-712-04108
...
11-5
STICK MTD-MC-216767-00

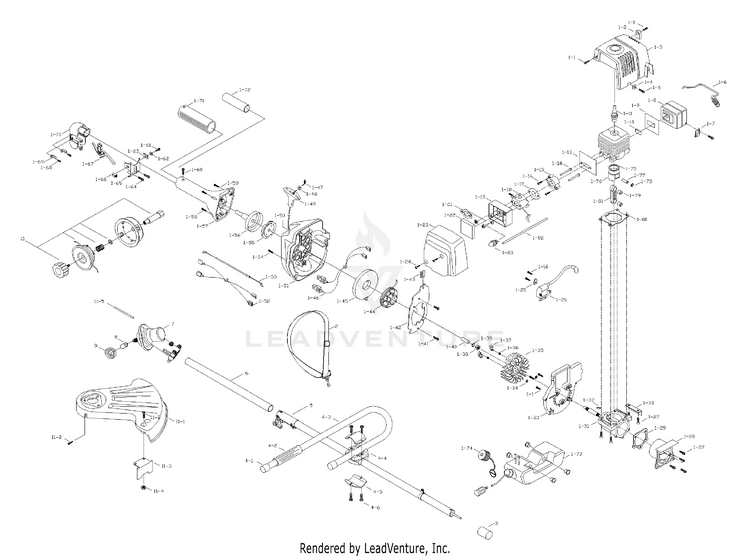

Schematic Image Zoomed
