McCulloch MT30725 41AD725C977 Gas String Trimmer

Model: MT30725 41AD725C977 41AD725C977 MT30725

Save Part Not Listed?
product name

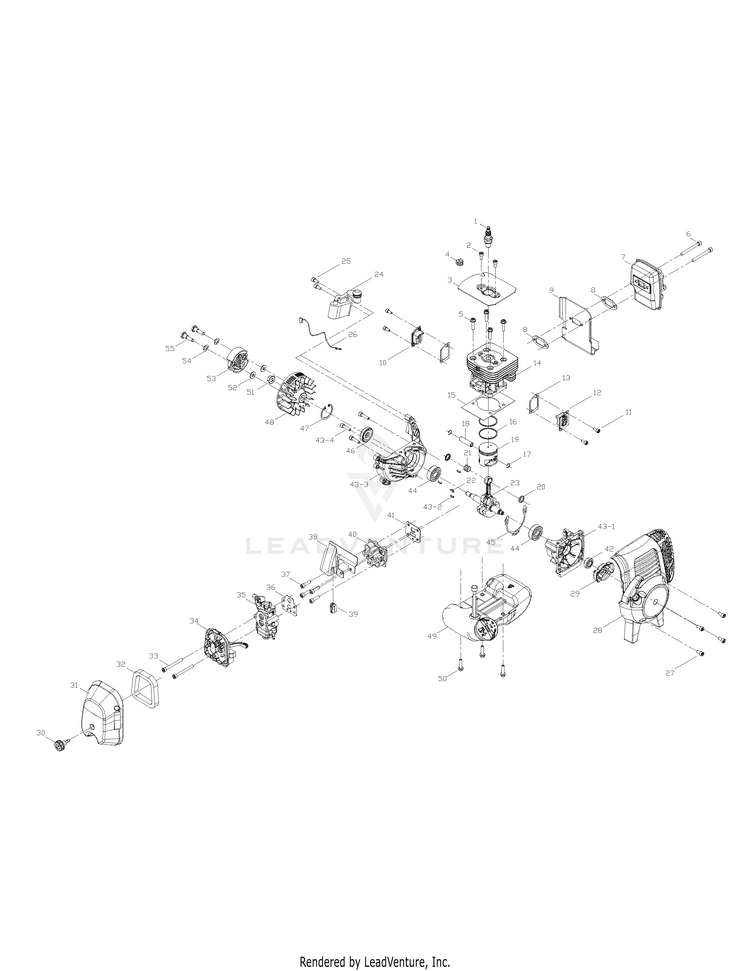

Engine Assembly

...
...
1
SPARK PLUG MTD-MC-9295-310501
...
2
SCREW MTD-MC-9SGEB-05-10
...
3
PLATE:SPARK MTD-MC-9211-334502
...
4
GROMMET MTD-MC-9012-330301
...
5
SCREW MTD-MC-9SRCB-05-22
...
6
SCREW MTD-MC-9SXMBJ05-50
...
7
MFLR ASSEMBLY MTD-MC-9228-334503
...
8
GASK:MFLR MTD-MC-9014-GP0102
...
9
PLATE:MFLR MTD-MC-9211-334501
...
10
COVER:FLYWL SIDE MTD-MC-9017-334501
...
11
SCREW MTD-MC-9SGEB-04-10
...
12
COVER-STARTER SIDE MTD-MC-9017-334502
...
13
GASKET MTD-MC-9014-334507
...
14
CYLINDER MTD-MC-9292-334501F
...
15
GASK MTD-MC-9014-334501
...
16
PISTON RING MTD-MC-9189-334501
...
17
CIRCLIP MTD-MC-9131-334501
...
18
PIN:PSTN MTD-MC-9115-334501
...
19
PISTON MTD-MC-9290-334501
...
20
COVER:AXIS MTD-MC-9067-334501
...
21
NEEDLE BEARING MTD-MC-9NR-KV9129.8
...
22
KEY WOODRU MTD-MC-6221-830301
...
23
CRANK ASSEMBLY MTD-MC-9228-334502
...
24
IGNITION COIL MTD-MC-9288-334501-CH
...
25
SCREW MTD-MC-9SRCB-05-20
...
26
COIL WIRE MTD-MC-9010-332102
...
27
SCREW MTD-MC-9SGKB-05-12.5
...
28
HOUSING ASSEMBLY ST MTD-MC-9228-334504
...
29
PAWL ASSEMBLY MTD-MC-9228-MD0107
...
30
COVER-FILTER W/ KN MTD-MC-9228-334513
...
31
COVER:FILTER MTD-MC-9017-334505
...
32
AIR FILTER MTD-MC-9183-334501
...
33
SCREW MTD-MC-9SGEB-05-52
...
34
FLTR ASSEMBLY MTD-MC-9228-334507
...
35
CARB MTD-MC-9287-334501
...
36
GASKET CAR MTD-MC-9014-334505
...
37
SCREW MTD-MC-9SKKB-05-19
...
38
PLATE MTD-MC-9211-334503
...
39
GROM MTD-MC-9012-334501
...
40
INSULATOR MTD-MC-9072-334501
...
41
GASKET INS MTD-MC-9014-334506
...
42
OIL SEAL MTD-MC-9157-332101
...
43
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-1
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-2
PIN MTD-MC-9PA-03-08
...
43-3
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-4
SCREW MTD-MC-9SGEB-05-20
...
44
BEARING MTD-MC-9DB-620101
...
45
GASK CRCAS MTD-MC-9014-334502
...
46
SEAL MTD-MC-9157-334501
...
47
RING:C MTD-MC-9CB-32
...
48
FLYWHEEL MTD-MC-9169-334501
...
49
FUEL TANK ASS'Y MTD-MC-9228-334506
...
50
SCREW MTD-MC-9SKKBY05-18
...
51
NUT MTD-MC-9NAC-08
...
52
WASH MTD-MC-9WFB-06-15
...
53
CLUTCH ASSEMBLY MTD-MC-9176-GP0101
...
54
PLATE:WAVE MTD-MC-9WWB-08
...
55
SCREW MTD-MC-9214-GP0101
...
56
SUPT ASSEMBLY:TRANS MTD-MC-9228-334508
...
57
NUT MTD-MC-9NDB-05
...
58
SCREW MTD-MC-9SDABM05-25
...
59
GROM MTD-MC-9012-334502
...
60
SCREW MTD-MC-9SKKB-05-16
...
61
SCREW MTD-MC-6SDAB-05-08
...
62
WASHER MTD-MC-9WFB-5.64-12
...
63
HOUSING ASSEMBLY MTD-MC-9228-330354
...
64
HNDL ASSEMBLY MTD-MC-9228-330355
...
64-1
CLAMP MTD-MC-9014-330402
...
64-2
HNDL:J MTD-MC-9068-330312
...
64-3
HNDL MTD-MC-9068-330303
...
64-4
PLUG MTD-MC-9070-330301
...
64-5
CENTERPLECE MTD-MC-9072-330402
...
64-6
PARTS BAG MTD-MC-9125-330301
...
65
COVERING MTD-MC-9105-330301
...
66
FRONT SHAFT ASSEMBLY MTD-MC-9228-A10111
...
67
KIT,STRING HEAD MTD-MC-9228-330109
...
68
KNOB ASSEMBLY MTD-MC-9228-330110P
...
69
SHIELD ASSEMBLY MTD-MC-9228-A10110
...
69-1
PARTS BAG MTD-MC-9125-331001
...
69-2
COVER MTD-MC-9017-A10101
...
69-3
SCREW MTD-MC-9SKKBY1024-0.62
...
69-4
KIT, KNIFE MTD-MC-9250-330301
...
69-5
NUT MTD-MC-6NGB-1024
...
70
HNDL ASSEMBLY MTD-MC-9228-334510
...
70-1
SCREW MTD-MC-6SDABB04-12
...
70-2
HOUSING-HA MTD-MC-9068-332103
...
70-3
WIRE ASSEMBLY:S MTD-MC-9010-332103
...
70-4
CBL:THROT MTD-MC-9010-334501
...
70-5
HOSE MTD-MC-9059-332101
...
70-6
TRIG MTD-MC-9028-332101
...
70-7
SPR MTD-MC-9024-332102
...
70-8
LIBERATE SHAFT MTD-MC-9176-332101
...
70-9
SPR MTD-MC-9024-332103
...
70-10
LIBERATE CHUNK MTD-MC-9176-332102
...
70-11
SCREW MTD-MC-6SLABB3.5-10
...
70-12
STOP SWITCH MTD-MC-9022-330502
...
70-13
HANDLE-HOU MTD-MC-9068-332104
...
71
NUT MTD-MC-6NGZ-05
...
72
HARNESS MTD-MC-9149-330301-CH
...
73
EDUTION MTD-MC-9027-332101
...
74
SCREW MTD-MC-9SGKBY1024-0.625

General Assembly

...
...
1
SPARK PLUG MTD-MC-9295-310501
...
2
SCREW MTD-MC-9SGEB-05-10
...
3
PLATE:SPARK MTD-MC-9211-334502
...
4
GROMMET MTD-MC-9012-330301
...
5
SCREW MTD-MC-9SRCB-05-22
...
6
SCREW MTD-MC-9SXMBJ05-50
...
7
MFLR ASSEMBLY MTD-MC-9228-334503
...
8
GASK:MFLR MTD-MC-9014-GP0102
...
9
PLATE:MFLR MTD-MC-9211-334501
...
10
COVER:FLYWL SIDE MTD-MC-9017-334501
...
11
SCREW MTD-MC-9SGEB-04-10
...
12
COVER-STARTER SIDE MTD-MC-9017-334502
...
13
GASKET MTD-MC-9014-334507
...
14
CYLINDER MTD-MC-9292-334501F
...
15
GASK MTD-MC-9014-334501
...
16
PISTON RING MTD-MC-9189-334501
...
17
CIRCLIP MTD-MC-9131-334501
...
18
PIN:PSTN MTD-MC-9115-334501
...
19
PISTON MTD-MC-9290-334501
...
20
COVER:AXIS MTD-MC-9067-334501
...
21
NEEDLE BEARING MTD-MC-9NR-KV9129.8
...
22
KEY WOODRU MTD-MC-6221-830301
...
23
CRANK ASSEMBLY MTD-MC-9228-334502
...
24
IGNITION COIL MTD-MC-9288-334501-CH
...
25
SCREW MTD-MC-9SRCB-05-20
...
26
COIL WIRE MTD-MC-9010-332102
...
27
SCREW MTD-MC-9SGKB-05-12.5
...
28
HOUSING ASSEMBLY ST MTD-MC-9228-334504
...
29
PAWL ASSEMBLY MTD-MC-9228-MD0107
...
30
COVER-FILTER W/ KN MTD-MC-9228-334513
...
31
COVER:FILTER MTD-MC-9017-334505
...
32
AIR FILTER MTD-MC-9183-334501
...
33
SCREW MTD-MC-9SGEB-05-52
...
34
FLTR ASSEMBLY MTD-MC-9228-334507
...
35
CARB MTD-MC-9287-334501
...
36
GASKET CAR MTD-MC-9014-334505
...
37
SCREW MTD-MC-9SKKB-05-19
...
38
PLATE MTD-MC-9211-334503
...
39
GROM MTD-MC-9012-334501
...
40
INSULATOR MTD-MC-9072-334501
...
41
GASKET INS MTD-MC-9014-334506
...
42
OIL SEAL MTD-MC-9157-332101
...
43
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-1
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-2
PIN MTD-MC-9PA-03-08
...
43-3
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-4
SCREW MTD-MC-9SGEB-05-20
...
44
BEARING MTD-MC-9DB-620101
...
45
GASK CRCAS MTD-MC-9014-334502
...
46
SEAL MTD-MC-9157-334501
...
47
RING:C MTD-MC-9CB-32
...
48
FLYWHEEL MTD-MC-9169-334501
...
49
FUEL TANK ASS'Y MTD-MC-9228-334506
...
50
SCREW MTD-MC-9SKKBY05-18
...
51
NUT MTD-MC-9NAC-08
...
52
WASH MTD-MC-9WFB-06-15
...
53
CLUTCH ASSEMBLY MTD-MC-9176-GP0101
...
54
PLATE:WAVE MTD-MC-9WWB-08
...
55
SCREW MTD-MC-9214-GP0101
...
56
SUPT ASSEMBLY:TRANS MTD-MC-9228-334508
...
57
NUT MTD-MC-9NDB-05
...
58
SCREW MTD-MC-9SDABM05-25
...
59
GROM MTD-MC-9012-334502
...
60
SCREW MTD-MC-9SKKB-05-16
...
61
SCREW MTD-MC-6SDAB-05-08
...
62
WASHER MTD-MC-9WFB-5.64-12
...
63
HOUSING ASSEMBLY MTD-MC-9228-330354
...
64
HNDL ASSEMBLY MTD-MC-9228-330355
...
64-1
CLAMP MTD-MC-9014-330402
...
64-2
HNDL:J MTD-MC-9068-330312
...
64-3
HNDL MTD-MC-9068-330303
...
64-4
PLUG MTD-MC-9070-330301
...
64-5
CENTERPLECE MTD-MC-9072-330402
...
64-6
PARTS BAG MTD-MC-9125-330301
...
65
COVERING MTD-MC-9105-330301
...
66
FRONT SHAFT ASSEMBLY MTD-MC-9228-A10111
...
67
KIT,STRING HEAD MTD-MC-9228-330109
...
68
KNOB ASSEMBLY MTD-MC-9228-330110P
...
69
SHIELD ASSEMBLY MTD-MC-9228-A10110
...
69-1
PARTS BAG MTD-MC-9125-331001
...
69-2
COVER MTD-MC-9017-A10101
...
69-3
SCREW MTD-MC-9SKKBY1024-0.62
...
69-4
KIT, KNIFE MTD-MC-9250-330301
...
69-5
NUT MTD-MC-6NGB-1024
...
70
HNDL ASSEMBLY MTD-MC-9228-334510
...
70-1
SCREW MTD-MC-6SDABB04-12
...
70-2
HOUSING-HA MTD-MC-9068-332103
...
70-3
WIRE ASSEMBLY:S MTD-MC-9010-332103
...
70-4
CBL:THROT MTD-MC-9010-334501
...
70-5
HOSE MTD-MC-9059-332101
...
70-6
TRIG MTD-MC-9028-332101
...
70-7
SPR MTD-MC-9024-332102
...
70-8
LIBERATE SHAFT MTD-MC-9176-332101
...
70-9
SPR MTD-MC-9024-332103
...
70-10
LIBERATE CHUNK MTD-MC-9176-332102
...
70-11
SCREW MTD-MC-6SLABB3.5-10
...
70-12
STOP SWITCH MTD-MC-9022-330502
...
70-13
HANDLE-HOU MTD-MC-9068-332104
...
71
NUT MTD-MC-6NGZ-05
...
72
HARNESS MTD-MC-9149-330301-CH
...
73
EDUTION MTD-MC-9027-332101
...
74
SCREW MTD-MC-9SGKBY1024-0.625
