McCulloch MT202A13 41ACA13P977 Electric String Trimmer

McCulloch MT202A13 41ACA13P977 Electric String Trimmer

Model: MT202A13 41ACA13P977 41ACA13P977 MT202A13

Save Part Not Listed?

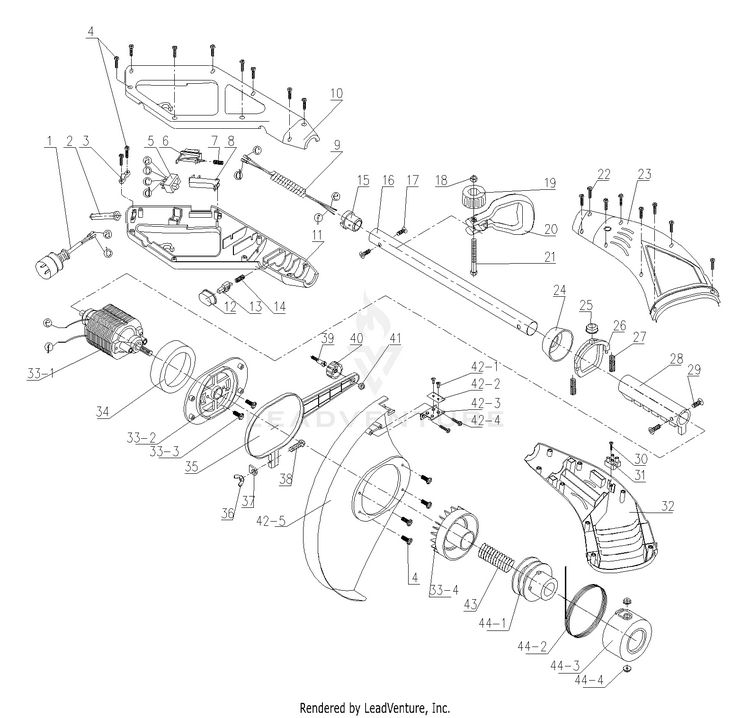

String Trimmer 13"

1

CORD:POWER MTD-MC-6011-202A02

2

GUARD:CORD MTD-MC-6199-202A01

3

GASK MTD-MC-6043-202A01

4

SCREW MTD-MC-6SDABB04-14

5

SW MTD-MC-6022-202A01

6

TRIG MTD-MC-6134-202A01

7

SPRING MTD-MC-6024-202A01

8

TRIG MTD-MC-6134-202A02

9

WIRE MTD-MC-6010-202A01

10

HANDGRIP:U MTD-MC-6068-202A01

11

HANDGRIP:U MTD-MC-6068-202A02

12

BUTTON MTD-MC-6056-202A01

13

LEVER MTD-MC-6021-202A01

14

SPRING MTD-MC-6024-202A02

15

PIPE:JOIN MTD-MC-6131-202A01

16

TUBE:CENTR MTD-MC-6129-202A01

17

SCREW MTD-MC-6SDABB04-06

18

NUT MTD-MC-6NG-06

19

KNOB MTD-MC-6056-230302

20

HANDLE MTD-MC-6196-202601

21

BOLT MTD-MC-6SXDB-06-65

22

SCREW MTD-MC-6SDABB04-18

23

HOUSING:R MTD-MC-6038-202A01

24

JACKET MTD-MC-6059-202A01

25

BUTTON MTD-MC-6056-202A02

26

RING:FIXED MTD-MC-6239-202A01

27

SPR MTD-MC-6024-202A03

28

RING:EXPAN MTD-MC-6131-202A02

29

SCREW MTD-MC-6SJABB04-08

30

SCREW MTD-MC-6SDABA03-16

31

TERMINAL BLOCK MTD-MC-6072-202A01

32

HOUSING:L MTD-MC-6038-202A02

33

MTR ASSEMBLY MTD-MC-6228-202A11

34

CUSHION RING MTD-MC-6131-202A14

35

CUSHION RING MTD-MC-6114-202A14

36

NUT MTD-MC-6NEB-06

37

GASKET MTD-MC-6043-202A02

38

SCREW MTD-MC-6SXDB-06-20

39

SHAFT PIN MTD-MC-6155-202A01

40

WHEEL MTD-MC-6137-202A01

41

NUT MTD-MC-6NAB-05

42

SHIELD ASS'Y MTD-MC-6228-202A07

43

SPRING MTD-MC-6024-202A04

44

SPOOL CAR MTD-MC-6228-202004A
