McCulloch MS4016PAVCC 41AY06PR977 Gas Chainsaw

Model: MS4016PAVCC 41AY06PR977

Save Part Not Listed?
product name

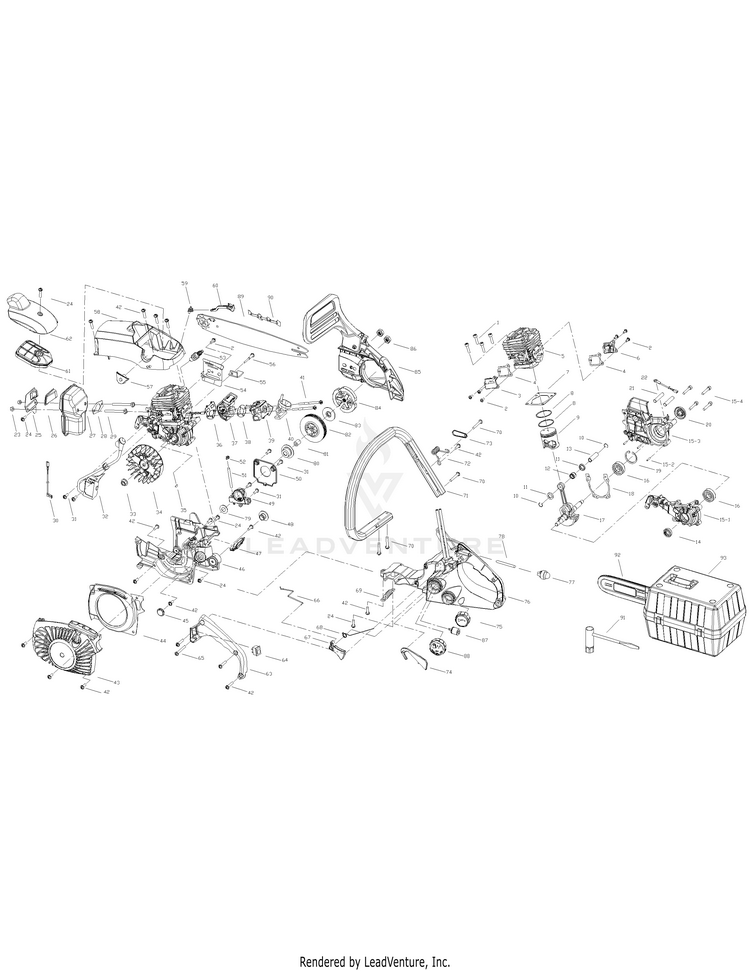

General Assembly

...
...
1
SCREW MTD-MC-9SGEB-05-20
...
2
SCREW MTD-MC-9SKKB-04-10
...
3
CAP MTD-MC-9067-310802
...
4
GASK MTD-MC-9014-310803
...
5
CYL MTD-MC-9292-310801F
...
6
CAP MTD-MC-9067-310801
...
7
GASK MTD-MC-9014-310801
...
8
RING:PSTN MTD-MC-9189-310801
...
9
PISTON MTD-MC-9290-310801
...
10
RING MTD-MC-9CA-10.3
...
11
WASH MTD-MC-9131-310801
...
12
ROLLER MTD-MC-9NR-K101411
...
13
PIN:PSTN MTD-MC-9PC-10-35
...
14
OIL SEAL MTD-MC-9157-332101
...
15
CLY CASE A MTD-MC-9228-310819
...
15-1
CLY CASE, LEFT MTD-MC-9072-310802F
...
15-2
PIN (41AR3 MTD-MC-9PA-03-08S
...
15-3
CLY CASE, RIGHT MTD-MC-9072-310801F
...
15-4
SCREW MTD-MC-9SKKB-05-27
...
16
BEARING MTD-MC-9DB-620101
...
17
CRANK ASSEMBLY MTD-MC-9228-310801
...
18
GASK MTD-MC-9014-310802
...
19
RING:C MTD-MC-9CB-32
...
20
SEAL MTD-MC-9157-310801
...
21
SCREW MTD-MC-9191-310802
...
22
WIRE MTD-MC-9010-310801
...
23
NUT MTD-MC-9NCC-05U
...
24
SCREW MTD-MC-9SKKB-05-14
...
25
COVER, MESH MTD-MC-9014-310810
...
26
ARRESTOR S MTD-MC-9016-310801
...
27
MFLR ASSEMBLY MTD-MC-9228-310804
...
28
BAFFLE MTD-MC-9014-310804
...
29
SCREW MTD-MC-9191-310803
...
30
WIRE MTD-MC-9010-310802
...
31
SCREW MTD-MC-9SKKB-04-14
...
32
IGNITION ASSEMBLY MTD-MC-9288-310801
...
33
NUT MTD-MC-9NAC-08
...
34
FLYWHEEL ASSEMBLY MTD-MC-9169-310801
...
35
KEY WOODRU MTD-MC-6221-830301
...
36
GASKET MTD-MC-9014-310805
...
37
ISOLATOR ASSEMBLY:CARB MTD-MC-9228-310806
...
38
SPACER-GAS MTD-MC-9014-310006
...
39
CARBURETOR MTD-MC-9287-310801
...
40
GUIDE:AIR MTD-MC-9072-310803
...
41
SCREW MTD-MC-9SKKB-04-70
...
42
SCREW 8/16-0.75 MTD-710-04232
...
43
HOUSING ASSEMBLY ST MTD-MC-9228-310815
...
44
CAP:AIRWAY MTD-MC-9211-310801
...
45
CAP:RUBBER MTD-MC-9105-310802
...
46
BRACKET ASSEMBLY MTD-MC-9228-310810
...
47
PUSH ROD-F MTD-MC-9012-310801
...
48
CAP:RUBBER MTD-MC-9105-310801
...
49
PUMP ASSEMBLY MTD-MC-9228-310805
...
50
CAP MTD-MC-9072-310806
...
51
PIPE MTD-MC-9129-310804
...
52
CONNECTOR MTD-MC-9154-310802
...
53
SPARK PLUG MTD-MC-9295-310801
...
54
SPACER MTD-MC-9014-310811
...
55
CATCH:CHAIN MTD-MC-9263-310801
...
56
SCREW MTD-MC-9SKKB-05-32
...
57
CAP:ADJUST MTD-MC-9105-310803
...
58
SHROUD MTD-MC-9067-310805
...
59
HOLDER:CHOKE LVR MTD-MC-9072-310804
...
60
LVR:CHOKE MTD-MC-9114-310801
...
61
AIR FILTER ASS'Y MTD-MC-9228-310808
...
62
TOP COVER MTD-MC-9067-310806
...
63
HANDLE, LB MTD-MC-9068-310803
...
64
SW MTD-MC-9022-310701
...
65
SCREW MTD-MC-9SKKBB05-35
...
66
PUSH ROD MTD-MC-9188-310802
...
67
TRIG:THROT MTD-MC-9028-310802
...
68
SPR MTD-MC-9024-310801
...
69
SPRING MTD-MC-9024-310803
...
70
SCREW MTD-MC-9SKKBB05-27
...
71
HANDLE:FRONT MTD-MC-9068-310801
...
72
SPR MTD-MC-9024-310802
...
73
CAP:SPR MTD-MC-9043-310802
...
74
TRIG MTD-MC-9028-310801
...
75
OIL CAP ASS'Y MTD-MC-9228-310809
...
76
HANDLE ASS'Y ( R ) MTD-MC-9228-310816
...
77
PRIMER MTD-MC-9142-310002
...
78
PIPE MTD-MC-9129-310803
...
79
SPACER MTD-MC-9WFB-10-18
...
80
WORM MTD-MC-9073-310803
...
81
ROLLER MTD-MC-9NR-K101313
...
82
DRUM ASS'Y MTD-MC-9200-310801
...
83
WASH MTD-MC-9014-310807
...
84
CLUTCH ASS'Y MTD-MC-9228-310813
...
85
BRAKE KIT ASS'Y MTD-MC-9228-310814
...
86
NUT MTD-MC-9NAZ-516-18
...
87
FILTER FUE MTD-MC-9182-310101
...
88
FUEL CAP A MTD-MC-9228-310820
...
89
Bar MTD-MC-9040-310808F
...
90
CHAIN MTD-MC-6220-210813
...
91
WRENCH MTD-MC-9042-310201
...
92
SCABBARD MTD-MC-9101-310805
...
93
CASE CARRY MTD-MC-9120-310801
