McCulloch MS2050AVCC 41AY00AS977 Gas Chainsaw

Model: MS2050AVCC 41AY00AS977 41AY00AS977 MS2050AVCC

Save Part Not Listed?
product name

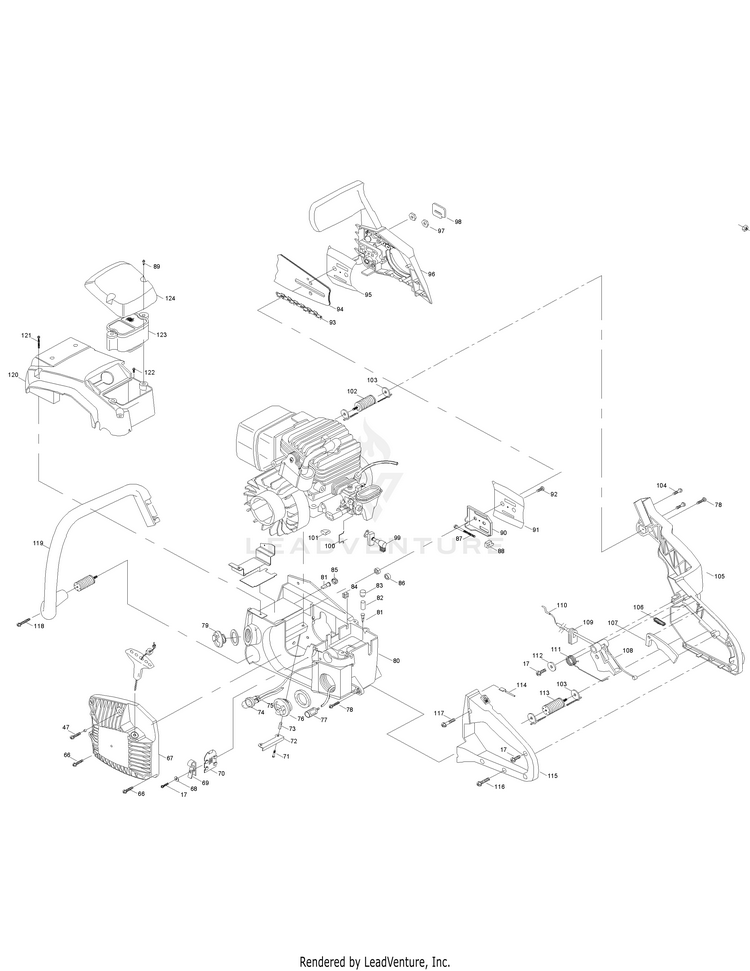

General Assembly 1

...
...
1
NUT MTD-MC-9NAB-516-24
...
2
WASHER MTD-MC-9WOC-08
...
3
SCREW 10/24-2.75 MTD-710-04505
...
4
SCREW MTD-MC-9SREB-1024-2.75
...
5
WASHER MTD-MC-9WFB-0.2
...
6
SEAL MTD-MC-9157-310201
...
7
BEARING MTD-MC-9DB-620201
...
8
CRANKCASE LOWER MTD-MC-9072-3102Y1F
...
9
KEY MTD-MC-9221-310001
...
10
SHAFT ROD ASSEMBLY MTD-MC-9228-310203A
...
11
BEARING MTD-MC-9155-310201
...
12
WASH MTD-MC-6014-M96A01
...
13
WORK GEAR MTD-MC-9073-310201
...
14
WASHER MTD-MC-9WFN-0.4
...
15
O-RING MTD-MC-9076-310201
...
16
SCREW 8/16-0.5 MTD-710-04493
...
17
SCREW MTD-MC-9SKKBY816-0.5
...
18
WASHER MTD-MC-9WDZ-0.722
...
19
BEARING MTD-MC-9155-310203
...
20
DRUM SPRKT ASS'Y MTD-MC-9228-310211
...
21
CLUTCH ASS'Y MTD-MC-9228-310210
...
22
NUT MTD-MC-9NHC-09
...
23
CRANKCASE-UPPER MTD-MC-9072-3102Y2F
...
24
FITTING-PULSE LINE MTD-MC-9124-310201
...
25
GASKET MTD-MC-9014-3102Y1
...
26
WIRE CLAMP HOSE MTD-MC-9036-310201
...
27
CONDUIT-FLEX MTD-MC-9059-310201
...
28
HOSE MTD-MC-9129-310004
...
29
RING MTD-MC-9CA-0.46
...
30
PIN MTD-MC-9PC-10-32.5
...
31
PISTON MTD-MC-9290-31C201
...
32
RING-PISTO MTD-MC-9189-31C201
...
33
SCREW 10-24-0.75 MTD-710-04491
...
34
SPACER MTD-MC-9124-310205
...
35
COIL-IGNITION 9288 MTD-725-04321
...
36
STUD MTD-MC-9191-310201
...
37
GROMMET MTD-MC-9012-330301
...
38
SCREW 10-24-0.75 MTD-710-04491
...
39
FLANGE MTD-MC-322649
...
40
EYELET MTD-MC-9131-310202
...
41
CYLINDER MTD-MC-9292-31C201F
...
42
SPARK PLUG MTD-MC-9295-320001
...
43
SCREW 10/24-2.75 MTD-710-04506
...
44
WASHER MTD-MC-9014-310208
...
45
BAFFLE-MUF MTD-MC-9082-310201
...
46
MUFFLER MTD-MC-9228-310217
...
47
SCREW 10/24-0.5 MTD-710-04549
...
48
PLATE-MUFF MTD-MC-9211-310201
...
49
SCREEN-MUF MTD-MC-9183-310201
...
50
BAFFLER-MU MTD-MC-9082-310205
...
51
COVER-MUFF MTD-MC-9017-310204
...
52
LOCKPLATE MTD-MC-9158-310201
...
53
NUT MTD-MC-9NAC-1024
...
54
BOOT-CARB MTD-MC-9124-310202
...
55
EYELET MTD-MC-9131-310203
...
56
FLANGE MTD-MC-9014-310204
...
57
PLATE MTD-MC-9102-310202
...
58
GASKET MTD-MC-9014-310202
...
59
CARBURETOR MTD-MC-9287-31C201
...
60
BOOT MTD-MC-9124-310203
...
61
FLANGE MTD-MC-9014-31C201
...
62
SPRING MTD-MC-9024-310202
...
63
EYELET MTD-MC-9131-310204
...
64
BOOT MTD-MC-9124-310204
...
65
SCREW 10/24-1.625 MTD-710-04503
...
66
SCREW 10/14-0.625 MTD-710-04547
...
67
STARTER ASS'Y MTD-MC-9228-310212
...
68
WASHER MTD-MC-9WFZ-0.18
...
69
CLIP MTD-MC-9223-310201
...
70
SCREEN MTD-MC-9183-310202
...
71
SCREW 10/24-1 MTD-710-04551
...
72
PLATE MTD-MC-9043-310201
...
73
SPACER MTD-MC-9124-310206
...
74
PRIMER MTD-MC-9142-310002
...
75
HOSE MTD-MC-9129-310214
...
76
FUEL CAP MTD-MC-9228-310206
...
77
FILTER MTD-MC-9182-310503
...
78
SCREW 10/14-01 MTD-710-04501
...
79
CAP-OIL MTD-MC-9228-310207
...
80
FUEL/OIL TANK ASS'Y MTD-MC-9228-310205
...
81
VALVE-DUCK MTD-MC-9070-310002
...
82
FUEL FILTER MTD-MC-6182-210101
...
83
HOSE MTD-MC-9129-310209
...
84
PLUG MTD-MC-9013-310201
...
85
FILTER MTD-MC-9252-310002
...
86
WASHER MTD-MC-9131-310206
...
87
SCREW MTD-MC-9214-310201
...
88
NUT MTD-MC-9035-310201
...
89
SCREW MTD-MC-9214-310101
...
90
PLATE-BAR MTD-MC-9043-310203
...
91
PLATE-FLAN MTD-MC-9043-310202
...
92
SCREW 6/19-0.3 MTD-710-04492
...
93
Chain 20" MTD-913-05044
...
94
BAR MTD-MC-9040-31A212
...
95
PLATE MTD-MC-9082-310204
...
96
BRAKE ASSEMBLY:CHAIN MTD-MC-9228-310215
...
97
NUT MTD-MC-9NAZ-516-18
...
98
PLATE MTD-MC-9072-310206
...
99
CHOKE ASSEMBLY MTD-MC-9228-31C201
...
100
CHOKE-ROD MTD-MC-9114-310202
...
101
PLUG MTD-MC-9013-310202
...
102
ISOLATOR ASSEMBLY MTD-MC-9228-310213
...
103
CABLE ASSEMBLY MTD-MC-9228-310214
...
104
SCREW 10-24-6.5 MTD-710-04490
...
105
FRAME-REAR MTD-MC-9068-310203
...
106
PLUG MTD-MC-9017-31C201
...
107
RELEASE-TRIGGER MTD-MC-9028-310201
...
108
TRIGGER MTD-MC-9028-310202
...
109
GROMMET MTD-MC-9124-310209
...
110
CABLE MTD-MC-9010-310201
...
111
SPRING MTD-MC-9024-310206
...
112
WASHER MTD-MC-9WFB-4.9-17
...
113
ISOLATER MTD-MC-9228-310222
...
114
WIRE MTD-MC-9010-310203
...
115
COVER ASSEMBLY MTD-MC-9228-310232
...
116
SCREW 8/16-0.6 MTD-710-04494
...
117
SCREW 8/16-1 MTD-710-04495
...
118
SCREW 12/14-1.5 MTD-710-04496
...
119
HANDLE ASSEMBLY MTD-MC-9228-310231
...
120
COVER ASS'Y MTD-9228-310216
...
121
SCREW 10/14-02 MTD-710-04504
...
122
SCREW 10/14-0.68 MTD-710-04548
...
123
CLEANER-AIR MTD-MC-9228-310204
...
124
AIR CLEANER COVER MTD-MC-9067-310202
...
125
WRENCH MTD-MC-9042-310201
...
126
CASE-CARRY MTD-MC-9120-310201
...
127
SCABBARD MTD-MC-9017-310213

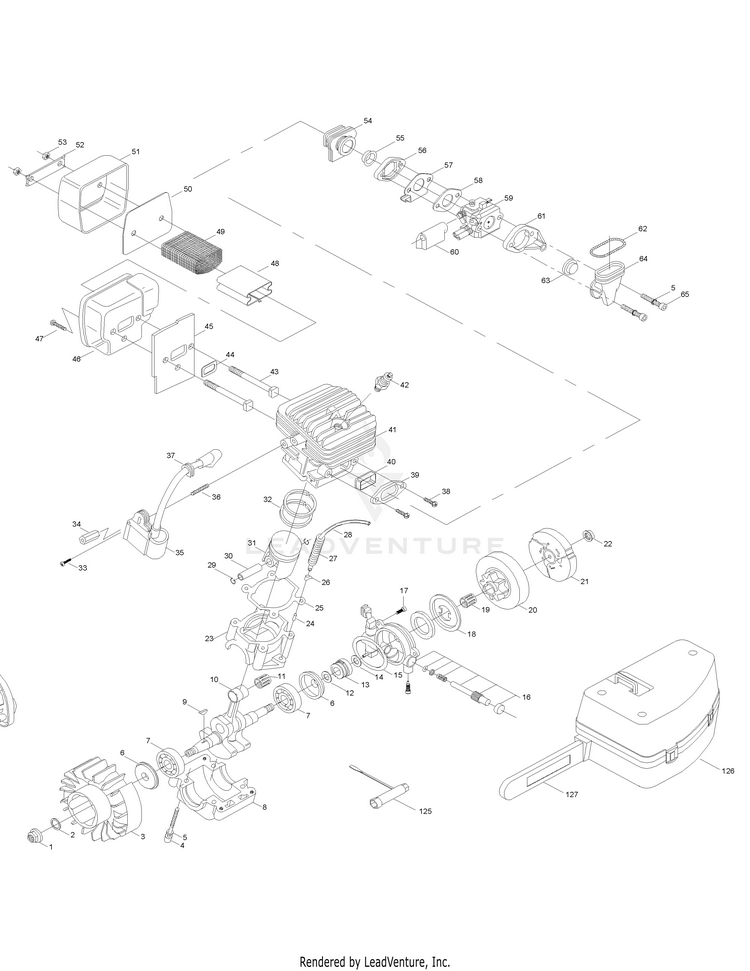

General Assembly 2

...
...
1
NUT MTD-MC-9NAB-516-24
...
2
WASHER MTD-MC-9WOC-08
...
3
SCREW 10/24-2.75 MTD-710-04505
...
4
SCREW MTD-MC-9SREB-1024-2.75
...
5
WASHER MTD-MC-9WFB-0.2
...
6
SEAL MTD-MC-9157-310201
...
7
BEARING MTD-MC-9DB-620201
...
8
CRANKCASE LOWER MTD-MC-9072-3102Y1F
...
9
KEY MTD-MC-9221-310001
...
10
SHAFT ROD ASSEMBLY MTD-MC-9228-310203A
...
11
BEARING MTD-MC-9155-310201
...
12
WASH MTD-MC-6014-M96A01
...
13
WORK GEAR MTD-MC-9073-310201
...
14
WASHER MTD-MC-9WFN-0.4
...
15
O-RING MTD-MC-9076-310201
...
16
SCREW 8/16-0.5 MTD-710-04493
...
17
SCREW MTD-MC-9SKKBY816-0.5
...
18
WASHER MTD-MC-9WDZ-0.722
...
19
BEARING MTD-MC-9155-310203
...
20
DRUM SPRKT ASS'Y MTD-MC-9228-310211
...
21
CLUTCH ASS'Y MTD-MC-9228-310210
...
22
NUT MTD-MC-9NHC-09
...
23
CRANKCASE-UPPER MTD-MC-9072-3102Y2F
...
24
FITTING-PULSE LINE MTD-MC-9124-310201
...
25
GASKET MTD-MC-9014-3102Y1
...
26
WIRE CLAMP HOSE MTD-MC-9036-310201
...
27
CONDUIT-FLEX MTD-MC-9059-310201
...
28
HOSE MTD-MC-9129-310004
...
29
RING MTD-MC-9CA-0.46
...
30
PIN MTD-MC-9PC-10-32.5
...
31
PISTON MTD-MC-9290-31C201
...
32
RING-PISTO MTD-MC-9189-31C201
...
33
SCREW 10-24-0.75 MTD-710-04491
...
34
SPACER MTD-MC-9124-310205
...
35
COIL-IGNITION 9288 MTD-725-04321
...
36
STUD MTD-MC-9191-310201
...
37
GROMMET MTD-MC-9012-330301
...
38
SCREW 10-24-0.75 MTD-710-04491
...
39
FLANGE MTD-MC-322649
...
40
EYELET MTD-MC-9131-310202
...
41
CYLINDER MTD-MC-9292-31C201F
...
42
SPARK PLUG MTD-MC-9295-320001
...
43
SCREW 10/24-2.75 MTD-710-04506
...
44
WASHER MTD-MC-9014-310208
...
45
BAFFLE-MUF MTD-MC-9082-310201
...
46
MUFFLER MTD-MC-9228-310217
...
47
SCREW 10/24-0.5 MTD-710-04549
...
48
PLATE-MUFF MTD-MC-9211-310201
...
49
SCREEN-MUF MTD-MC-9183-310201
...
50
BAFFLER-MU MTD-MC-9082-310205
...
51
COVER-MUFF MTD-MC-9017-310204
...
52
LOCKPLATE MTD-MC-9158-310201
...
53
NUT MTD-MC-9NAC-1024
...
54
BOOT-CARB MTD-MC-9124-310202
...
55
EYELET MTD-MC-9131-310203
...
56
FLANGE MTD-MC-9014-310204
...
57
PLATE MTD-MC-9102-310202
...
58
GASKET MTD-MC-9014-310202
...
59
CARBURETOR MTD-MC-9287-31C201
...
60
BOOT MTD-MC-9124-310203
...
61
FLANGE MTD-MC-9014-31C201
...
62
SPRING MTD-MC-9024-310202
...
63
EYELET MTD-MC-9131-310204
...
64
BOOT MTD-MC-9124-310204
...
65
SCREW 10/24-1.625 MTD-710-04503
...
66
SCREW 10/14-0.625 MTD-710-04547
...
67
STARTER ASS'Y MTD-MC-9228-310212
...
68
WASHER MTD-MC-9WFZ-0.18
...
69
CLIP MTD-MC-9223-310201
...
70
SCREEN MTD-MC-9183-310202
...
71
SCREW 10/24-1 MTD-710-04551
...
72
PLATE MTD-MC-9043-310201
...
73
SPACER MTD-MC-9124-310206
...
74
PRIMER MTD-MC-9142-310002
...
75
HOSE MTD-MC-9129-310214
...
76
FUEL CAP MTD-MC-9228-310206
...
77
FILTER MTD-MC-9182-310503
...
78
SCREW 10/14-01 MTD-710-04501
...
79
CAP-OIL MTD-MC-9228-310207
...
80
FUEL/OIL TANK ASS'Y MTD-MC-9228-310205
...
81
VALVE-DUCK MTD-MC-9070-310002
...
82
FUEL FILTER MTD-MC-6182-210101
...
83
HOSE MTD-MC-9129-310209
...
84
PLUG MTD-MC-9013-310201
...
85
FILTER MTD-MC-9252-310002
...
86
WASHER MTD-MC-9131-310206
...
87
SCREW MTD-MC-9214-310201
...
88
NUT MTD-MC-9035-310201
...
89
SCREW MTD-MC-9214-310101
...
90
PLATE-BAR MTD-MC-9043-310203
...
91
PLATE-FLAN MTD-MC-9043-310202
...
92
SCREW 6/19-0.3 MTD-710-04492
...
93
Chain 20" MTD-913-05044
...
94
BAR MTD-MC-9040-31A212
...
95
PLATE MTD-MC-9082-310204
...
96
BRAKE ASSEMBLY:CHAIN MTD-MC-9228-310215
...
97
NUT MTD-MC-9NAZ-516-18
...
98
PLATE MTD-MC-9072-310206
...
99
CHOKE ASSEMBLY MTD-MC-9228-31C201
...
100
CHOKE-ROD MTD-MC-9114-310202
...
101
PLUG MTD-MC-9013-310202
...
102
ISOLATOR ASSEMBLY MTD-MC-9228-310213
...
103
CABLE ASSEMBLY MTD-MC-9228-310214
...
104
SCREW 10-24-6.5 MTD-710-04490
...
105
FRAME-REAR MTD-MC-9068-310203
...
106
PLUG MTD-MC-9017-31C201
...
107
RELEASE-TRIGGER MTD-MC-9028-310201
...
108
TRIGGER MTD-MC-9028-310202
...
109
GROMMET MTD-MC-9124-310209
...
110
CABLE MTD-MC-9010-310201
...
111
SPRING MTD-MC-9024-310206
...
112
WASHER MTD-MC-9WFB-4.9-17
...
113
ISOLATER MTD-MC-9228-310222
...
114
WIRE MTD-MC-9010-310203
...
115
COVER ASSEMBLY MTD-MC-9228-310232
...
116
SCREW 8/16-0.6 MTD-710-04494
...
117
SCREW 8/16-1 MTD-710-04495
...
118
SCREW 12/14-1.5 MTD-710-04496
...
119
HANDLE ASSEMBLY MTD-MC-9228-310231
...
120
COVER ASS'Y MTD-9228-310216
...
121
SCREW 10/14-02 MTD-710-04504
...
122
SCREW 10/14-0.68 MTD-710-04548
...
123
CLEANER-AIR MTD-MC-9228-310204
...
124
AIR CLEANER COVER MTD-MC-9067-310202
...
125
WRENCH MTD-MC-9042-310201
...
126
CASE-CARRY MTD-MC-9120-310201
...
127
SCABBARD MTD-MC-9017-310213
