McCulloch MS2049AVCC 41CY09AS777 Gas Chainsaw

Model: MS2049AVCC 41CY09AS777 41CY09AS777 MS2049AVCC

Save Part Not Listed?
product name

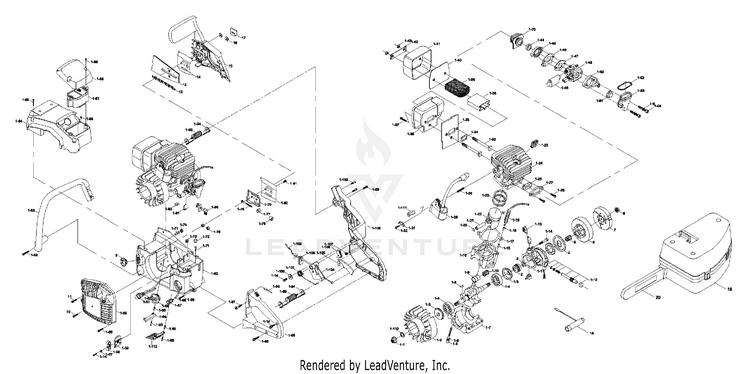

General Assembly

...
...
1
POWERHEAD ASS'Y MTD-MC-9238-31A201
...
1-1
NUT MTD-MC-9NAB-516-24
...
1-2
FLYWHEEL MTD-MC-9169-310201
...
1-3
SEAL MTD-MC-9157-310201
...
1-4
BEARING MTD-MC-9DB-620201
...
1-5
SCREW MTD-MC-9SREB-1024-2.75
...
1-6
WASHER MTD-MC-9WFB-0.2
...
1-7
CRANK CASE MTD-MC-9072-310201
...
1-8
KEY MTD-MC-9221-310001
...
1-9
SHAFT ASSEMBLY-CRANK MTD-MC-9228-310203F
...
1-10
BEARING MTD-MC-9155-310201
...
1-11
O-RING MTD-MC-9076-310201
...
1-12
PUMP ASS'Y MTD-MC-9228-310208
...
1-13
CONNECTOR MTD-MC-9154-310201
...
1-14
SCREW MTD-MC-9SKKBY816-0.5
...
1-15
FITTING-PULSE LINE MTD-MC-9124-310201
...
1-16
CRANKCASE-UPPER MTD-MC-9072-310202
...
1-17
GASKET MTD-MC-9014-310212
...
1-18
WIRE CLAMP HOSE MTD-MC-9036-310201
...
1-19
CONDUIT-FLEX MTD-MC-9059-310201
...
1-20
RING MTD-MC-9CA-0.46
...
1-21
PIN MTD-MC-9PC-10-32.5
...
1-22
PISTON MTD-MC-9290-310201
...
1-23
RING-PISTON MTD-MC-9189-310201
...
1-24
CYLINDER MTD-MC-9292-310201
...
1-25
SPARK PLUG MTD-MC-9295-320001
...
1-26
SCREW MTD-MC-9SKKBY1024-0.62
...
1-27
FLANGE MTD-MC-9014-310203
...
1-28
EYELET MTD-MC-9131-310202
...
1-29
IGNITION ASS'Y MTD-MC-9288-310201-CH
...
1-30
STUD MTD-MC-9191-310201
...
1-31
CONTACT MTD-MC-9051-310202
...
1-32
SCREW MTD-MC-9SKKBY1024-0.75
...
1-33
SCREW MTD-MC-9STDZY1024-2.79
...
1-34
WASHER MTD-MC-9014-310208
...
1-35
BAFFLE-MUF MTD-MC-9082-310201
...
1-36
MUFFLER MTD-MC-9228-310217
...
1-37
SCREW MTD-MC-9SKKBY1024-0.5
...
1-38
PLATE-MUFF MTD-MC-9211-310201
...
1-39
SCREEN-MUF MTD-MC-9183-310201
...
1-40
BAFFLER-MU MTD-MC-9082-310205
...
1-41
COVER-MUFF MTD-MC-9017-310204
...
1-42
LOCKPLATE MTD-MC-9158-310201
...
1-43
NUT MTD-MC-9NAC-1024
...
1-44
EYELET MTD-MC-9131-310203
...
1-45
FLANGE MTD-MC-9014-310204
...
1-46
PLATE MTD-MC-9102-310202
...
1-47
GASKET MTD-MC-9014-310202
...
1-48
BOOT MTD-MC-9124-310203
...
1-49
CARBURETOR MTD-MC-9287-310201
...
1-50
FLANGE MTD-MC-9014-310201
...
1-51
EYELET MTD-MC-9131-310204
...
1-52
SPRING MTD-MC-9024-310202
...
1-53
BOOT MTD-MC-9124-310204
...
1-54
SCREW MTD-MC-9SREB-1024-1.625
...
1-55
STARTER ASS'Y MTD-MC-9228-310212
...
1-56
SCREW MTD-MC-9SKKBY1014-0.625
...
1-57
WASHER MTD-MC-9WFZ-0.18
...
1-58
CLIP MTD-MC-9223-310201
...
1-59
SCREEN MTD-MC-9183-310202
...
1-60
FUEL/OIL TANK ASS'Y MTD-MC-9228-310205
...
1-61
PRIMER MTD-MC-9142-310002
...
1-62
HOSE REMOT MTD-MC-9129-310002
...
1-63
SCREW MTD-MC-9SKKBY1024-1
...
1-64
PLATE MTD-MC-9043-310201
...
1-65
SPACER MTD-MC-9124-310206
...
1-66
FUEL CAP MTD-MC-9228-310206
...
1-67
FILTER MTD-MC-9182-310001
...
1-68
HOSE MTD-MC-9129-310004
...
1-69
SCREW MTD-MC-9SKKZY1014-01
...
1-70
BOOT-CARB MTD-MC-9124-310202
...
1-71
VALVE-DUCK MTD-MC-9070-310002
...
1-72
HOSE MTD-MC-9129-310209
...
1-73
PLUG MTD-MC-9013-310201
...
1-74
FILTER MTD-MC-9252-310002
...
1-75
WASHER MTD-MC-9131-310206
...
1-76
ISOLATOR MTD-MC-9059-310204
...
1-77
NUT MTD-MC-9035-310201
...
1-78
SCREW MTD-MC-9214-310201
...
1-79
PLATE-BAR MTD-MC-9043-310203
...
1-80
PLATE-FLAN MTD-MC-9043-310202
...
1-81
SCREW MTD-MC-9SKKBY619-0.375
...
1-82
SCREW MTD-MC-9SJKB-1214-1.5
...
1-83
HANDLE ASSEMBLY MTD-MC-9228-310231
...
1-84
COVER ASS'Y MTD-MC-9228-310216
...
1-85
SCREW MTD-MC-9SKKBY1014-02
...
1-86
SCREW MTD-MC-9SKKBY1014-0.68
...
1-87
CLEANER-AIR MTD-MC-9228-310204
...
1-88
AIR CLEANER COVER MTD-MC-9067-310202
...
1-89
SCREW MTD-MC-9214-310101
...
1-90
CHOKE ASSEMBLY MTD-MC-9228-310242
...
1-91
CHOKE-ROD MTD-MC-9114-310202
...
1-92
PLUG MTD-MC-9013-310202
...
1-93
ISOLATOR ASSEMBLY MTD-MC-9228-310213
...
1-94
CABLE ASSEMBLY MTD-MC-9228-310214
...
1-95
COVER ASSEMBLY MTD-MC-9228-310232
...
1-96
SCREW MTD-MC-9SKKBY816-0.625
...
1-97
SCREW MTD-MC-9SKKBY-816-1
...
1-98
WIRE MTD-MC-9010-310203
...
1-99
ISOLATER MTD-MC-9228-310222
...
1-100
WASHER MTD-MC-9WFB-4.9-17
...
1-101
SPRING MTD-MC-9024-310206
...
1-102
CABLE MTD-MC-9010-310201
...
1-103
GROMMET MTD-MC-9124-310209
...
1-104
TRIGGER MTD-MC-9028-310202
...
1-105
RELEASE-TRIGGER MTD-MC-9028-310201
...
1-106
LATCH-HIGH IDLE MTD-MC-9072-310203
...
1-107
SPRING MTD-MC-9024-310207
...
1-108
FRAME-REAR MTD-MC-9068-310203
...
1-109
SCREW MTD-MC-9SGKBY1024-0.5
...
1-110
WASHER MTD-MC-9WOC-08
...
1-111
SPACER MTD-MC-9124-310205
...
1-112
PLATE MTD-MC-9043-310205
...
2
WORK GEAR MTD-MC-9073-310201
...
3
WASHER MTD-MC-9WFN-0.4
...
4
WASHER MTD-MC-9WDZ-0.722
...
5
BEARING MTD-MC-9155-310203
...
6
DRUM SPRKT ASS'Y MTD-MC-9228-310211
...
7
CLUTCH ASS'Y MTD-MC-9228-310210
...
8
NUT MTD-MC-9NHC-09
...
9
CAP-OIL MTD-MC-9228-310207
...
10
SCREW MTD-MC-9SKKBY1014-0.625
...
11
SCREW MTD-MC-9SKKBY1024-0.5
...
12
CHAIN MTD-MC-9220-31B202
...
xx
Chain 20" MTD-913-05044
...
13
BAR (MS1846AVCC) MTD-MC-9040-31A211
...
xx
BAR (MS2046AVCC/MS2049AVCC) MTD-MC-9040-31A212
...
14
PLATE MTD-MC-9082-310204
...
15
BRAKE ASSEMBLY:CHAIN MTD-MC-9228-310215
...
16
NUT MTD-MC-9NAZ-516-18
...
17
PLATE MTD-MC-9072-310206
...
18
WRENCH MTD-MC-9042-310201
...
19
CASE-CARRY MTD-MC-9120-310201
...
20
SCABBARD MTD-MC-9017-310213
