McCulloch MS2049AVCC 41AY09AS077 Gas Chainsaw

Model: MS2049AVCC 41AY09AS077 41AY09AS077 MS2049AVCC

Back To Assemblies

Save Part Not Listed?
product name

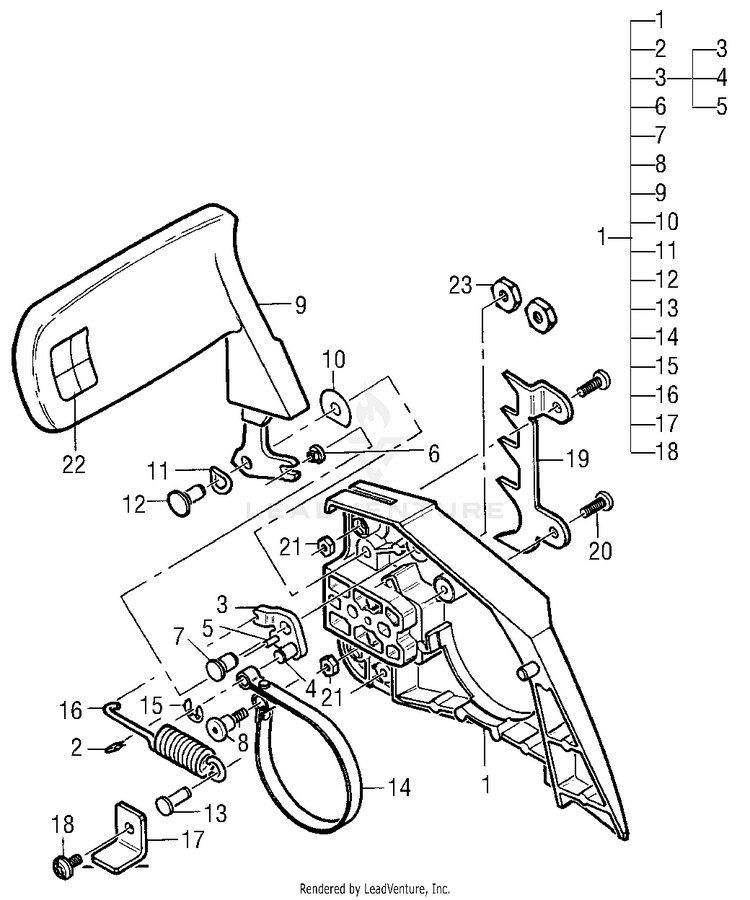

Chain Brake Assembly

...
...
1
CHAIN BRAKE, INERTIA (YELLOW) MTD-MC-300723-00
...
2
Clip, "U" MTD-MC-110737-00
...
3
Latch Asy, Chain Brake MTD-NA
...
4
Pin, Brake Band MTD-NA
...
5
Pin, Latch MTD-NA
...
6
Slider MTD-NA
...
7
Pivot, Latch MTD-NA
...
8
SCREW 10/24-0.5 MTD-710-04557
...
9
Flat, Brake MTD-NA
...
10
Washer, "D" MTD-NA
...
11
Washer, Spring MTD-NA
...
12
Lever Pivot MTD-NA
...
13
Pin, Spring Hook MTD-NA
...
14
BAND BRAKE MTD-MC-323537-00
...
15
RING-RETAI MTD-MC-218079-00
...
16
SPRING-CHA MTD-MC-217440-00
...
17
STOP CHAIN MTD-MC-218641-00
...
18
SCREW 10-24-0.75 MTD-710-04491
...
19
FS SPIKE MC-AO9227 MTD-753-05118
...
20
SCREW 10/24-0.375 MTD-710-04538
...
21
NUT MTD-MC-218315-00
...
22
Label, Safety MTD-MC-219058-00
...
23
NUT MTD-MC-322885-00
