McCulloch MS2049AVCC 41AY09AS077 Gas Chainsaw

Model: MS2049AVCC 41AY09AS077 41AY09AS077 MS2049AVCC

Back To Assemblies

Save Part Not Listed?
product name

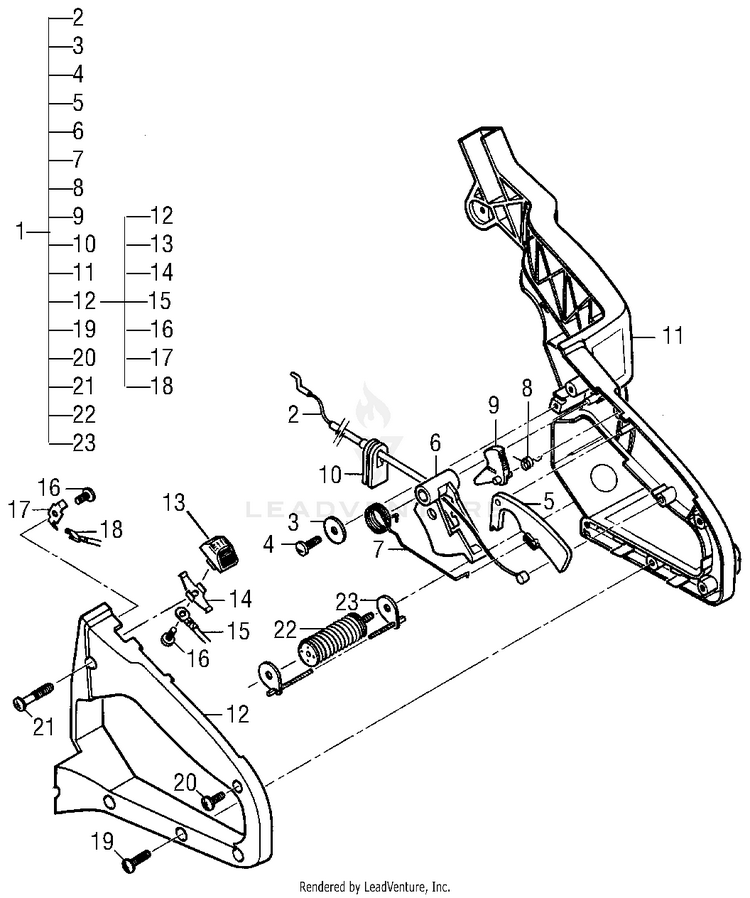

Rear Handle Assembly

...
...
1
COVER ASSEMBLY MTD-MC-301916-00
...
2
CABLE MTD-MC-300727-00
...
3
WASHER MTD-MC-300297-00
...
4
SCREW 8/16-0.5 MTD-710-04493
...
5
LATCH-HIGH MTD-MC-322870-00
...
6
TRIGGER MTD-MC-322869-00
...
7
SPRING MTD-MC-9024-310206
...
8
SPRING MTD-MC-322876-00
...
9
LATCH-HIGH IDLE MTD-MC-9072-310203
...
10
GROMMET-THROTTLE MTD-MC-322878-00
...
11
FRAME-REAR MTD-MC-322670-00
...
12
COVER ASSEMBLY MTD-MC-301397-00
...
13
BUTTON-STOP SWITCH MTD-MC-224245-00
...
14
Contact, Ignition Switch MTD-MC-62451-00
...
15
WIRE ASSEMBLY MTD-MC-322851-00
...
16
SCREW 8/16-.375 MTD-710-04539
...
17
Contact, Ground MTD-MC-322881-00
...
18
Wire, Ground Asy MTD-MC-322852-00
...
19
SCREW 8/16-0.6 MTD-710-04494
...
20
SCREW 8/16-0.5 MTD-710-04493
...
21
SCREW:9SKKBY-8/ MTD-MC-300299-00
...
22
ISOLATOR A MTD-MC-301417-00
...
23
CABLE ASSEMBLY MTD-MC-323344-00
