McCulloch MS2049AVCC 41AY09AS077 Gas Chainsaw

Model: MS2049AVCC 41AY09AS077 41AY09AS077 MS2049AVCC

Back To Assemblies

Save Part Not Listed?
product name

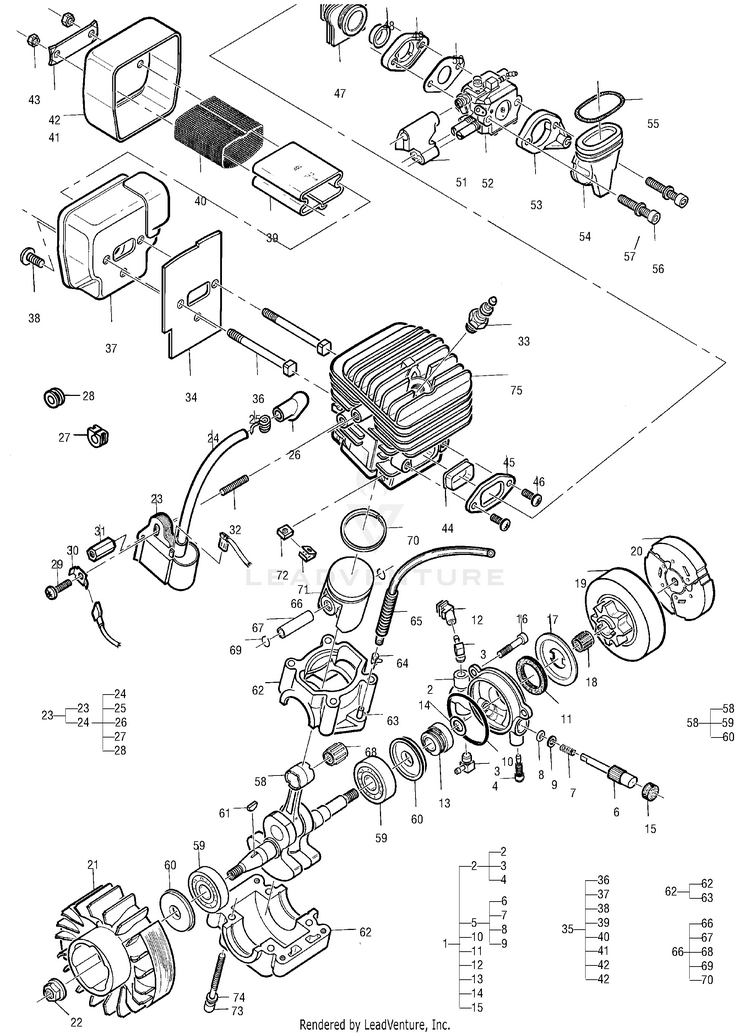

Powerhead Assembly

...
...
1
KIT OIL PU MTD-MC-301912-00
...
2
Pump Asy, Oil MTD-NA
...
3
Fitting MTD-MC-322182-00
...
4
Screw, Adj MTD-MC-322635-00
...
5
KIT, GEAR/PLUNGER ASY MTD-MC-301913-00
...
6
Piston/Gear Asy MTD-NA
...
7
Spring, Comp MTD-NA
...
8
O-ring MTD-NA
...
9
WASHER MTD-MC-110582-00
...
10
O-RING, 1.625X.06 MTD-MC-111162-00
...
11
WASHER-FELT MTD-MC-323435-00
...
12
CONNECTOR MTD-MC-322864-00
...
13
GEAR, WORM MTD-MC-322662-00
...
14
WASHER MTD-MC-322884-00
...
15
SEAL-FELT MTD-MC-323126-00
...
16
SCREW 8/16-0.44 MTD-710-04554
...
17
WASHER MTD-MC-322856-00
...
18
BEARING MTD-MC-111104-00
...
19
DRUM/SPROCKET ASY, .325X8T MTD-MC-301338-00
...
20
CLUTCH ASSEMBLY MC-922 MTD-MC-300726-01
...
20
CLUTCH ASS'Y MTD-MC-9228-310210
...
21
FLYWHEEL MTD-MC-322848-00
...
22
NUT MTD-MC-110961-00
...
23
IGNITION ASY MTD-MC-301759-00
...
24
COIL-IGNIT MTD-MC-223884-00
...
25
Connector, Spark MTD-MC-102556-00
...
26
Boot, Spark Plug MTD-MC-95266-00
...
27
Grommet, H/T Lead Not used MTD-MC-215533-01-00
...
28
Grommet, S/Plug Wire Not used MTD-MC-110995-00
...
29
SCREW 10-24-0.75 MTD-710-04491
...
30
Contact, Ground MTD-MC-322881-00
...
31
SPACER NUT MTD-MC-322854-00
...
32
STUD MTD-MC-322855-00
...
33
SPARK PLU MTD-MC-92879-00
...
34
BAFFLE-MUF MTD-MC-322853-00
...
35
MUFFLER ASSEMBLY MTD-MC-300923-00
...
36
Screw, Muffler MTD-MC-300720-00
...
37
Body Asy, Muffler MTD-NA
...
38
SCREW 10/24-0.5 MTD-710-04549
...
39
Baffle, Muffler MTD-NA
...
40
SCREEN, SPARK ARRESTER MTD-MC-300719-00
...
41
Body, Muffler, Outer MTD-NA
...
42
LOCK PLATE MTD-MC-301609-00
...
43
Nut, 10-24 Hex Lock MTD-MC-216649-00
...
44
EYELET MTD-MC-9131-310202
...
45
FLANGE MTD-MC-9014-310203
...
46
Screw, 10-24x.62 Tr Hd Torx MTD-MC-219881-00
...
47
BOOT-CARB MTD-MC-322648-00
...
48
EYELET MTD-MC-322656-00
...
49
FLANGE MTD-MC-9014-310204
...
50
GASKET MTD-MC-9014-310202
...
51
BOOT MTD-MC-9124-310203
...
52
Carburetor Asy SEE "Carburetor Assembly" MTD-NA
...
53
FLANGE MTD-MC-9014-310201
...
54
BOOT MTD-MC-9124-310204
...
55
SPRING-GARTER MTD-MC-322654-00
...
56
SCREW 10/24-1.625 MTD-710-04503
...
57
WASHER MTD-MC-216635-00
...
58
C'shaft/Con Rod/Bearing Asy MTD-NA
...
59
BEARING-BA MTD-MC-215946-00
...
60
SEAL MTD-MC-9157-310201
...
61
KEY, FLYWHEEL MTD-MC-102164-00
...
62
Crankcase/Fitting Asy 11600465-00; 11-00600465-02; 11600465-07; 11600465-09; 11600465-01; 11600465-03; 11600465-08; 11600465-12 MTD-NA
...
63
Fitting, Pulse Line MTD-NA
...
64
Clamp, Wire, Hose 1/4" MTD-MC-323395-01
...
65
CONDUIT-FLEX MTD-MC-9059-310201
...
66
Piston Asy, 46cc MTD-NA
...
66
Piston Asy, 49cc 11600465-09; 11600465-12; 11600498-13 MTD-NA
...
67
Pin, Piston 11600498-01; 11600498-03; 11600498-08; 11600498-13; 11600498-02; 11600498-04; 11600498-09 MTD-NA
...
68
Bearing, Piston Pin MTD-NA
...
69
Ring, Retaining MTD-NA
...
70
Ring, Piston, 46cc MTD-NA
...
70
Ring, Piston, 49cc MTD-NA
...
71
NUT - RETAINER MTD-MC-9014-310001
...
72
NUT MTD-MC-218005-00
...
73
SCREW, 10-24X2.75 TORX MTD-MC-111095-00
...
74
WASHER MTD-MC-216683-00
...
75
SHORT BLOCK MTD-MC-301926-00
