product name

McCulloch MS2049AVCC 41AY09AS077 Gas Chainsaw

Model: MS2049AVCC 41AY09AS077 41AY09AS077 MS2049AVCC

Back To Assemblies

Save Part Not Listed?
product name

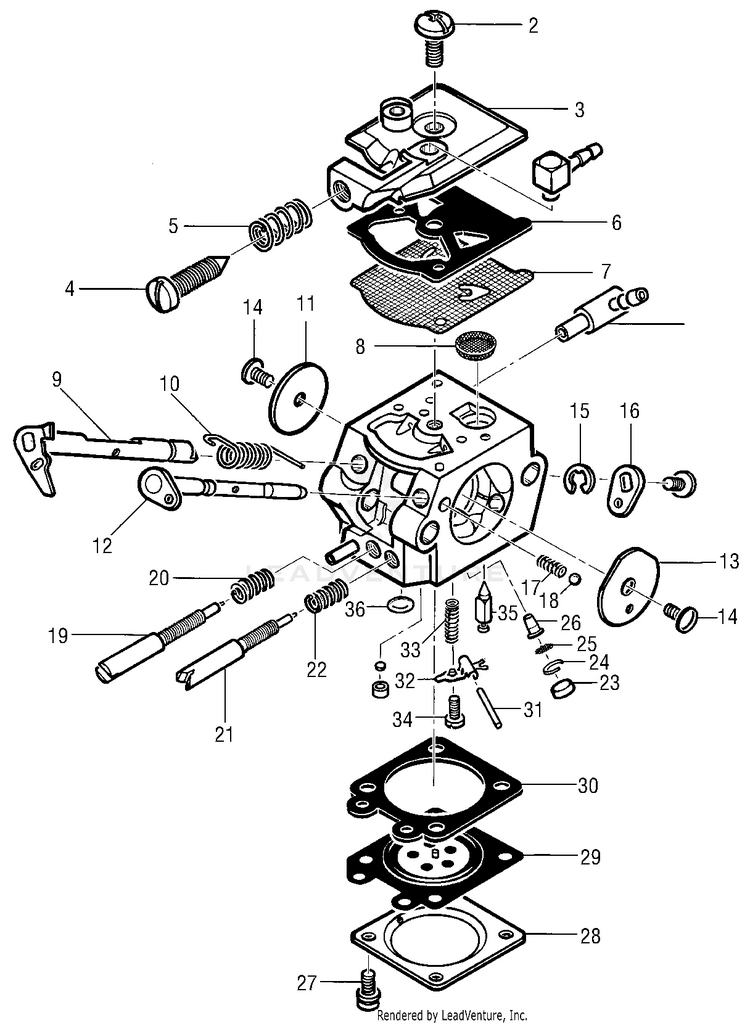

Carburetor Assembly

...
...
xx
CARBURETOR MTD-MC-322657-02
...
1
Screw, Pump Cover MTD-NA
...
2
Cover, Fuel Pump MTD-NA
...
3
Screw, Idle Adjustment MTD-NA
...
4
Spring MTD-NA
...
5
Gasket, Fuel Pump 325520 - Kit, Carburetor Repair, Walbro (A1137WT); 301042 - Kit, Gasket/Diaphragm, Walbro (B1110WT) MTD-NA
...
6
Diaphragm, Fuel Pump 325520 - Kit, Carburetor Repair, Walbro (A1137WT); 301042 - Kit, Gasket/Diaphragm, Walbro (B1110WT) MTD-NA
...
7
Screen Fuel Inlet 325520 - Kit, Carburetor Repair, Walbro (A1137WT) MTD-NA
...
8
Shaft Asy, Throttle MTD-NA
...
9
Spring, Throttle Return MTD-NA
...
10
Shutter, Throttle MTD-NA
...
11
Shaft Asy, Choke MTD-NA
...
12
Shutter, Choke MTD-NA
...
13
Screw, Shutter and Choke MTD-NA
...
14
Ring, Shaft Retainer MTD-NA
...
15
Lever, Throttle MTD-NA
...
16
Spring, Choke Friction MTD-NA
...
17
Ball, Choke Friction MTD-NA
...
18
Plug MTD-NA
...
19
Ring, Screen Retainer MTD-NA
...
20
Screen, Check Valve MTD-NA
...
21
Seat Asy, Check Valve MTD-NA
...
22
Screw, Metering Cover MTD-NA
...
23
Cover, Metering Diaphragm MTD-NA
...
24
Diaphragm Asy, Metering 325520 - Kit, Carburetor Repair, Walbro (A1137WT); 301042 - Kit, Gasket/Diaphragm, Walbro (B1110WT) MTD-NA
...
25
Gasket, Metering Diaphragm 325520 - Kit, Carburetor Repair, Walbro (A1137WT); 301042 - Kit, Gasket/Diaphragm, Walbro (B1110WT) MTD-NA
...
26
Pin, Metering Lever 325520 - Kit, Carburetor Repair, Walbro (A1137WT) MTD-NA
...
27
Lever, Metering 325520 - Kit, Carburetor Repair, Walbro (A1137WT) MTD-NA
...
28
Spring, Metering Lever MTD-NA
...
29
Screw, Metering Lever Pin MTD-NA
...
30
Valve, Inlet Needle 325520 - Kit, Carburetor Repair, Walbro (A1137WT) MTD-NA
...
31
Plug, Welch 325520 - Kit, Carburetor Repair, Walbro (A1137WT) MTD-NA
...
32
Plug, Welch MTD-NA
...
33
Nozzle Asy, Check Valve MTD-NA
...
34
O-ring, High Needle MTD-NA
...
35
Washer, High Needle MTD-NA
...
36
Needle, Idle MTD-NA
...
37
Spring, Idle Needle MTD-NA
...
38
Needle, High MTD-NA
...
39
Spring, High Needle MTD-NA
...
40
Limiter Cap, High Speed MTD-NA
...
41
Limiter Cap, Low Speed MTD-NA
...
42
Retainer, Limiter MTD-NA
