McCulloch MS2049AV 41AY09AG077 Gas Chainsaw

Model: MS2049AV 41AY09AG077 41AY09AG077 MS2049AV

Back To Assemblies

Save Part Not Listed?
product name

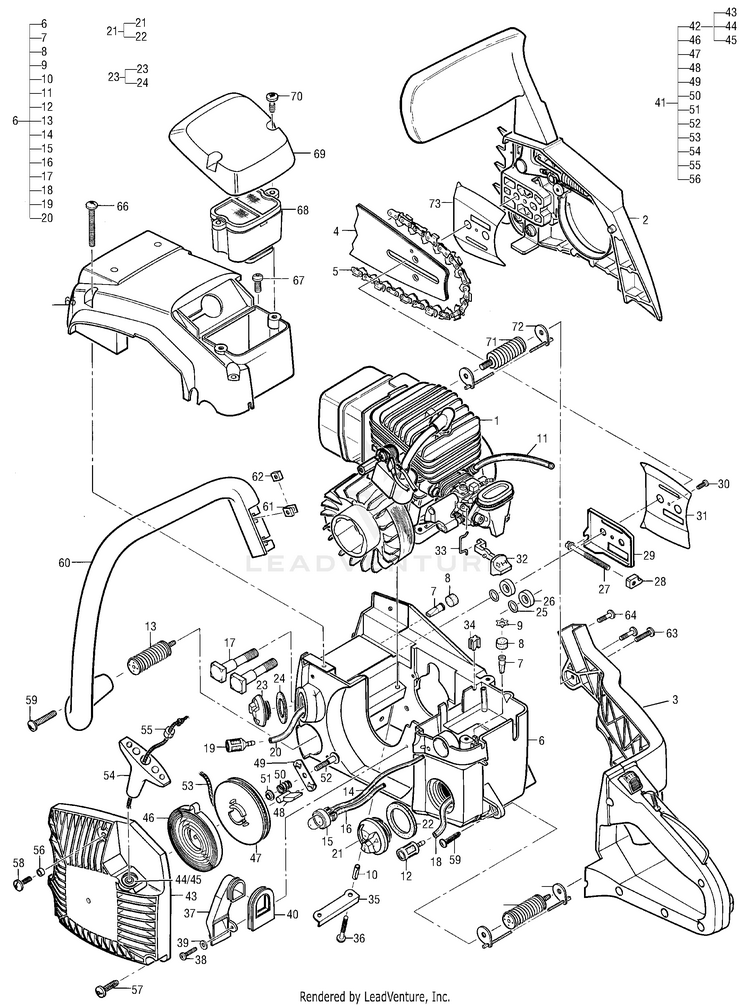

General Assembly

...
...
1
Powerhead Asy SEE "Powerhead Assembly" MTD-NA
...
2
Chain Brake Asy SEE "Chain Brake Assembly" MTD-NA
...
3
Rear Handle Asy SEE "Rear Handle Assembly" MTD-NA
...
4
Bar Information SEE "Bar And Chain Information" MTD-NA
...
5
Chain Information SEE "Bar And Chain Information" MTD-NA
...
6
FUEL/OIL TANK ASS'Y MTD-MC-9228-310205
...
7
VALVE-DUCK MTD-MC-322199-00
...
8
FILTER MTD-MC-300259-00
...
9
VENT-RETAINER MTD-MC-9014-310205
...
10
SPACER MTD-MC-322883-00
...
11
HOSE-PULSE MTD-MC-322647-00
...
12
Pickup, Fuel MTD-MC-300869-00
...
13
ISOLATOR A MTD-MC-301417-00
...
14
Hose, Fuel MTD-MC-322860-00
...
15
PRIMER, REMOTE MTD-MC-224242-02
...
16
HOSE 4.25 MTD-MC-322861-00
...
17
BAR BOLT 5/16-18 MTD-710-04535
...
18
HOSE, OIL MTD-MC-218480-00
...
19
Pickup, Oil MTD-MC-225062-00
...
20
Hose, Fuel/Oil MTD-MC-322867-00
...
21
FUEL CAP MTD-MC-9228-310206
...
22
Gasket MTD-NA
...
23
CAP-OIL MTD-MC-300917-00
...
24
Gasket, Oil Cap MTD-NA
...
25
O-Ring, .013 11600465-00; 11600465-02; 11600465-09; 11600498-01; 11600498-03; 11600498-13; 11600465-01; 11600465-07; 11600465-12; 11600498-02; 11600498-08 MTD-MC-111142-00
...
26
WASHER 11600465-00; 11600465-02; 11600465-09; 11600498-01; 11600498-03; 11600498-13; 11600465-01; 11600465-07; 11600465-12; 11600498-02; 11600498-08 MTD-MC-322658-00
...
27
BAR ADJ SCREW NUT & RING MTD-MC-520001-33
...
28
Nut, Bar Adjusting MTD-NA
...
29
PLATE-BAR MTD-MC-9043-310203
...
30
SCREW 6/19-0.3 MTD-710-04492
...
31
PLATE-BAR MTD-MC-301612-00
...
32
LEVER, CHOKE MTD-MC-322880-00
...
33
ROD, CHOKE MTD-MC-300728-00
...
34
PLUG MTD-MC-323339-00
...
35
PLATE-FLAN MTD-MC-301615-00
...
36
SCREW MTD-MC-217937-00
...
37
PRECLEANER ASY MTD-MC-322665-00
...
38
SCREW 8/16-0.50 MTD-710-04541
...
39
WASHER MTD-MC-105976-00
...
40
BOOT-INTAK MTD-MC-322666-00
...
41
STARTER ASY (YELLOW) 11600465-00; 11600465-02; 11600465-09; 11600498-01; 11600498-03; 11600498-13; 11600465-01; 11600465-07; 11600465-12; 11600498-02; 11600498-08; 11600465-03; 11600498-04 MTD-MC-300226-00
...
42
HOUSING-ROPE/G MTD-MC-301914-00
...
43
Housing, Starter (Yellow) MTD-NA
...
44
Rope Guide MTD-NA
...
45
Tube, Rope Guide MTD-NA
...
46
SPRING ASY, PACKAGE MTD-MC-300475-00
...
47
PULLEY, STARTER MTD-MC-300228-00
...
48
PAWL, STARTER MTD-MC-300229-00
...
49
PLATE-STAR MTD-MC-300230-00
...
50
FRICTION SPRING MTD-MC-9024-310204
...
51
SPACER MTD-MC-300232-00
...
52
SCREW, SHOULDER MTD-MC-300233-00
...
53
ROPE-START MTD-MC-300234-00
...
54
HANDLE-STARTER MTD-MC-87851-00
...
55
BUSHING, STARTER MTD-MC-223944-00
...
56
SPACER MTD-MC-9124-310208
...
57
SCREW, 10-14X.625 TORX MTD-MC-111111-00
...
58
SCREW 10/24-0.5 MTD-710-04549
...
59
SCREW 10/14-1.375 MTD-710-04293
...
60
HANDLE ASSEMBLY MTD-MC-9228-310231
...
61
NUT - RETAINER MTD-MC-9014-310001
...
62
NUT MTD-MC-218005-00
...
63
SCREW 10/14-01 MTD-710-04501
...
64
SCREW 10-24-6.5 MTD-710-04490
...
65
COVER ASSEMBLY- 11600465-00; 11600465-02; 11600465-09; 11600498-01; 11600498-03; 11600498-13; 11600465-01; 11600465-07; 11600465-12; 11600498-02; 11600498-08; 11600465-08; 11600498-09 MTD-MC-301419-00
...
66
SCREW 10/24-02 MTD-710-04550
...
67
SCREW 10/14-0.68 MTD-710-04548
...
68
AIR CLEANE MTD-MC-300922-00
...
69
AIR CLEANER COVER 11600465-00; 11600465-02; 11600465-09; 11600498-01; 11600498-03; 11600498-13; 11600465-01; 11600465-07; 11600465-12; 11600498-02; 11600498-08; 11600465-08; 11600498-09 MTD-MC-9067-310202
...
70
SCREW MTD-MC-111099-00
...
71
Isolator Asy MTD-MC-302416-00
...
72
CABLE ASSEMBLY MTD-MC-323344-00
...
73
PLATE, FLANGE MTD-MC-325172-00
