McCulloch MS2003 24B-405C777 Chipper-Shredder & Vac

Model: MS2003 24B-405C777 24B-405C777 MS2003

Save Part Not Listed?
product name

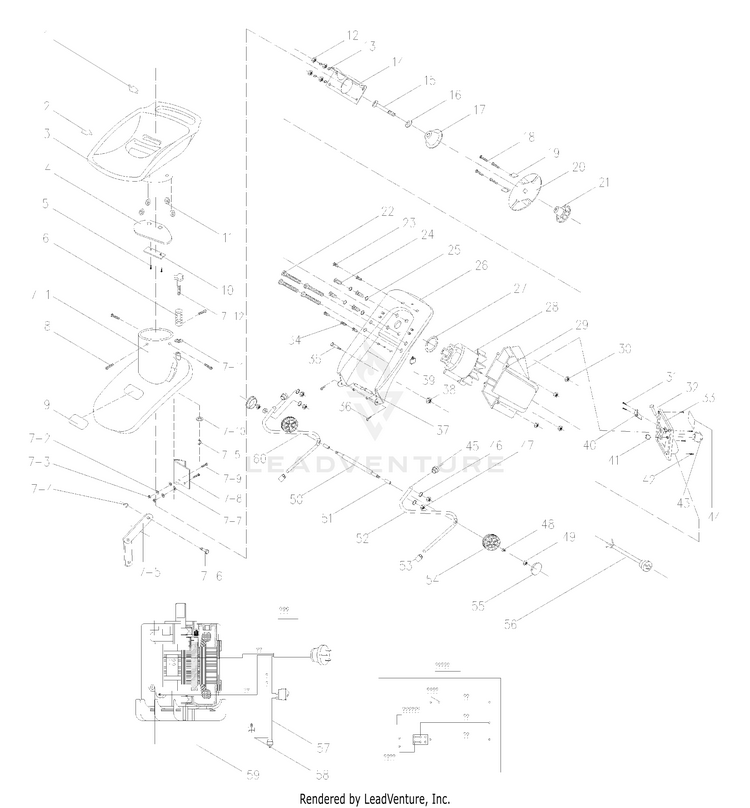

Shredder

...
...
1
LABEL (BRANCH) MTD-MC-6052-200103
...
2
LABEL (LEAVES) MTD-MC-6052-200101
...
3
HOPPER TOP MTD-MC-6266-200301
...
4
DUST PLATE MTD-MC-6263-200301
...
5
SCREW MTD-MC-6SLABA4.8-19
...
6
SPRING MTD-MC-6024-200301
...
7
HOUSING ASS'Y MTD-MC-6228-200301
...
7-1
HOUSING MTD-MC-6038-200301
...
7-2
WASHER MTD-MC-6WFB-05
...
7-3
NUT MTD-MC-6NAB-05
...
7-4
E-RING MTD-MC-6CE-06
...
7-5
DRAW BAR MTD-MC-6114-200301
...
7-6
PIN MTD-MC-6115-200301
...
7-7
WASH:SPR MTD-MC-6WSB-05
...
7-8
PLATE MTD-MC-6201-200301
...
7-9
SCREW MTD-MC-6SVAB-05-15
...
7-10
WASHER MTD-MC-6WFB-08
...
7-11
SEAT SPRIN MTD-MC-6130-200301
...
7-12
KNOB MTD-MC-6134-200301
...
8
SCREW MTD-MC-6STBBM05-15
...
9
LABEL MTD-MC-6097-200301
...
10
PRESSURE PLATE MTD-MC-6158-200201
...
11
NUT MTD-MC-6200-200101
...
12
NUT MTD-MC-6NAB-08
...
13
WASHER-SPR MTD-MC-6WSB-08
...
14
FIXED SEAT MTD-MC-6072-200301
...
15
SCREW MTD-MC-6SXDZ-10-25
...
16
WASHER MTD-MC-6WFB-10
...
17
FIXED CAP MTD-MC-6035-200301
...
18
SCREW MTD-MC-6200-200002
...
19
CUTTER MTD-MC-6250-200001
...
20
CUTTER HEAD MTD-MC-6268-200301
...
21
BUSHING MTD-MC-6124-200301
...
22
SCREW MTD-MC-6200-200102
...
23
SCREW MTD-MC-6SVAB-05-15
...
24
SCREW MTD-MC-6200-200001
...
25
WASHER-SPR MTD-MC-6WDB-08
...
26
SUPPORTING PLATE MTD-MC-6207-200301
...
27
WASHER MTD-MC-6014-200303
...
28
MOTOR MTD-MC-6099-200302
...
29
MOTOR CASI MTD-MC-6121-200301
...
30
NUT MTD-MC-6NAB-05
...
31
SCREW MTD-MC-6SDABB04-12
...
32
GUARD-CORD MTD-MC-6199-200002
...
33
SWITCHBOAR MTD-MC-6028-200301
...
34
SCREW MTD-MC-6SVAB-05-10
...
35
BOLT MTD-MC-6191-200301
...
36
PIN MTD-MC-6PB1.6-20Z
...
37
PIN MTD-MC-6210-200301
...
38
NUT MTD-MC-6NGB-06
...
39
SWITCH-CUT OUT MTD-MC-6022-200001
...
40
STRAIN REL MTD-MC-6043-200301
...
41
THERMOSTAT MTD-MC-6272-200002
...
42
SCREW MTD-MC-6SDABB04-18
...
43
SWITCH-ON/OFF MTD-MC-6022-200002
...
44
LABEL MTD-MC-6097-200302
...
45
RUBBER WASHER MTD-MC-6012-200301
...
46
WASHER MTD-MC-6014-200301
...
47
NUT MTD-MC-6NAB-08
...
48
WASHER MTD-MC-6WFB-10
...
49
NUT MTD-MC-6NAC-10
...
50
CONNECTING ROD MTD-MC-6111-200301
...
51
TUBE MTD-MC-6059-200301
...
52
SUPPORT LFT MTD-MC-6269-200301
...
53
RUBBER MAT MTD-MC-6027-200301
...
54
WHEEL MTD-MC-6137-200301
...
55
WHEEL CAP MTD-MC-6017-205002
...
56
POWER CORD MTD-MC-6011-200304
...
57
WIRE MTD-MC-6010-200209
...
58
WIRE MTD-MC-6010-200303
...
59
WIRE MTD-MC-6010-200301
...
60
SUPPORT RT MTD-MC-6269-200302
